14AQ81RP848 (GT 2200) - Toro Garden Tractor (2009) SEAT, FENDER AND DECK LIFT ASSEMBLY Parts Diagram

Garden Tractor

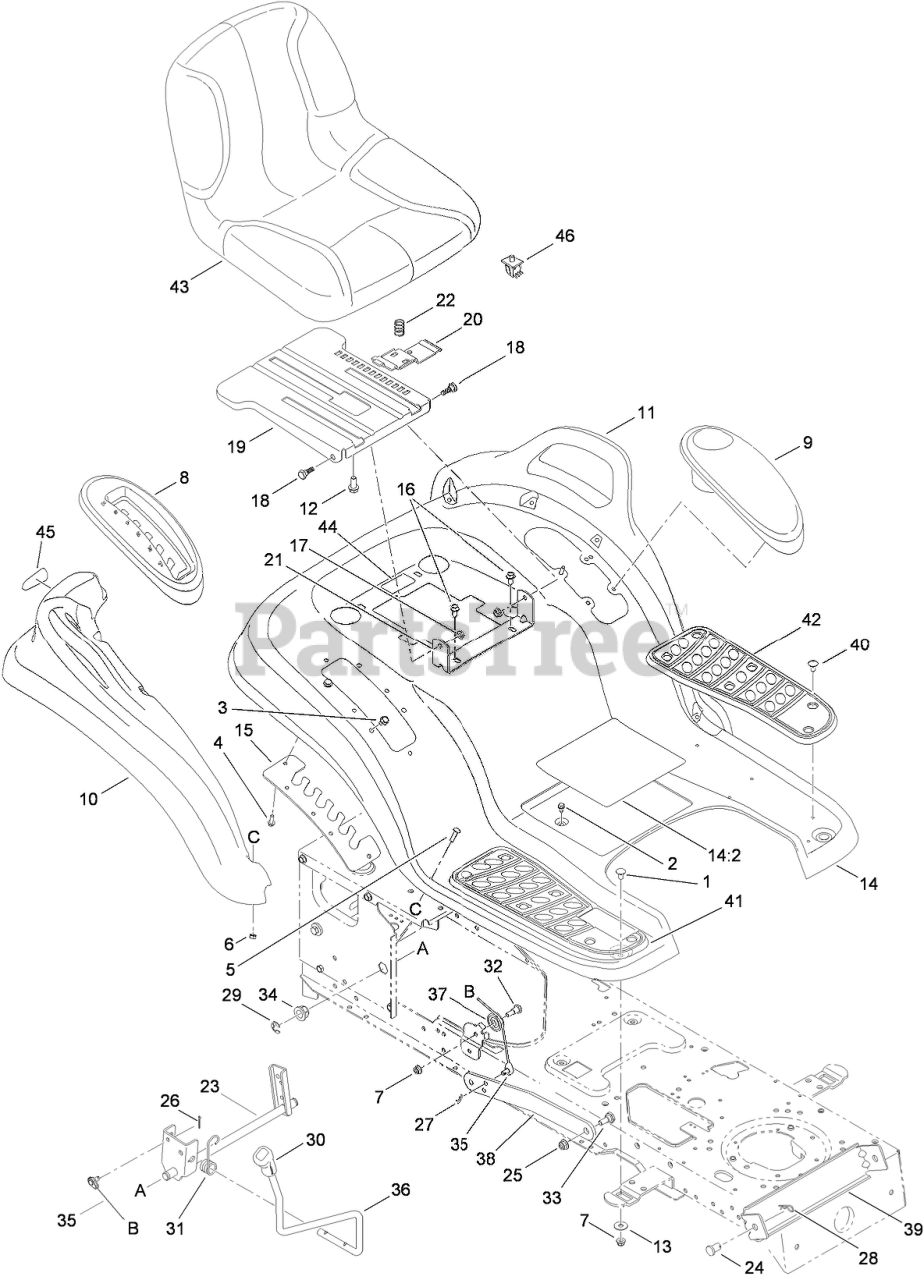

SEAT, FENDER AND DECK LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0426

BOLT-CARR

$

$

Not available

2

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

3

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

4

Toro 112-0509

SCREW-TAP

$9.99

$

In Stock, only 3 left!

0

5

Toro 112-0907

SCREW-CARR

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 5

0

8

Toro 112-6228

COVER-LEVER, LIFT
(Superseded to 112-6226)

$

$

Not available

9

Toro 112-0870

COVER (W/CUP HOLDER)

$

$

Not available

10

Toro 112-0871

FLARE-FENDER, RH

$121.99

$

Usually ships in 3-6 days

0

11

Toro 112-0872

FLARE-FENDER, LH

$121.99

$

Usually ships in 3-6 days

0

12

Toro 112-6229

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

13

Toro 112-0582

WASHER-FLAT

$

$

Not available

14

Toro 112-6297

FENDER WITH DECAL

$

$

Not available

14:2

Toro 112-6290

DECAL-SAFETY

$

$

Not available

15

Toro 112-0629

BRACKET-ADJUSTING, LIFT

$

$

Not available

16

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 12

0

17

Toro 112-0511

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 8

0

18

Toro 112-0575

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

19

Toro 112-6214

BRACKET-MOUNT, SEAT

$118.99

$

Usually ships in 3-6 days

0

20

Toro 112-6232

LEVER-ADJUSTMENT, SEAT

$

$

Not available

21

Toro 112-6217

BRACKET-PIVOT, SEAT

$28.99

$

Usually ships in 3-6 days

0

22

Toro 112-6234

SPRING-COMPRESSION

$

$

Not available

23

Toro 112-5969

LIFT SHAFT ASM

$71.99

$

Usually ships in 3-6 days

0

24

Toro 112-0376

PIN-BRACKET, LIFT

$26.99

$

Usually ships in 3-6 days

0

25

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 19

0

26

Toro 112-0459

PIN-COTTER

$

$

Not available

27

Toro 112-0568

PIN-COTTER

$7.49

$

In Stock, only 2 left!

0

28

Toro 112-0394

PIN-HAIR

$6.99

$

Usually ships in 3-6 days

0

29

Toro 112-0586

RING-E

$7.49

$

Usually ships in 3-6 days

0

30

Toro 112-0585

GRIP-HANDLE

$

$

Not available

31

Toro 112-0477

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

32

Toro 112-0443

BOLT-SHOULDER

$

$

Not available

33

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

34

Toro 112-0347

BEARING-FLANGE

$15.99

$

Usually ships in 3-6 days

0

35

Toro 112-0374

CABLE-LIFT

$37.99

$

In Stock, only 3 left!

0

36

Toro 112-5970

HANDLE-LIFT

$

$

Not available

37

Toro 112-0502

PULLEY-ROLLER

$11.99

$

Usually ships in 3-6 days

0

38

Toro 112-6165

ARM-LIFT
(Superseded to 119-9106)

$37.99

$

Usually ships in 3-6 days

0

39

Toro 112-0707

BRACKET-STABILIZER

$

$

Not available

40

Toro 112-0549

CLIP-RATCHET, FASTENER

$6.99

$

Usually ships in 3-6 days

0

41

Toro 112-0540

PAD-FOOT, RH

$

$

Not available

42

Toro 112-0545

PAD-FOOT, LH

$

$

Not available

43

Toro 112-6215

SEAT-HIGH

$

$

Not available

44

Toro 112-6282

DECAL-TORO HOTLINE

$6.49

$

Usually ships in 3-6 days

0

45

Toro 112-5873

REFLECTOR

$26.99

$

Usually ships in 3-6 days

0

46

Toro 110-9889

Switch-Seat

$72.99

$

Usually ships in 3-6 days

0
