14AQ94RP848 (GT 2200) - Toro Garden Tractor (2012) ENGINE COMPONENT ASSEMBLY Parts Diagram

Garden Tractor

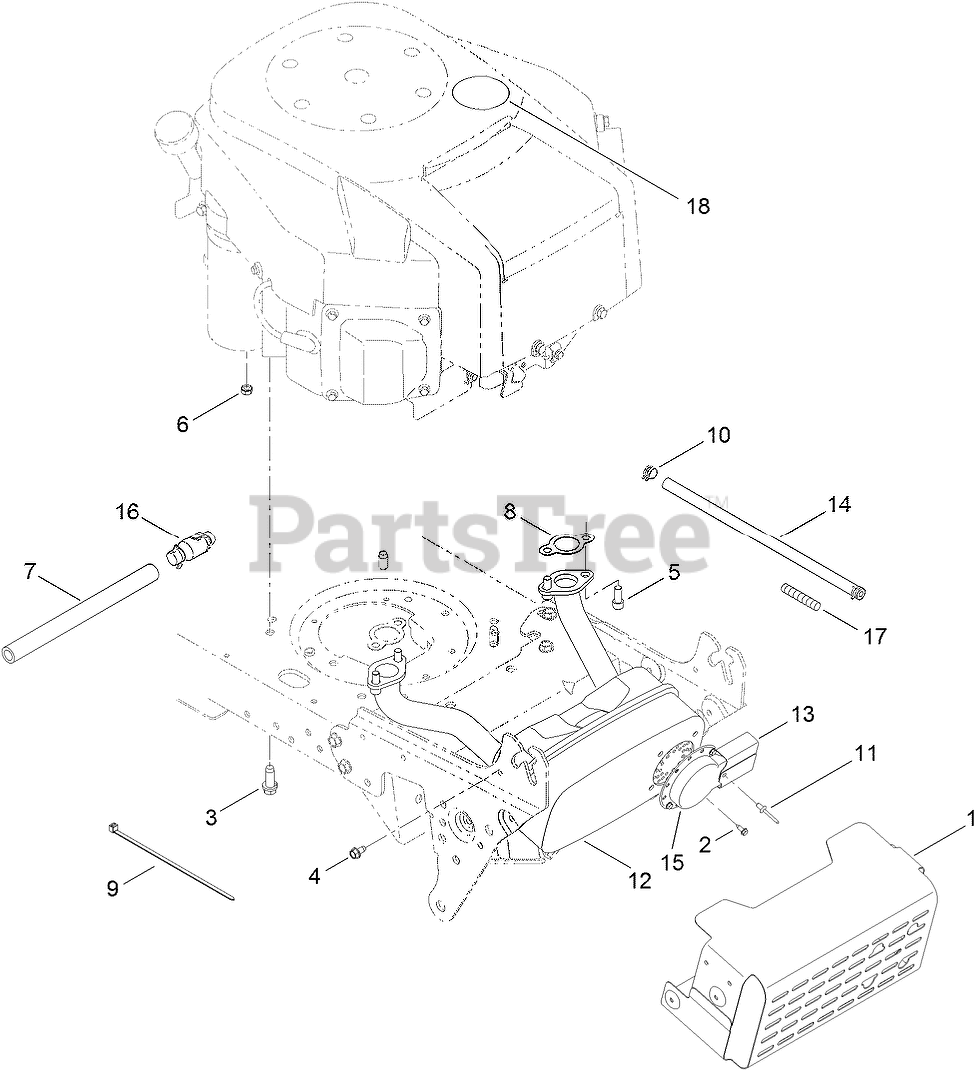

ENGINE COMPONENT ASSEMBLY Parts Diagram

  • Title

1

Toro 112-6202

SHIELD-MUFFLER

$141.99

$

Usually ships in 3-6 days

0

2

Toro 112-0626

SCREW-HWHTF

$6.99

$

In Stock, only 3 left!

0

3

Toro 112-6163

SCREW-HH, TAP

$10.99

$

Usually ships in 3-6 days

0

4

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

5

Toro 112-6012

SCREW-HSH

$6.99

$

In Stock, only 2 left!

0

6

Toro 112-0546

NUT-SEMS

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-0553

HOSE-DRAIN

$17.99

$

Usually ships in 3-6 days

0

8

Toro 119-9146

GASKET-EXHAUST

$4.49

$

Usually ships in 3-6 days

0

9

Toro 112-0527

TIE-CABLE

$6.99

$

Usually ships in 3-6 days

0

10

Toro 112-0573

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

11

Toro 112-3741

RIVET-POP

$

$

Not available

12

Toro 112-6164

MUFFLER-TWIN

$289.99

$

Usually ships in 3-6 days

0

13

Toro 112-0453

DEFLECTOR-MUFFLER

$20.99

$

In Stock, only 1 left!

0

14

Toro 112-0720

HOSE-FUEL

$

$

Not available

15

Toro 119-9147

DEFLECTOR-MUFFLER

$

$

Not available

16

Toro 110-9890

Drain-Oil

$27.99

$

Usually ships in 3-6 days

0

17

Toro 119-9145

HOSE-VENT

$22.99

$

Usually ships in 3-6 days

0

18

Toro 112-5960

DECAL-CHECK OIL

$

$

Not available
