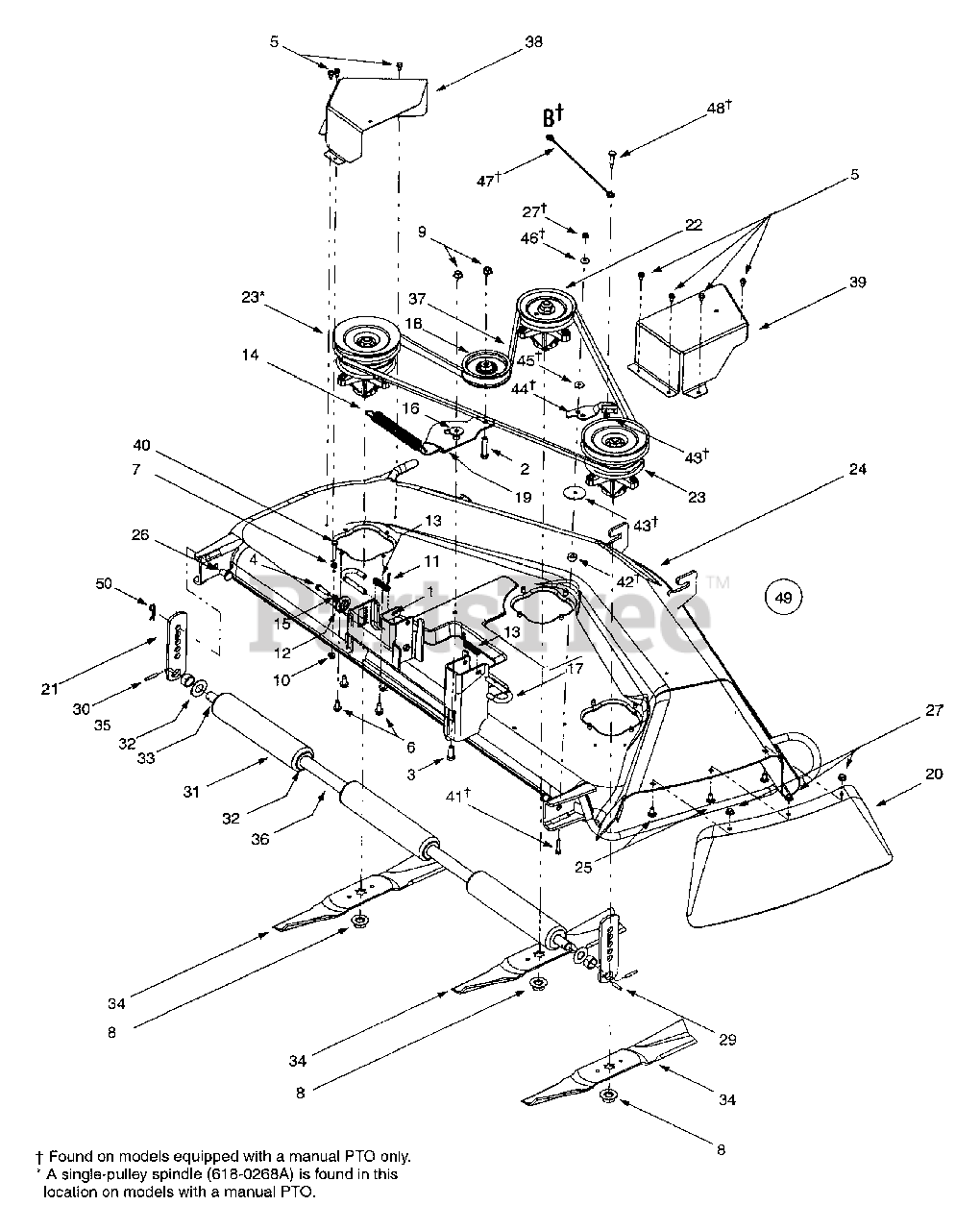

14AR807P131 - Huskee Garden Tractor (2001) (Tractor Supply) Deck Assembly P Parts Diagram

Garden Tractor

Deck Assembly P Parts Diagram

  • Title

1

MTD 710-0167

Carriage Screw, 1/4-20 x.5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

2

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

3

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

7

MTD 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 9

0

8

MTD 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

9

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

11

MTD 714-0104

Internal Cotter Pin, .072 x 1.12

$3.99

$

In Stock, Qty 20+

0

12

MTD 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

13

MTD 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

14

MTD 732-0594A

Extension Spring, .91 x 7.33
(Superseded to 932-0594A)

$13.99

$

In Stock, Qty 20+

0

15

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

MTD 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 13

0

17

MTD 747-1116

Deck Release Pin

$11.99

$

In Stock, Qty 20+

0

18

MTD 756-0627B

Flat Idler Pulley, 3,5 OD
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

19

MTD 783-0139A

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

MTD 783-0139A-0637

Idler Bracket, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

20

MTD 12649

Chute Guard
(Superseded to 12649-0637)

Variations

MTD 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$156.99

$

Usually ships in 3-6 days

0

MTD 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$156.99

$

Usually ships in 3-6 days

0

MTD 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

MTD 12649-0650

No Longer Available GUARD-CHUT - RED METALLIC (0650)

$

$

Not available

MTD 12649-0662

No Longer Available GUARD-CHUT - OYSTER GRAY (0662)

$

$

Not available

MTD 12649-0665

No Longer Available GUARD-CHUT - YARDMAN GREEN (0665)

$

$

Not available

$156.99

$

Usually ships in 3-6 days

0

21

MTD 12650

Height Adjustment Bracket

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$40.99

$

In Stock, Qty 6

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$40.99

$

In Stock, Qty 6

0

$32.99

$

Usually ships in 3-6 days

0

22

MTD 618-0268A

Center Spindle Assembly, 5 Dia.
(Superseded to 918-0428B)

$

$

Not available

MTD 756-1187

Pulley Only

$35.99

$

In Stock, only 2 left!

0

23

MTD 618-0269

Double Pulley Spindle Assembly
(Superseded to 918-0429A)

$246.99

$

Usually ships in 3-6 days

0

MTD 756-1041

Double Pulley Only

$102.99

$

In Stock, only 1 left!

0

24

MTD 683-0196

50-inch Deck Shell

Variations

MTD 683-0196-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-0196-0637

No Longer Available DECK ASM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0196-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 683-0196-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0196-0667

No Longer Available DECK ASM - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

25

MTD 710-0260A

Carriage Bolt, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

26

MTD 711-0332

Clevis Pin, .50 Dia. x .78
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

27

MTD 712-3004A

Hex Flange Lock Nut, 5/16-18 (Grade 5)

$3.49

$

In Stock, Qty 20+

0

?28

MTD 714-0145

Click Pin, .092 x 1.64

$4.49

$

In Stock, Qty 20+

0

29

MTD 715-0108

Spring Pin, 1/4 Dia. x 1

$4.99

$

In Stock, Qty 20+

0

30

MTD 715-0246

Spring Pin, 3/16 x 1.25
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

31

MTD 731-0335

Deck Roller

$67.99

$

In Stock, Qty 11

0

32

MTD 736-0316

Flat Washer, ,78 x 1.59 x .06

$3.99

$

In Stock, Qty 20+

0

33

MTD 738-0295

Deck Roller Shaft, .75 Dia. x 47.12

$115.99

$

In Stock, only 2 left!

0

34

MTD 742-0623

Blade, Star Center, 17.3
(Superseded to 942-0623)

$30.99

$

In Stock, only 3 left!

0

35

MTD 750-0212

Spacer, .752 x 1.0 x .53

$9.99

$

In Stock, Qty 20+

0

36

MTD 750-0288

Spacer, .82 x 1.0 x 5.75

Variations

MTD 750-0288-0637

Spacer, .82 x 1.0 x 5.75 - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 754-0291A

Deck Belt
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

38

MTD 783-0746

Belt Cover, L.H.

Variations

MTD 783-0746-0637

COVER-BELT LH 50" - POWDER BLACK (0637)

$

$

Not available

MTD 783-0746-0665

COVER-BELT LH 50" - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0746-0606

COVER-BELT LH 50" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0746-0650

No Longer Available COVER-BELT - RED METALLIC (0650)

$

$

Not available

MTD 783-0746-0667

No Longer Available COVER-BELT - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

39

MTD 783-0793

Belt Cover, R.H.

Variations

MTD 783-0793-0637

No Longer Available COVER-PULL - POWDER BLACK (0637)

$

$

Not available

MTD 783-0793-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0793-0650

No Longer Available COVER-PULL - RED METALLIC (0650)

$

$

Not available

MTD 783-0793-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0793-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

40

MTD 710-3288

Hex Cap Screw, 1/4-20 x 1.62

$6.49

$

In Stock, Qty 15

0

41

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

42

MTD 750-0214

Spacer, .34 x ,87 x .44

$

$

Not available

43

MTD 736-0418A

Flat Washer, .34 x 2.5 x .10

$9.99

$

Usually ships in 3-6 days

0

44

MTD 17116

Deck Brake Assembly
(Superseded to 97116)

$48.99

$

In Stock, only 2 left!

0

45

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

46

MTD 736-0425

Bell Washer, .325 x .930 x .045

$4.49

$

In Stock, Qty 14

0

47

MTD 746-1107

Bracket Cable, 12"

$14.99

$

In Stock, Qty 5

0

48

MTD 738-0572

Shoulder Screw, .374 x 1.16

$7.49

$

Usually ships in 3-6 days

0

49

MTD 753-0878

50-inch Deck Assembly

Note: Complete (Manual PTO)

Variations

MTD 753-0878-0637

No Longer Available KIT-DECK A - POWDER BLACK (0637)

$

$

Not available

MTD 753-0878-0650

No Longer Available KIT-DECK A - RED METALLIC (0650)

$

$

Not available

MTD 753-0878-0665

No Longer Available KIT-DECK A - YARDMAN GREEN (0665)

$

$

Not available

MTD 753-0878-0691

No Longer Available KIT-DECK A - BLACK JACK (0691)

$

$

Not available

MTD 753-0878-0716

No Longer Available KIT-DECK A - CUB YELLOW-99 (0716)

$

$

Not available

$

$

MTD 753-0877

50-inch Deck Assembly

Note: Complete (Electric PTO)

Variations

MTD 753-0877-0606

No Longer Available KIT-DECK A - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 753-0877-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 753-0877-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 753-0877-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

50

UNKNOWN

$

$

Not available
