14AR808K731 - Huskee Garden Tractor (2004) (Tractor Supply) Deck Assembly 54-Inch Parts Diagram

Garden Tractor

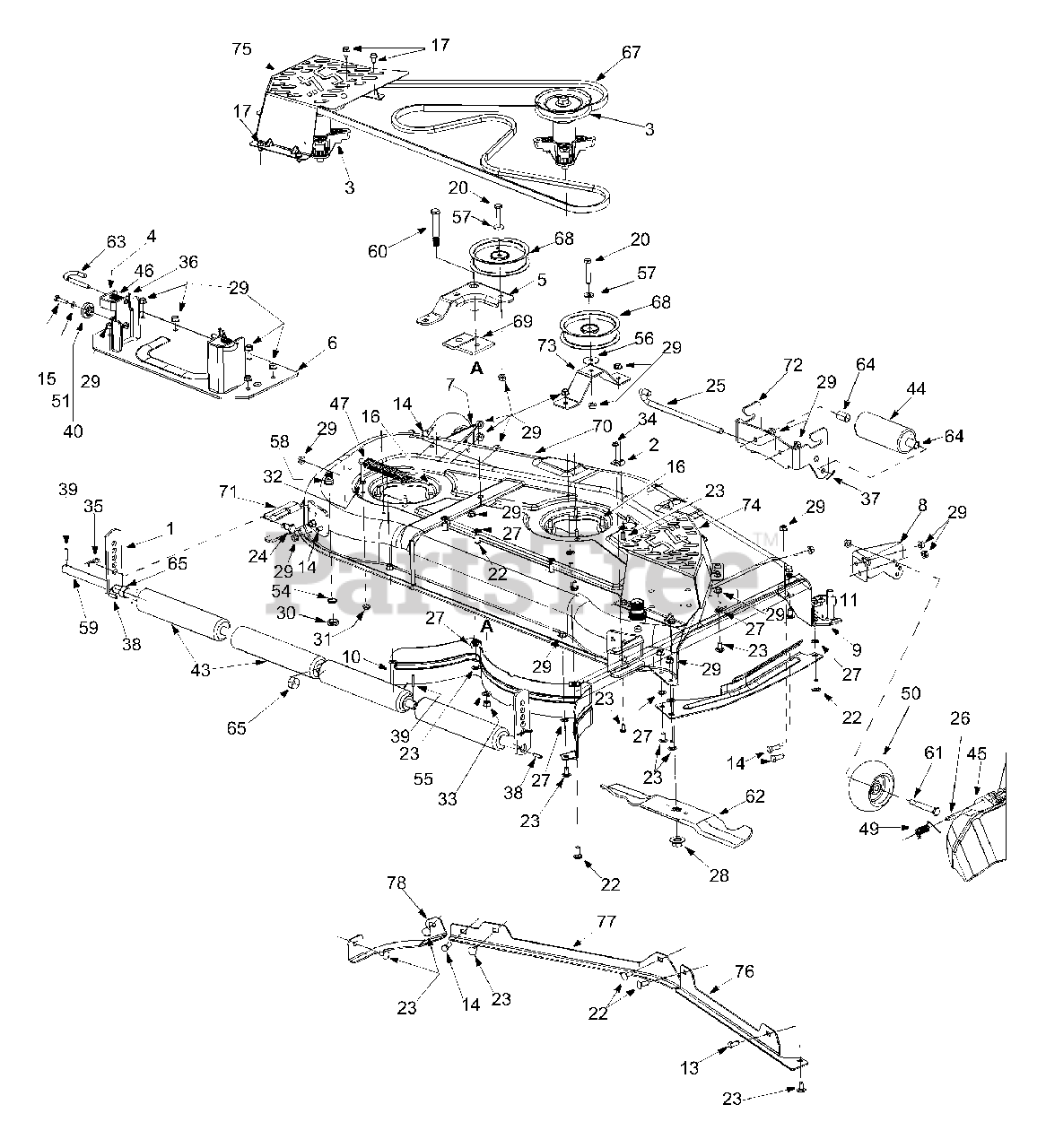

Deck Assembly 54-Inch Parts Diagram

  • Title

1

MTD 12650

Bracket, Adjustment, Height

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$40.99

$

In Stock, Qty 6

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$40.99

$

In Stock, Qty 6

0

$32.99

$

Usually ships in 3-6 days

0

2

MTD 96606

Bracket, Hook, Retainer

$6.99

$

In Stock, Qty 14

0

3

MTD 918-04608A

Spindle Assembly, Pulley, 5.39 Dia x .5625

$153.99

$

In Stock, Qty 20+

0

4

MTD 683-0254B

Bracket Assembly, Deck, Hanger LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 9

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 9

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$46.99

$

In Stock, Qty 9

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$46.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

5

MTD 683-0459

Idler Assembly, 54"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0459-0637

Idler Assembly, 54" GT - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 13

0

MTD 683-0459-4008

Idler Assembly, 54" GT - WINE RED (4008)

$69.99

$

In Stock, Qty 13

0

$56.99

$

Usually ships in 3-6 days

0

6

MTD 683-0608

Bracket Assembly, Lift, 54"
(Superseded to 683-0608B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0608-0637

BRACKET ASM-LIFT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0608-0650

BRACKET ASM-LIFT - RED METALLIC (0650)

$

$

Not available

MTD 683-0608-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

$91.99

$

Usually ships in 3-6 days

0

7

MTD 683-0609

Bracket Assembly, LH-Front

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0609-0637

No Longer Available BRACKET ASSY-FRONT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0609-0650

No Longer Available BRACKET ASSY-FRONT - RED METALLIC (0650)

$

$

Not available

MTD 683-0609-0665

No Longer Available BRACKET ASSY-FRONT - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

MTD 683-0610

Bracket Assembly, RH-Front

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0610-0637

No Longer Available BRACKET ASM-FRONT - POWDER BLACK (0637)

$

$

Not available

MTD 683-0610-0650

No Longer Available BRACKET ASM - RED METALLIC (0650)

$

$

Not available

MTD 683-0610-0665

No Longer Available BRACKET ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

9

MTD 683-0617A-0637

Stop Assembly, Chute

$60.99

$

In Stock, only 2 left!

0

10

MTD 703-2093B

Baffle, RR, Inner
(Superseded to 703-2093C)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2093B-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 14

0

$83.99

$

Usually ships in 3-6 days

0

11

MTD 631-04070A

Bracket
(Superseded to 631-04070C)

$116.99

$

In Stock, Qty 20+

0

12

MTD 703-3511B-0637

Guard, Finger

$65.99

$

In Stock, Qty 20+

0

13

MTD 710-0216

Hex Screw 3/8-16 x 0.75

$3.99

$

In Stock, Qty 17

0

14

MTD 710-0514

Hex Screw 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0602

Screw, Self-tapping, 5/16-18 x 1.000

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0726

Screw, AB, 5/16-12 x 0.75

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-1644

Screw, Carriage, 3/8-16 x 5.00

$9.99

$

Usually ships in 3-6 days

0

20

MTD 710-3011

Hex Screw, 3/8-16 x 2.25

$6.49

$

In Stock, Qty 20+

0

21

MTD 710-0395

Hex Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 8

0

22

MTD 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

24

MTD 911-0332

Pin, Clevis, .50 Dia x .78

$14.99

$

In Stock, Qty 20+

0

25

MTD 711-1737

Pin, Roller, .5" Dia x 10.06

$23.99

$

In Stock, Qty 20+

0

26

MTD 711-1762

Pin, Hinge, Dia .375 x 14.06

$17.99

$

Usually ships in 3-6 days

0

27

MTD 712-0229

Push Nut Retainer

$3.49

$

In Stock, Qty 20+

0

28

MTD 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

29

MTD 912-0431

Nut, Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

30

MTD 912-0641

Hex Nut M16
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

31

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.49

$

In Stock, Qty 20+

0

32

MTD 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

34

MTD 912-3027

Nut, 1/4-20, Hexflg, Lock

$3.99

$

In Stock, Qty 20+

0

35

MTD 914-0145

Pin, Click, .092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

36

MTD 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

37

MTD 714-3004

Pin, Cotter, 3/32 x 1.25

$4.49

$

In Stock, Qty 11

0

38

MTD 715-0108

Pin, Sprg, 1/4 Dia x 1.00

$4.99

$

In Stock, Qty 20+

0

39

MTD 915-0246

Pin, Spring, 3/16 x 1.25

$6.49

$

In Stock, Qty 9

0

40

MTD 917-04074

Adjustment, Deck, Gear

$12.99

$

In Stock, Qty 20+

0

41

MTD 921-04041

Water Nozzle Adaptor

$21.99

$

In Stock, Qty 20+

0

43

MTD 731-0335

Roller, Deck

$67.99

$

In Stock, Qty 11

0

44

MTD 731-3005

Front Roller

$26.99

$

In Stock, Qty 20+

0

45

MTD 931-3131A

Deflector, Chute

$100.99

$

In Stock, Qty 11

0

46

MTD 932-0306A

Spring, Compression, .406 x .531 x 1.75

$7.99

$

In Stock, Qty 20+

0

47

MTD 732-0459C

Spring, Extension, .94 Dia x 6.74

$17.99

$

In Stock, Qty 20+

0

48

MTD 732-0934

Spring, Extension, 1.15 Dia x 5.99

$10.99

$

In Stock, only 2 left!

0

49

MTD 732-3070A

Torsion Spring .44 I.d. x 2.10

$10.99

$

In Stock, Qty 5

0

50

MTD 753-04856A

Deck Wheel, 5" Dia.

$19.99

$

In Stock, Qty 20+

0

51

MTD 936-0119

Lock Washer

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0134

Flat Washer, .812 ID x 1.38 OD x .1

$3.99

$

In Stock, Qty 11

0

53

MTD 936-0208

Flat Washer, .51 ID x 1.5 OD x .07
(Superseded to 736-0208)

$

$

Not available

54

MTD 936-0760

Lock Washer

$3.99

$

In Stock, Qty 14

0

55

MTD 936-0921

Washer, Lock, 1/2 , Regular Duty
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

56

MTD 936-3039

Flat Washer .406 ID X 1.5 x 11ga
(Superseded to 736-3039)

$

$

Not available

57

MTD 736-3072

Washer, Flat .38 ID x.93 OD x.110

$4.49

$

In Stock, Qty 20+

0

58

MTD 737-04003D

Water Nozzle: Deck Wash-Out System

$21.99

$

In Stock, Qty 20+

0

59

MTD 738-0295

Roller Shaft

$115.99

$

In Stock, only 2 left!

0

60

MTD 738-1229A

Shoulder Screw

$11.99

$

In Stock, Qty 20+

0

61

MTD 938-3056

Shoulder Screw, 1/2 Dia x 2.50

$8.99

$

In Stock, Qty 20+

0

62

MTD 942-0677B

Blade, 18.50"

$30.99

$

In Stock, Qty 20+

0

63

MTD 747-1116

Deck Release Handle Rod, .375 Dia

$11.99

$

In Stock, Qty 20+

0

64

MTD 950-0151

Spacer .550 ID x .755 OD x 1.1

$9.99

$

In Stock, Qty 20+

0

65

MTD 950-0212

Spacer, .82 ID x 1.00 OD x .53
(Superseded to 750-0212)

$

$

Not available

66

MTD 750-3213

Spacer, .405 x .75 x 3.875

$14.99

$

In Stock, only 2 left!

0

67

MTD 954-0642

Belt, V-Type, B Section

$75.99

$

In Stock, Qty 20+

0

68

MTD 756-3105

Pulley, Idler, 5.0 Dia.

$68.99

$

In Stock, Qty 6

0

69

MTD 783-04013A

Bracket, Stabilizing

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 9

0

MTD 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$20.99

$

In Stock, Qty 9

0

$16.99

$

Usually ships in 3-6 days

0

70

MTD 983-04127

Deck: SD w/Water Nozzle Ftg.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 983-04127-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

MTD 983-04127-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

$955.99

$

Usually ships in 3-6 days

0

71

MTD 783-1453

Bracket, Mounting, 54" Roller

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1453-0637

BRACKET-MOUNT ROLLER - POWDER BLACK (0637)

$

$

Not available

MTD 783-1453-0638

BRACKET-MOUNT ROLLER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-1453-0650

BRACKET-MOUNT ROLLER - RED METALLIC (0650)

$

$

Not available

MTD 783-1453-0665

No Longer Available BRACKET-MO - YARDMAN GREEN (0665)

$

$

Not available

$

$

72

MTD 783-1454D

Bracket, Roller, Front

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1454D-0637

Front Roller Bracket - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

MTD 783-1454D-0650

Front Roller Bracket - RED METALLIC (0650)

$53.99

$

Usually ships in 3-6 days

0

MTD 783-1454D-4008

BRACKET-ROLLER FRO - WINE RED (4008)

$53.99

$

Usually ships in 3-6 days

0

MTD 783-1454D-0665

BRACKET-FRONT ROLLER - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

73

MTD 783-1455

Bracket, Idler

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1455-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

MTD 783-1455-0716

BRACKET-IDLER - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-1455-0650

BRACKET-IDLER - RED METALLIC (0650)

$

$

Not available

MTD 783-1455-0665

No Longer Available BRACKET-ID - YARDMAN GREEN (0665)

$

$

Not available

$

$

74

MTD 783-1470A

Cover, Spindle RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1470A-0606

COVER-SPINDLE RH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0637

Spindle Cover, RH - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$99.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$99.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4021

Spindle Cover, RH - CUB YELLOW 2 (4021)

$99.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4028

Spindle Cover, RH - SEARS YELLOW (4028)

$99.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0691

COVER-SPINDLE RH - BLACK JACK (0691)

$99.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4008

COVER-SPINDLE RH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4044

COVER-SPINDLE RH - CRAFTSMAN RED (4044)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

75

MTD 783-1471A

Cover, Spindle LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1471A-0606

COVER-SPINDLE LH - MAJESTIC ORANGE (0606)

$74.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0637

Spindle Cover, LH - POWDER BLACK (0637)

$74.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0650

COVER-SPINDLE LH - RED METALLIC (0650)

$69.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0716

Spindle Cover, LH - CUB YELLOW-99 (0716)

$74.99

$

In Stock, only 1 left!

0

MTD 783-1471A-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$74.99

$

In Stock, only 1 left!

0

MTD 783-1471A-0665

COVER-SPINDLE LH - YARDMAN GREEN (0665)

$74.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-0691

COVER-SPINDLE LH - BLACK JACK (0691)

$74.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-4008

COVER-SPINDLE LH - WINE RED (4008)

$74.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-4028

COVER-SPINDLE LH - SEARS YELLOW (4028)

$74.99

$

Usually ships in 3-6 days

0

MTD 783-1471A-4044

COVER-SPINDLE LH - CRAFTSMAN RED (4044)

$74.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

76

MTD 783-1482-0637

RH Skirt

$

$

Not available

77

MTD 783-1483-0637

LH Skirt

$41.99

$

In Stock, only 1 left!

0

78

MTD 783-1484-0637

LH Extension Skirt

$54.99

$

Usually ships in 3-6 days

0
