14AR814K401 - Yard-Man Garden Tractor (2002) Hood & Electrical Parts Diagram

Garden Tractor

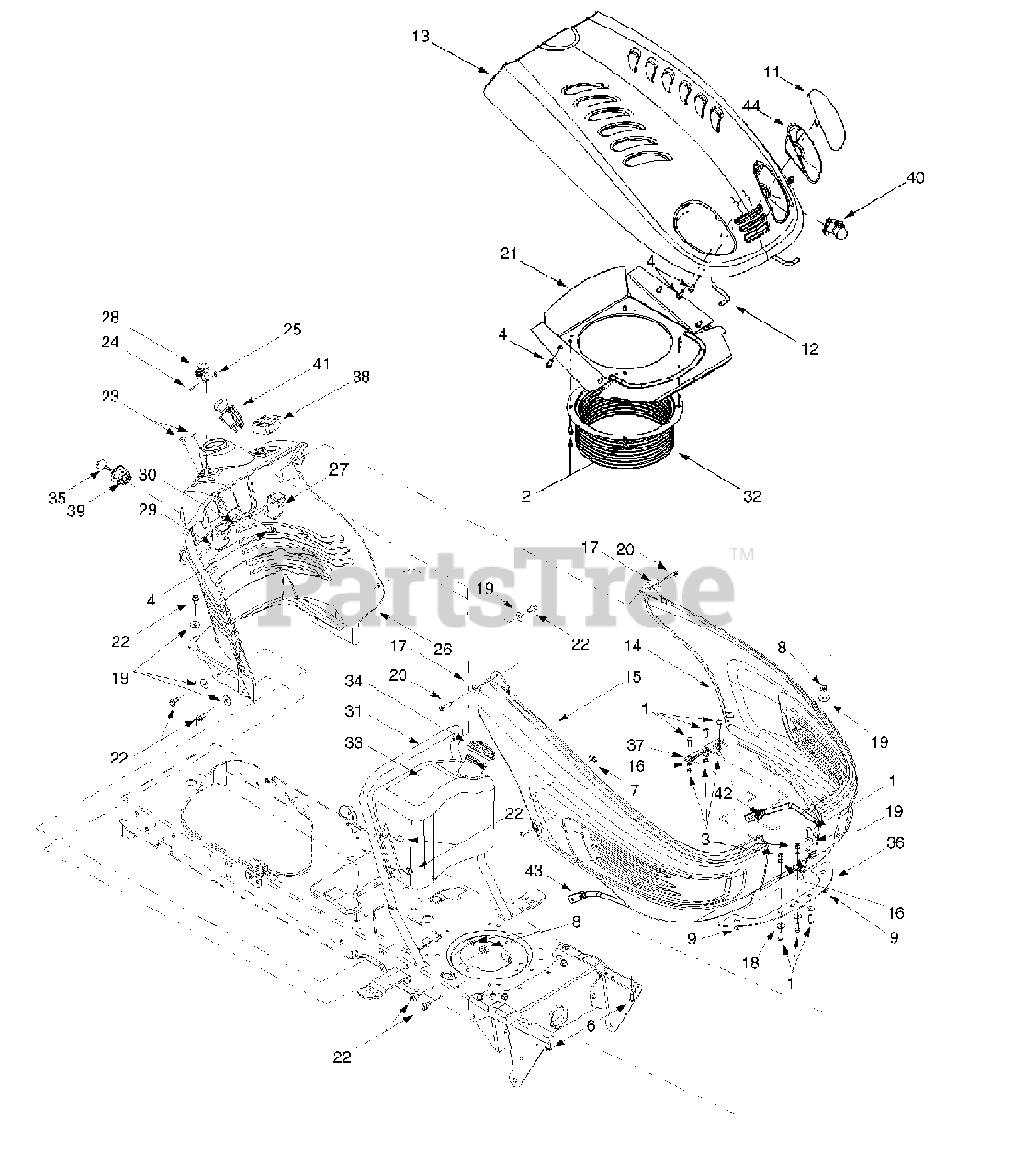

Hood & Electrical Parts Diagram

  • Title

1

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 12

0

4

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.99

$

In Stock, Qty 20+

0

?5

MTD 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

7

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 3 left!

0

8

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0201

Speed Nut

$7.49

$

In Stock, Qty 20+

0

?10

MTD 747-2127

Hood Latch Rod

$12.99

$

Usually ships in 3-6 days

0

11

MTD 731-1978

RH Head Light Lens
(Superseded to 931-1978)

$18.99

$

Usually ships in 3-6 days

0

MTD 731-1979

LH Head Light Lens
(Superseded to 931-1979)

$17.99

$

Usually ships in 3-6 days

0

12

MTD 747-1132A

Hood Support Rod

$

$

Not available

13

MTD 731-1980A

Hood
(Superseded to 931-1980B)

$

$

Not available

14

MTD 731-1981B

LH Side Panel
(Superseded to 931-04958)

$

$

Not available

15

MTD 731-1982B

RH Side Panel
(Superseded to 931-1982C)

$

$

Not available

16

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

17

MTD 736-0342

Flat Washer, .283 x .75 x .030

$7.99

$

Usually ships in 3-6 days

0

18

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.99

$

In Stock, Qty 6

0

20

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$7.49

$

In Stock, Qty 8

0

21

MTD 783-0808A

Hood Heat Shield w/o Intake Bellow
(Superseded to 783-0808A-0637)

Variations

MTD 783-0808A-0637

SHIELD-HEAT STYLE - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

22

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 19

0

23

MTD 710-1017

Torx Self-tapping Screw, 1/4-14 x .625

$8.99

$

In Stock, Qty 14

0

24

MTD 710-3217

Torx Screw, #8-32 x .375

$7.49

$

In Stock, Qty 5

0

25

MTD 712-0142

Hex Nut, 8-32

$4.99

$

In Stock, Qty 8

0

26

MTD 731-0071C

Dash Panel, 4-style

$

$

Currently unavailable

27

MTD 731-0072

Parking Brake Button

$

$

Not available

28

MTD 731-1857

Throttle Control Lever

$15.99

$

In Stock, only 4 left!

0

29

MTD 731-2106

Cruise Control Button

$

$

Not available

30

MTD 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

MTD 749-1087A

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

MTD 749-1087A-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 731-2234

Intake Bellow
(Superseded to 731-2234A)

$29.99

$

Usually ships in 3-6 days

0

33

MTD 751-0658C

Fuel Tank, 3-gallon
(Superseded to 751-0658E)

$122.99

$

In Stock, only 1 left!

0

34

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 10

0

35

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

36

MTD 731-2272

Heat Shield

$

$

Not available

37

MTD 783-1000A

Grille Support Bracket

Variations

MTD 783-1000A-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 725-1976

Systems Indicator Monitor
(Superseded to 925-1976)

$

$

Not available

39

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$47.99

$

In Stock, Qty 15

0

40

MTD 625-0051

Headlight Assembly
(Superseded to 925-0051)

$17.99

$

In Stock, only 1 left!

0

41

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$74.99

$

In Stock, Qty 20+

0

42

MTD 747-1303

LH Rod

Variations

MTD 747-1303-0637

No Longer Available ROD-LH - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 747-1304

RH Rod
(Superseded to 747-1304-0637)

Variations

MTD 747-1304-0637

ROD-RH 4/6 STY - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 731-1995

RH Headlight Reflector
(Superseded to 777X41432)

$

$

Not available

MTD 731-1996

LH Headlight Reflector
(Superseded to 777X41432)

$

$

Not available

MTD 629-0469A

Headlight Wire Harness
(Superseded to 929-0469B)

$

$

Not available

MTD 629-1067

Tractor Wire Harness (Model R814K)

$347.99

$

Usually ships in 3-6 days

0

MTD 629-1069

Tractor Wire Harness (Model W814H)

$

$

Not available
