14AT809H766 - Troy-Bilt Horse Garden Tractor (2004) Deck Assembly Parts Diagram

Horse Garden Tractor

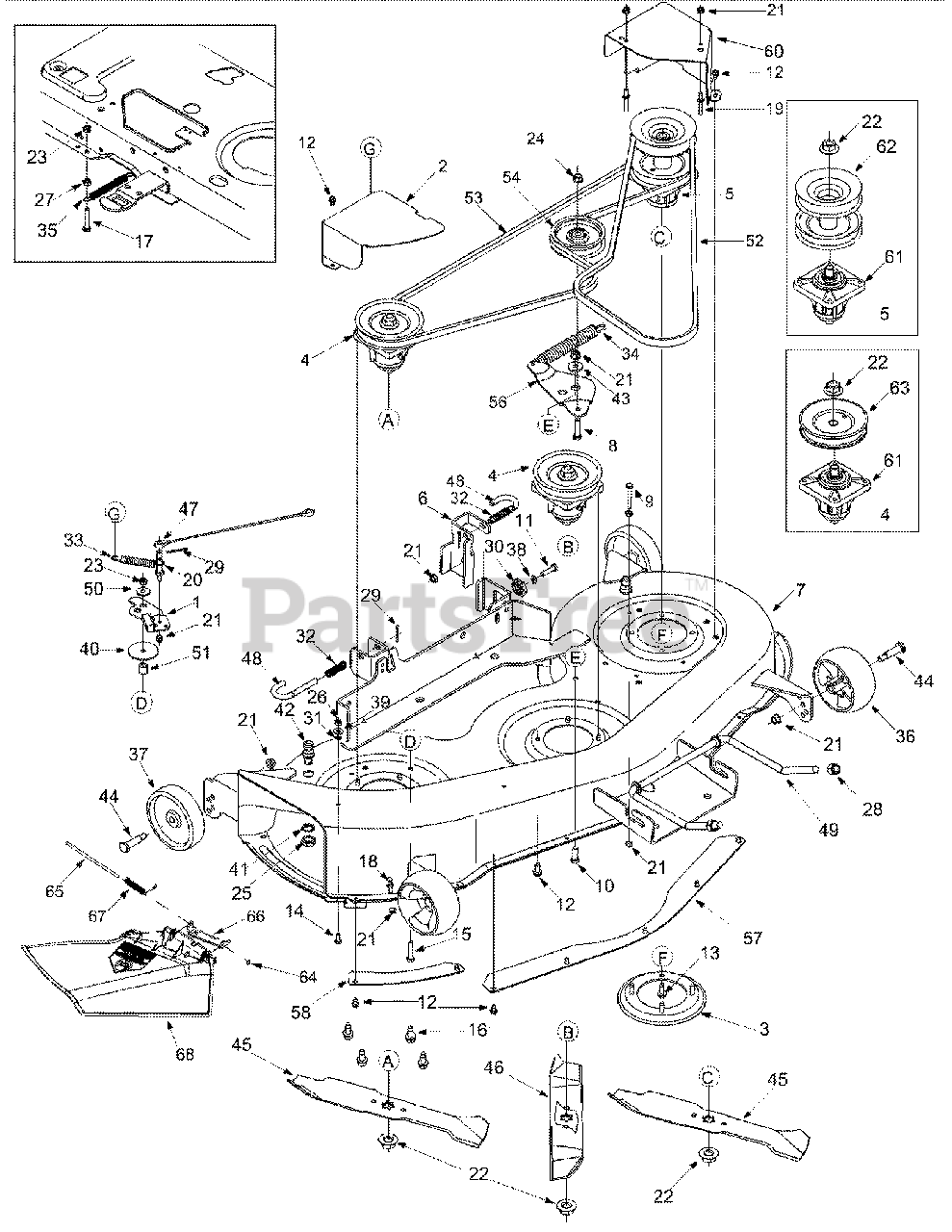

Deck Assembly Parts Diagram

  • Title

1

Troy-Bilt 17116

Deck Brake Assembly
(Superseded to 97116)

$48.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 17258D

Belt Cover
(Superseded to 17258E)

Variations

Troy-Bilt 17258D-0483

Deck Belt Cover, 46" Gray - CHARCOAL GRAY (0483)

$50.99

$

Usually ships in 3-6 days

0

Troy-Bilt 17258D-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258D-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258D-4008

COVER:BELT:DECK 46 - WINE RED (4008)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258D-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$50.99

$

In Stock, only 4 left!

0

Troy-Bilt 17258D-0691

COVER:BELT:DECK 46 - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 17982

Spindle Plate
(Superseded to 17982-0637)

Variations

Troy-Bilt 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 2 left!

0

$35.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 618-0430A

Spindle Assembly: Pulley w/ftg.
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 618-0595

Spindle Assembly: Double Pulley
(Superseded to 918-0593A)

$178.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 683-0254

Bracket Assembly: Deck Hanger LH
(Superseded to 683-0254B)

Variations

Troy-Bilt 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 9

0

Troy-Bilt 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 9

0

Troy-Bilt 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

7

MTD 983-04121A-0637

Deck 46" SD w/Nozzle Hole

$

$

Not available

8

Troy-Bilt 710-0344

Hex Bolt 3/8-16 x 1.5

$5.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 710-0501

Hex Bolt 1/4-20 x 2.0

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 710-0514

Hex Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0751

Hex Bolt 1/4-20 x 0.620

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0805

Hex Bolt 5/16-18 x 1.5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

16

Troy-Bilt 710-1260A

LD Screw 5/16-18 x 0.75

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-3180

Hex Bolt 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 711-04069

Grass Catcher Pin
(Superseded to 911-04069)

$7.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 711-0993

Belt Guard Pin
(Superseded to 911-0993)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 711-1554

Pin 1/4-20

$9.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-0417A

Flange Nut

$6.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 712-0429

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-0641

Hex Nut M16

$5.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-3006

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-3083

Lock Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 714-0470

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 717-04074

Gear: Deck Adjustment
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 726-0233

Push Nut

$3.99

$

In Stock, Qty 11

0

32

Troy-Bilt 732-0306A

Compression Spring
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 732-0594A

Extension Spring
(Superseded to 932-0594A)

$13.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 732-1165

Extension Spring
(Superseded to 732-04197)

$6.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 734-04039

Deck Wheel 5.0 dia. Ball
(Superseded to 753-04856A)

$19.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 734-0973

Deck Wheel 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 13

0

40

Troy-Bilt 736-0418A

Flat Washer

$9.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 736-0760

Lock Washer

$3.99

$

In Stock, Qty 11

0

42

Troy-Bilt 737-04003B

Water Nozzle
(Superseded to 737-04003D)

$21.99

$

In Stock, Qty 18

0

43

Troy-Bilt 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 13

0

44

Troy-Bilt 738-0373

Shoulder Screw 3/8-16
(Superseded to 938-0373)

$8.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 742-0611A

Blade: 16.28" Three in One
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 742-0612A

Blade: 14.88" Three in One
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 746-1107

Cable: Bracket

$14.99

$

In Stock, Qty 5

0

48

Troy-Bilt 747-1116

Rod: Deck Release Handle

$11.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 747-1130B

Rod: Front Adjustment

$38.99

$

In Stock, Qty 6

0

50

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

51

MTD 750-1291

Spacer

$

$

Not available

52

Troy-Bilt 754-0228

Belt: V Type
(Superseded to 954-0228)

$56.99

$

In Stock, Qty 7

0

53

Troy-Bilt 754-0349

Belt: V Type
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 756-0627B

Idler Pulley
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 783-0139A

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

Troy-Bilt 783-0139A-0637

Idler Bracket, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 783-0141

Deck Skirt: Center

Variations

Troy-Bilt 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$56.99

$

In Stock, only 1 left!

0

$56.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 783-0142

Deck Skirt RH
(Superseded to 783-0142-0637)

Variations

Troy-Bilt 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$45.99

$

In Stock, only 1 left!

0

$45.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 783-1347C-0637

Belt Cover

$72.99

$

Usually ships in 3-6 days

0

61

N/A

Spindle Housing

Note: (Order Assembly)

$

$

Not available

62

Troy-Bilt 756-1214

Deck Pulley: Double

$116.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 756-1187

Deck Pulley

$35.99

$

In Stock, only 2 left!

0

64

Troy-Bilt 726-0106

Speed Nut

$3.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.49

$

In Stock, only 2 left!

0

66

Troy-Bilt 703-1693A

Mounting Bracket

$21.99

$

In Stock, only 4 left!

0

67

Troy-Bilt 732-0602

Torsion Spring
(Superseded to 732-0602A)

$11.99

$

In Stock, Qty 5

0

68

Troy-Bilt 731-1032B

Chute Deflector: Side Discharge
(Superseded to 631-05229)

$77.99

$

In Stock, Qty 18

0
