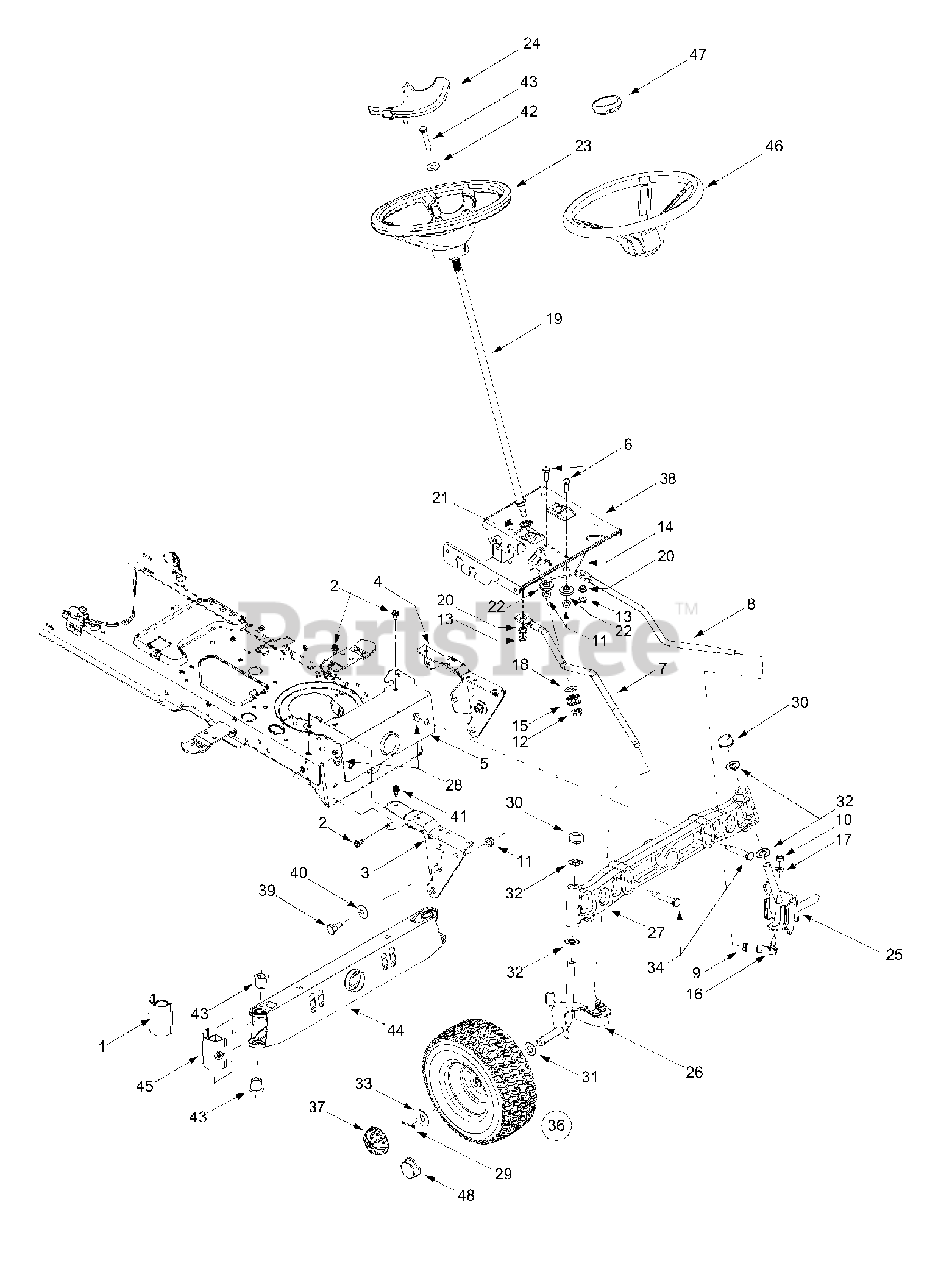

14AV818P205 - Ranch King Garden Tractor (2002) Axle & Front Wheels, Steering Parts Diagram

Garden Tractor

Axle & Front Wheels, Steering Parts Diagram

  • Title

1

MTD 731-1649

Pivot Bar End Cap w/o Fitting

$

$

Not available

2

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

MTD 683-0590

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

MTD 683-0590-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 683-0590-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 683-0589

LH Pivot Support Bracket
(Superseded to 783-0727D)

Variations

MTD 683-0589-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 683-0589-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

MTD 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-1408

RH Drag Link

$

$

Not available

8

MTD 711-1409A

LH Drag Link

$

$

Not available

9

MTD 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

14

MTD 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

MTD 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

MTD 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 6

0

20

MTD 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

MTD 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

MTD 738-0372

Shoulder Spacer, .38 ID
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

23

MTD 731-1869

Deluxe Steering Wheel

$

$

Not available

24

MTD 731-1904

Steering Wheel Cap, w/ Icon

$

$

Not available

25

MTD 638-0017

LH Axle Assembly, .75 Diameter
(Superseded to 938-0017)

$

$

Not available

26

MTD 638-0018

RH Axle Assembly, .75 Diameter
(Superseded to 938-0018)

$

$

Not available

27

MTD 719-0525B

Cast Iron Pivot Bar w/ Fittings, .75
(Superseded to 919-04177E)

$248.99

$

Usually ships in 3-6 days

0

28

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

30

MTD 726-0214

Push Cap, .625

$10.99

$

In Stock, Qty 20+

0

31

MTD 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0316

Flat Washer, .78 x 1.59 x .06

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 12

0

35

MTD 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 20+

0

36

MTD 634-0183

Wheel Assembly Complete, 16 x 6.

Variations

MTD 634-0183-0911

No Longer Available WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0183-0941

No Longer Available WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

$

$

36

MTD 634-0182

Rim Only w/ Plastic Bearing
(Superseded to 634-0182-0662)

Note: Not shown

Variations

MTD 634-0182-0662

Rim Assembly - OYSTER GRAY (0662)

$132.99

$

In Stock, only 1 left!

0

MTD 634-0182-0674

Rim Assembly - YARDMAN YELLOW (0674)

$132.99

$

In Stock, only 1 left!

0

$132.99

$

In Stock, only 1 left!

0

36

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

36

MTD 734-1727

Tire Only, Square Shoulder

Note: Not shown

$56.99

$

Usually ships in 3-6 days

0

37

MTD 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

38

MTD 783-0653D

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653D-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

Usually ships in 3-6 days

0

40

MTD 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

42

MTD 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

43

MTD 741-0660

Flange Bearing, .760 ID x .937 OD
(Superseded to 741-0660A)

$3.49

$

In Stock, Qty 20+

0

44

MTD 683-0128A

Pivot Bar, Steel
(Superseded to 683-0128B)

Variations

MTD 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, Qty 19

0

MTD 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, Qty 19

0

MTD 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, Qty 19

0

MTD 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, Qty 19

0

$90.99

$

Usually ships in 3-6 days

0

45

MTD 731-1291A

Pivot Bar End Cap w/ Fitting
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 20+

0

46

MTD 631-0027

Standard Steering Wheel, 13.25
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

47

MTD 731-0220

Steering Wheel Cap, Round
(Superseded to 931-0220)

$9.49

$

Usually ships in 3-6 days

0

48

MTD 731-0484A

Standard Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0
