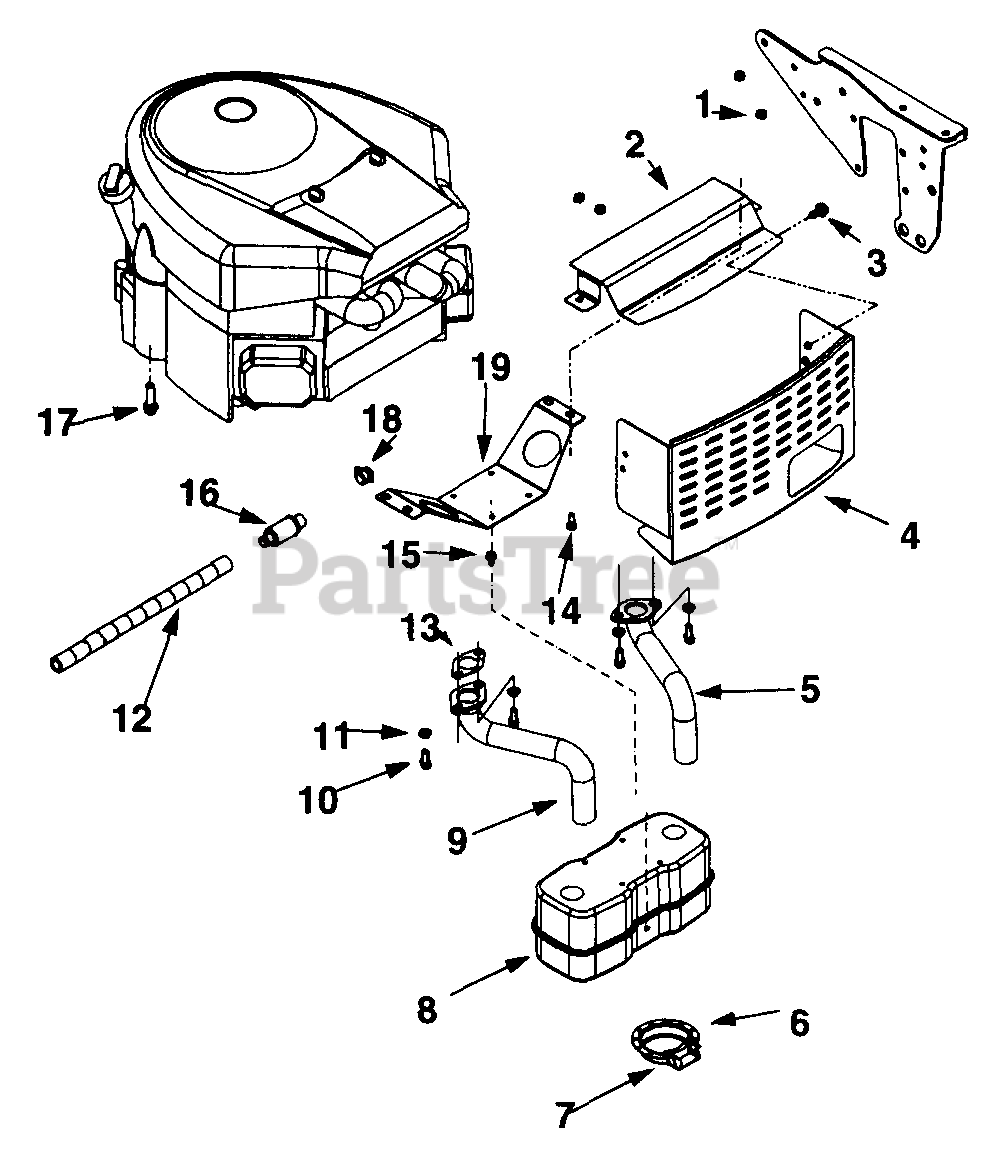

14AV834P401 - Yard-Man Garden Tractor (1998) Intek Engine Accessories Parts Diagram

Garden Tractor

Intek Engine Accessories Parts Diagram

  • Title

1

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 13

0

2

MTD 783-0626

Front Heat Shield

Note: (Code N)

$

$

Not available

3

MTD 710-0604

Hex TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 20+

0

4

MTD 783-0023A

Heat Shield
(Superseded to 783-0023A-0637)

Variations

783-0023A-0637

MTD 783-0023A-0637

SHEILD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 751-0651

Exhaust Tube - L.H.
(Superseded to 751-0651B)

$64.99

$

Usually ships in 3-6 days

0

6

MTD 710-0148

Hex Hd. F-Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 10

0

7

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$14.99

$

In Stock, Qty 20+

0

8

MTD 751-0616

Muffler
(Superseded to 951-0616B)

$173.99

$

In Stock, Qty 10

0

9

MTD 751-0650

Exhaust Tube - R.H.
(Superseded to 751-0650B)

$67.99

$

Usually ships in 3-6 days

0

10

MTD 710-3014

Hex Bolt 5/16-18 x .625" Lg.

$

$

Currently unavailable

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 751-3141

Oil Drain Extension Hose
(Superseded to 751-3141-14)

Note: (Code N)

$12.99

$

In Stock, Qty 20+

0

13

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$7.49

$

In Stock, Qty 20+

0

14

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

16

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

Note: (Code N)

$25.99

$

In Stock, Qty 15

0

17

MTD 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, Qty 6

0

18

MTD 751-3142

Oil Drain Cap

Note: (Code N)

$4.99

$

In Stock, Qty 8

0

19

MTD 17958

Muffler Mounting Brkt.

$

$

Not available
