14AY809P063 - Troy-Bilt Garden Tractor (2001) Deck Assembly P Parts Diagram

Garden Tractor

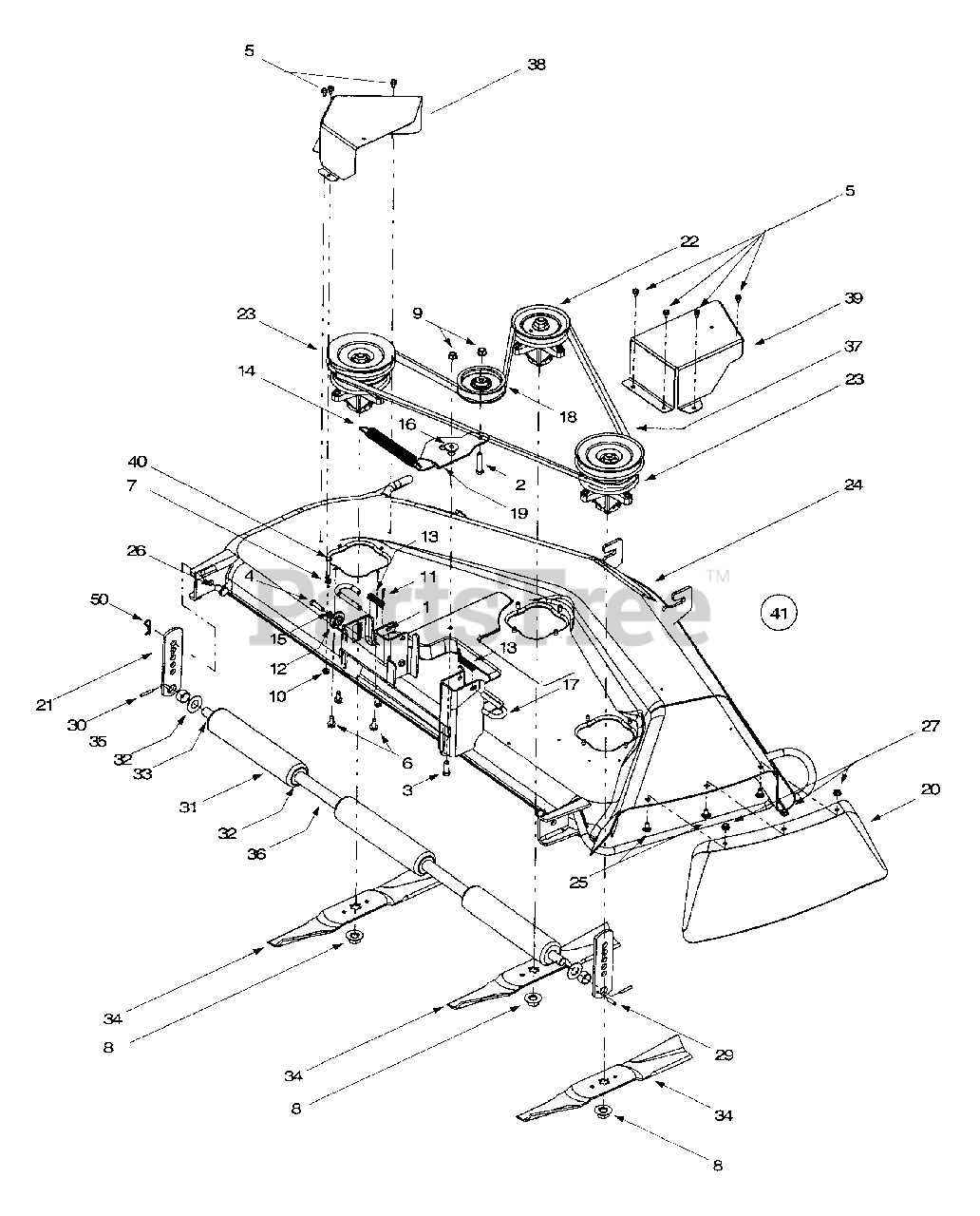

Deck Assembly P Parts Diagram

  • Title

1

Troy-Bilt 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0599

Self Tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 9

0

8

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-0104

Internal Cotter Pin, .072 x 1.12

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 732-0594A

Extension Spring, .91 x 7.33
(Superseded to 932-0594A)

$13.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 14

0

17

Troy-Bilt 747-1116

Deck Release Pin

$11.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 756-0627B

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 783-0139A

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

Troy-Bilt 783-0139A-0637

Idler Bracket, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 12649

Chute Guard
(Superseded to 12649-0637)

Variations

Troy-Bilt 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$156.99

$

Usually ships in 3-6 days

0

Troy-Bilt 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$156.99

$

Usually ships in 3-6 days

0

Troy-Bilt 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

Troy-Bilt 12649-0650

GUARD-CHUTE - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 12649-0662

GUARD-CHUTE - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 12649-0665

GUARD-CHUTE - YARDMAN GREEN (0665)

$

$

Not available

$156.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 12650

Height Adjustment Bracket

Variations

Troy-Bilt 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$40.99

$

In Stock, Qty 6

0

Troy-Bilt 12650-4008

Height Adjuster - WINE RED (4008)

$40.99

$

In Stock, Qty 6

0

$32.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 618-0268A

Center Spindle Assembly, 5 Dia.
(Superseded to 918-0428B)

$

$

Not available

Troy-Bilt 756-1187

Pulley Only

$35.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 618-0269

Double Pulley Spindle Assembly
(Superseded to 918-0429A)

$246.99

$

Usually ships in 3-6 days

0

Troy-Bilt 756-1041

Double Pulley Only

$102.99

$

In Stock, only 1 left!

0

24

MTD 683-0196

50-inch Deck Shell

Variations

Troy-Bilt 683-0196-0606

50-INCH DECK SHELL - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 683-0196-0637

50-INCH DECK SHELL - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0196-0650

50-INCH DECK SHELL - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0196-0665

50-INCH DECK SHELL - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 683-0196-0667

50-INCH DECK SHELL - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

25

Troy-Bilt 710-0260A

Carriage Bolt, 5/16-18 x .62

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 711-0332

Clevis Pin, .50 Dia. x .78
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 712-3004A

Hex Flange Lock Nut, 5/16-18 (Grade 5)

$3.49

$

In Stock, Qty 20+

0

?28

Troy-Bilt 714-0145

Click Pin, .092 x 1.64

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 715-0108

Spring Pin, 1/4 Dia. x 1

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 715-0246

Spring Pin, 3/16 x 1.25
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

31

Troy-Bilt 731-0335

Deck Roller

$67.99

$

In Stock, Qty 11

0

32

Troy-Bilt 736-0316

Flat Washer, .78 x 1.59 x .06

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 738-0295

Deck Roller Shaft, .75 Dia. x 47.12

$115.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 742-0623

Blade, Star Center, 17.3
(Superseded to 942-0623)

$30.99

$

In Stock, only 3 left!

0

35

Troy-Bilt 750-0212

Spacer, .752 x 1.0 x .53

$9.99

$

In Stock, Qty 20+

0

36

MTD 750-0288

Spacer, .82 x 1.0 x 5.75

$

$

Not available

37

Troy-Bilt 754-0291A

Deck Belt
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 783-0746

Belt Cover, L.H.

Variations

Troy-Bilt 783-0746-0637

COVER-BELT LH 50" - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0746-0665

COVER-BELT LH 50" - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0746-0606

COVER-BELT LH 50" - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0746-0650

BELT COVER (LH) 50" (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0746-0667

BELT COVER (LH) 50" - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

39

MTD 783-0793

Belt Cover, R.H.

Variations

Troy-Bilt 783-0793-0637

COVER-PULLEY (RH) 50(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0793-0606

COVER-PULLEY (RH) - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0793-0650

COVER-PULLEY (RH) 50(RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0793-0665

COVER-PULLEY (RH) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0793-0667

COVER-PULLEY (RH) - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

40

Troy-Bilt 710-3288

Hex Cap Screw, 1/4-20 x 1.62

$6.49

$

In Stock, Qty 15

0

41

MTD 753-0877

50-inch Deck Assembly

Note: Complete

Variations

Troy-Bilt 753-0877-0606

DECK ASSEMBLY KIT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 753-0877-0637

DECK ASSEMBLY KIT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 753-0877-0650

DECK ASSEMBLY KIT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 753-0877-0665

DECK ASSEMBLY KIT - YARDMAN GREEN (0665)

$

$

Not available

$

$

50

UNKNOWN

$

$

Not available
