14AY834P401 - Yard-Man Garden Tractor (1998) Kohler Engine Accessories Parts Diagram

Garden Tractor

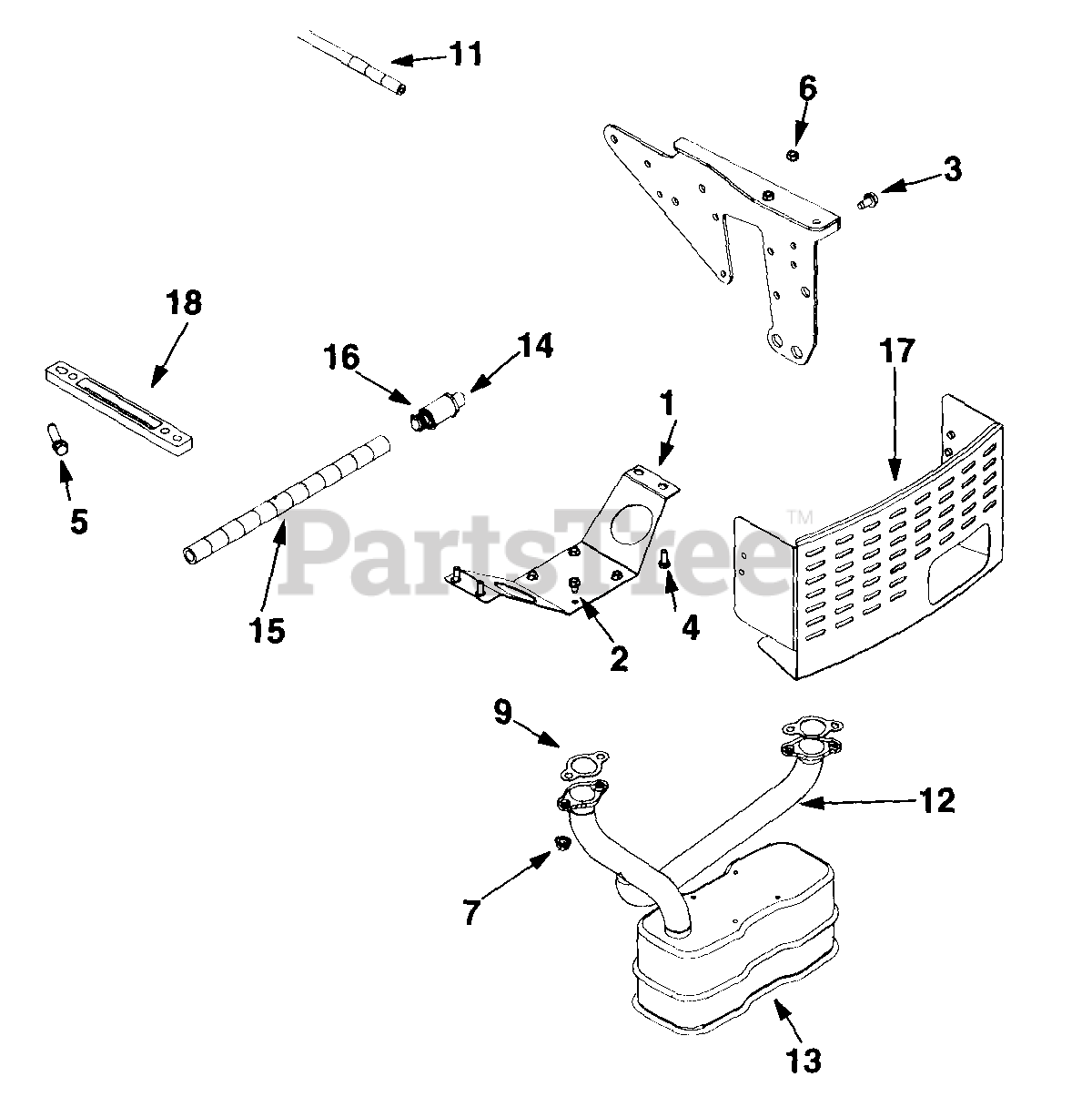

Kohler Engine Accessories Parts Diagram

  • Title

1

MTD 17958

Muffler Mounting Bracket

$

$

Not available

2

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604

Hex Wash. Hd. Tap Scr. 5/16-18 x .62'
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1007

Hex Wash. TT-Tap Scr. 3/8-16 x 1.5"

$6.99

$

In Stock, only 2 left!

0

6

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 13

0

7

MTD 71Z-3086

Flange Nut

$

$

Currently unavailable

9

MTD 721-0377

Exhaust Gasket
(Superseded to KH-24-041-49-S)

$3.49

$

Usually ships in 2-5 days

0

11

MTD 751-0535-60

Fuel Line 60" Lg.
(Superseded to 751-10349-72)

$64.99

$

In Stock, Qty 5

0

12

MTD 751-0608

Exhaust Pipe

$

$

Not available

13

MTD 751-0661

Muffler

$

$

Not available

14

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

Note: (Code N)

$25.99

$

In Stock, Qty 18

0

15

MTD 751-3141

Oil Drain Extension Hose
(Superseded to 751-3141-14)

Note: (Code N)

$12.99

$

In Stock, Qty 20+

0

16

MTD 751-3142

Oil Drain Cap

Note: (Code N)

$4.99

$

In Stock, Qty 8

0

17

MTD 783-0023A

Heat Shield
(Superseded to 783-0023A-0637)

Variations

783-0023A-0637

MTD 783-0023A-0637

SHEILD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 783-0279

Engine Mounting Spacer

$

$

Not available
