14AZ809K766 - Troy-Bilt Big Red Garden Tractor (2004) Engine Accessories Parts Diagram

Big Red Garden Tractor

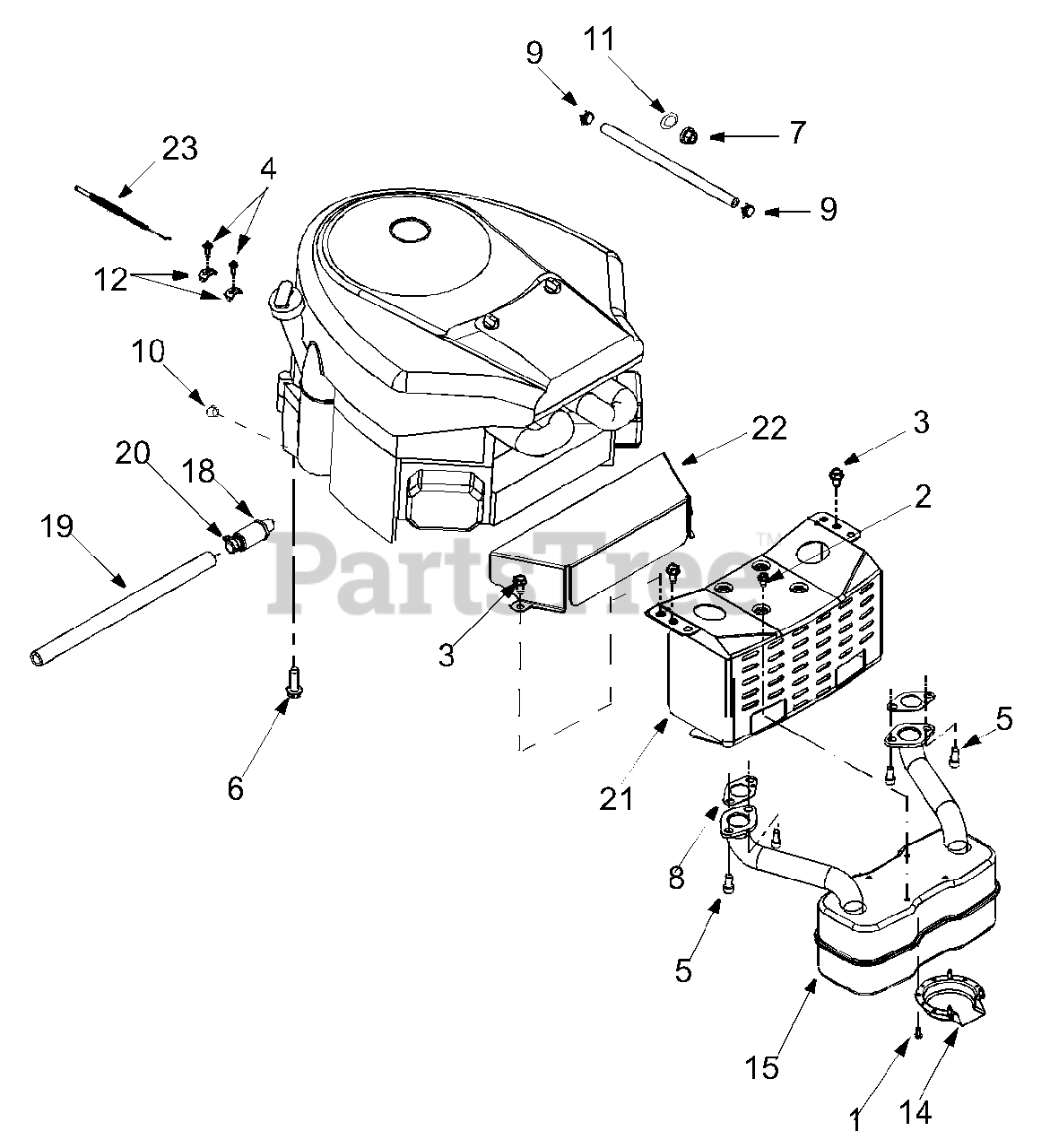

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 710-0227

Self-tapping Screw, #8-18 x .5

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0726

AB Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3017

Hex Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0271

Sems Nut

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0300

Flat Washer

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 751B221535

Casing Clamp

$9.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Troy-Bilt 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 751-0616A

Muffler, Twin Inlet
(Superseded to 951-0616B)

$152.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 751-0650A

RH Exhaust Pipe
(Superseded to 751-0650B)

$58.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 751-0651A

LH Exhaust Pipe
(Superseded to 751-0651B)

$56.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 8

0

21

Troy-Bilt 783-0615C

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

Troy-Bilt 783-0615C-0637

Muffler Bracket - POWDER BLACK (0637)

$59.99

$

In Stock, only 4 left!

0

$59.99

$

In Stock, only 4 left!

0

22

Troy-Bilt 783-0625C

Engine Heat Shield

$111.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 746-1086

Throttle Cable
(Superseded to 946-1086)

$31.99

$

In Stock, Qty 6

0

24

Troy-Bilt 725-0157

Cable Tie

Note: (not shown)

$3.49

$

In Stock, only 4 left!

0
