14AZ809K766 - Troy-Bilt Big Red Garden Tractor (2004) PTO, Battery, Frame Parts Diagram

Big Red Garden Tractor

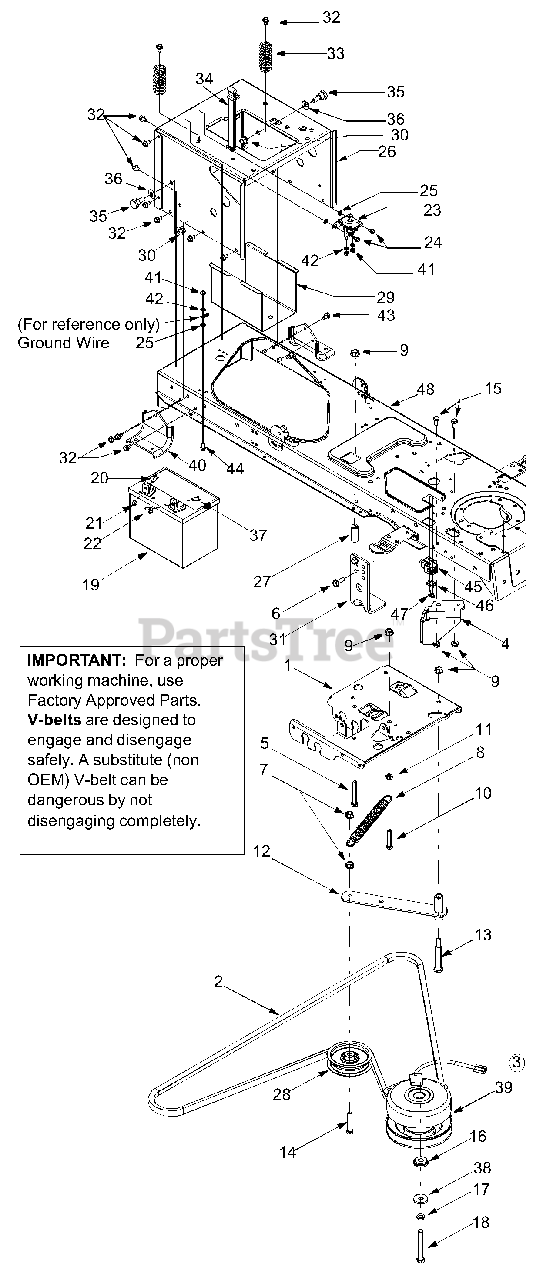

PTO, Battery, Frame Parts Diagram

  • Title
1

Troy-Bilt 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$83.99

$

In Stock, only 4 left!

0

$83.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 754-0476

PTO Belt
(Superseded to 954-0476)

$72.99

$

In Stock, Qty 9

0

3

Troy-Bilt 717-1774C

Elec. PTO Clutch (Mod. Z809K)
(Superseded to 917-05001)

Note: Replaces 717-1774, Also requires 736-0277 Flat Washer in this application.

$586.99

$

In Stock, Qty 5

0

3

Troy-Bilt 736-0277

Washer, Flat, 1.031 x 1.62 x .095

Note: use with 717-1774C

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 783-1487

PTO Clutch Anti-rot. Brakt.
(Superseded to 683-0618-0637)

Variations

Troy-Bilt 783-1487-0637

Clutch Bracket Assembly, 54 - POWDER BLACK (0637)

$

$

Not available

$

$

5

Troy-Bilt 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0726

Hex Hd Wash. Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 732-0978

Extension Spring, .62 x 5.62

$9.99

$

In Stock, Qty 6

0

9

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 683-0294

Idler Bracket Assembly

$

$

Not available

13

Troy-Bilt 738-3056

Shoulder Screw, 1/2 x 2.5
(Superseded to 938-3056)

$8.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 9

0

16

Troy-Bilt 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

$24.99

$

In Stock, Qty 6

0

17

Troy-Bilt 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-3157

Hex Cap Screw, 7/16-20 x 3.25
(Superseded to 710-3157A)

$9.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

20

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-0599

Self Tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0222

Lock Washer, 1/4

$5.49

$

In Stock, only 3 left!

0

26

MTD 783-1033A

Hitch Plate

Variations

Troy-Bilt 783-1033A-0637

UPPER HITCH PLATE - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-1033A-0650

UPPER HITCH PLATE - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-1033A-0665

UPPER HITCH PLATE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-1033A-0691

UPPER HITCH PLATE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-1033A-0716

UPPER HITCH PLATE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

Troy-Bilt 748-0415B

Spacer, 3/8 x 1.54

$6.99

$

In Stock, Qty 14

0

28

Troy-Bilt 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 783-0349

Battery Tray

Variations

Troy-Bilt 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Troy-Bilt 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

31

Variations

Troy-Bilt 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$32.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 710-0604A

Self Tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 732-3080

Compression Spring, 1.28 x 3.5
(Superseded to 732-3080A)

$12.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

37

Troy-Bilt 738-1132

Shoulder Screw, 1/4-20, .25 x .15

$4.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 736-0322

Flat Washer, .45 x 1.25 x .164

$8.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 629-04047

Harness Assembly, PTO Clutch
(Superseded to 925-3242)

$21.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 783-0693

Axle Bracket

Variations

Troy-Bilt 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0693-0637

BRACKET-AXLE - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 712-3006

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 14

0

43

Troy-Bilt 710-0607

TT Screw 5/16-18 x 0.5

$6.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 710-0642

TT Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 725-1657A

Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

46

Troy-Bilt 17962

Switch Plate

$4.99

$

In Stock, Qty 5

0

47

Troy-Bilt 710-0224

AB Screw #10-16 x 0.5
(Superseded to 910-0224)

$3.49

$

In Stock, only 2 left!

0

48

MTD 683-0304C

Lower Frame Assembly

Variations

Troy-Bilt 683-0304C-0606

LOWER FRAME ASSEMBLY(MAJESTIC ORANGE) - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 683-0304C-0650

LOWER FRAME ASSEMBLY (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0304C-0665

LOWER FRAME ASSEMBLY(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 683-0304C-0691

LOWER FRAME ASSEMBLY(BLACK JACK) - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 683-0304C-0716

LOWER FRAME ASSEMBLY(CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

49

Troy-Bilt 712-0429

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0
