14BU804H401 - Yard-Man Garden Tractor (2002) Steering Assembly Parts Diagram

Garden Tractor

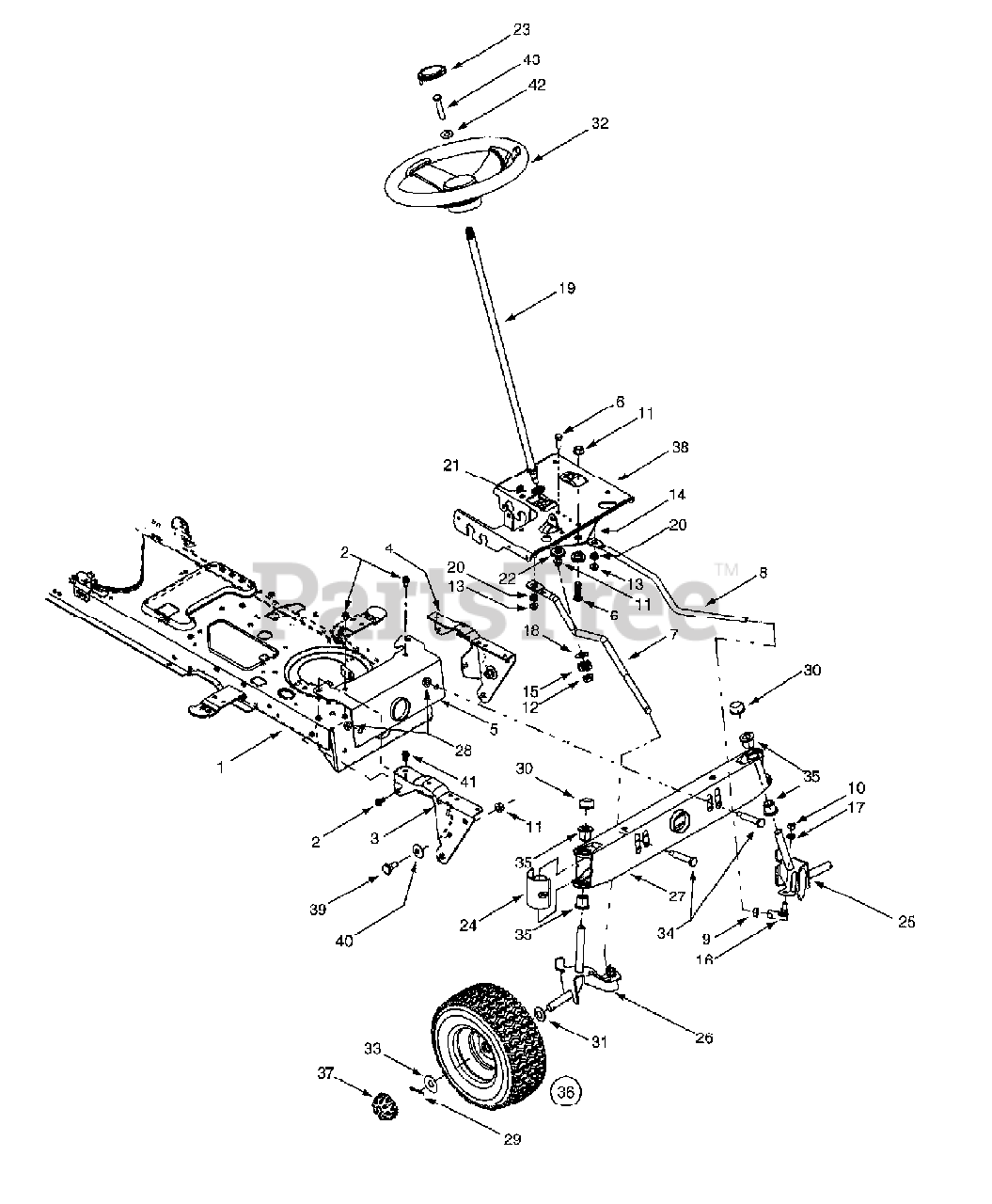

Steering Assembly Parts Diagram

  • Title

1

MTD 683-0304

Lower Frame

Variations

MTD 683-0304-0637

No Longer Available LOWER FRAM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304-0650

No Longer Available LOWER FRAM - RED METALLIC (0650)

$

$

Not available

MTD 683-0304-0665

No Longer Available LOWER FRAM - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304-0691

No Longer Available LOWER FRAM - BLACK JACK (0691)

$

$

Not available

MTD 683-0304-0716

No Longer Available LOWER FRAM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$3.99

$

In Stock, Qty 20+

0

3

MTD 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

MTD 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726B-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726B-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726B-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726B-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

MTD 783-0727A-0606

PIVOT SUPPORT BRACKET (LH) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727A-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727A-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727A-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

MTD 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 710-0723

Hex Cap Screw, 3/8-16 x 1.25 (Grade 5)

$4.49

$

In Stock, only 3 left!

0

7

MTD 711-1408

RH Drag Link

$

$

Not available

8

MTD 711-1409A

LH Drag Link

$

$

Not available

9

MTD 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

14

MTD 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$65.99

$

In Stock, Qty 20+

0

15

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

MTD 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$22.99

$

In Stock, Qty 20+

0

17

MTD 736-0169

Lock Washer, 3/8

$3.49

$

In Stock, Qty 20+

0

18

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

19

MTD 738-1001A

Steering Shaft, .625 OD x 24.4

$69.99

$

In Stock, Qty 6

0

20

MTD 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

21

MTD 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$4.99

$

In Stock, Qty 20+

0

22

MTD 738-0372B

Shoulder Spacer, .38 ID

$8.99

$

In Stock, Qty 20+

0

23

MTD 731-2625

Steering Wheel Cap, Round

$

$

Not available

24

MTD 731-1291A

Pivot Bar End Cap w/ Fitting
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 20+

0

25

MTD 638-0017

LH Axle Assembly, .75 Diameter
(Superseded to 938-0017)

$

$

Not available

26

MTD 638-0018

RH Axle Assembly, .75 Diameter
(Superseded to 938-0018)

$

$

Not available

27

MTD 683-0128A

Steel Pivot Bar
(Superseded to 683-0128B)

Variations

MTD 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 20+

0

$83.99

$

Usually ships in 3-6 days

0

28

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

MTD 714-0470

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

30

MTD 726-0341

Push Cap, .75

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0316

Flat Washer, .78 x 1.589 x .06

$3.99

$

In Stock, Qty 20+

0

32

MTD 731-2624

Steering Wheel, Soft Grip, Three Spoke

$

$

Not available

33

MTD 736-0285

Flat Washer, .635 x 1.589 x .06

$3.99

$

In Stock, Qty 20+

0

34

MTD 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$7.99

$

In Stock, Qty 12

0

35

MTD 741-0660

Flange Bearing, .76 ID x .937 OD
(Superseded to 741-0660A)

$2.99

$

In Stock, Qty 20+

0

36

MTD 634-0183

Wheel Assembly, 16 x 6.5 x 8 Square Shoulder

Variations

MTD 634-0183-0911

No Longer Available WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0183-0941

No Longer Available WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

$

$

36

MTD 634-0182

Rim Assembly Only
(Superseded to 634-0182-0662)

Note: Not shown

Variations

MTD 634-0182-0662

Rim Assembly - OYSTER GRAY (0662)

$123.99

$

In Stock, only 1 left!

0

MTD 634-0182-0674

Rim Assembly - YARDMAN YELLOW (0674)

$123.99

$

In Stock, only 1 left!

0

$123.99

$

In Stock, only 1 left!

0

36

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

36

MTD 734-1727

Tire Only, Square Shoulder

Note: Not shown

$52.99

$

Usually ships in 3-6 days

0

37

MTD 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

MTD 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$83.99

$

In Stock, only 3 left!

0

$83.99

$

In Stock, only 3 left!

0

39

MTD 738-0143

Shoulder Screw, 3/8-16

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

42

MTD 736-0242

Bell Washer, .34 x .872

$3.99

$

In Stock, Qty 20+

0

43

MTD 710-0643

Hex Bolt, 5/16-18 X 1

$6.49

$

In Stock, Qty 20+

0
