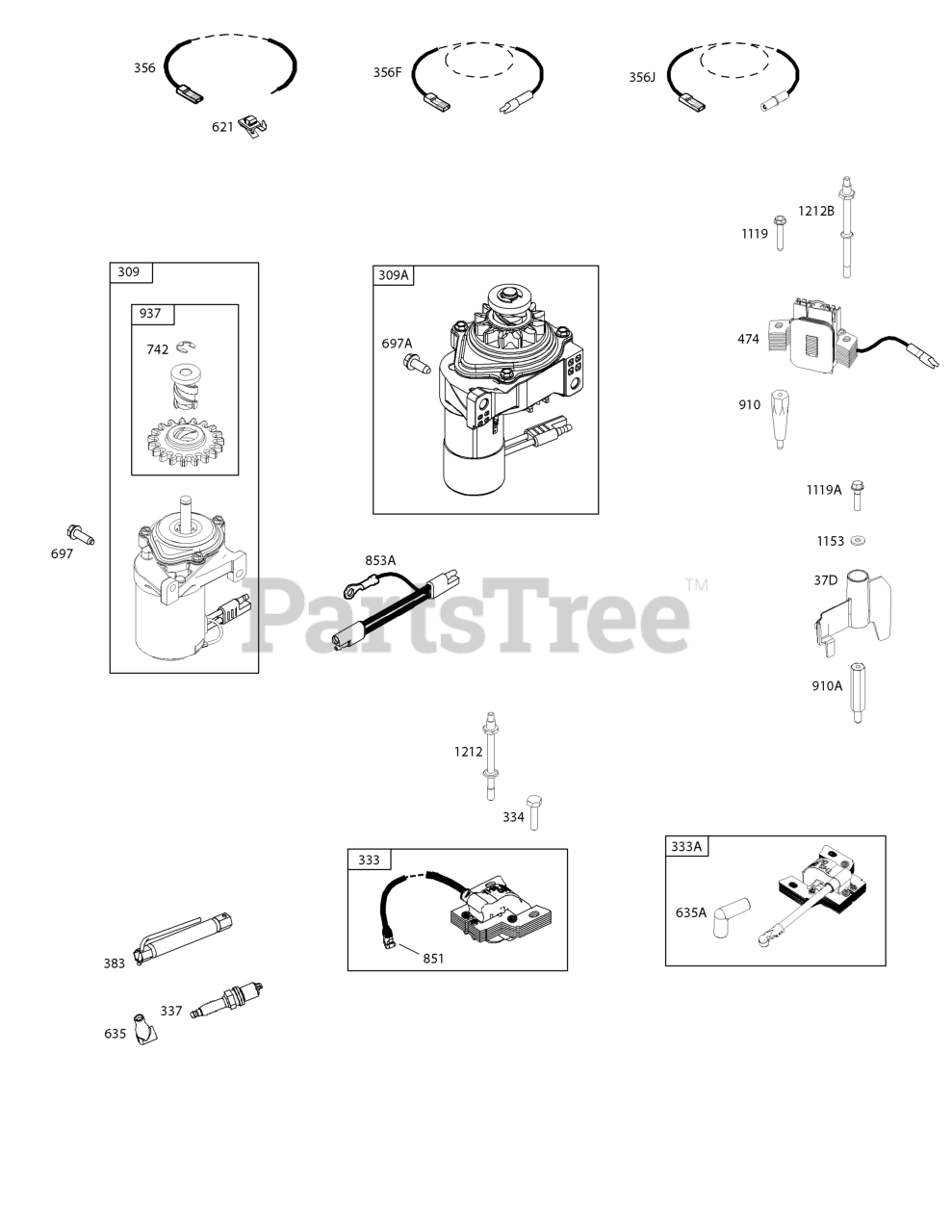

14D937-0102-H1 - Briggs & Stratton Vertical Engine Alternator, Electric Starter, Ignition Parts Diagram

Vertical Engine

Alternator, Electric Starter, Ignition Parts Diagram

  • Title

309

Briggs & Stratton 799241

Motor-Starter
(Superseded to 84005206)

$209.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 595291

Armature-Magneto

Note: Used After Code Date 16111600

$50.99

$

In Stock, only 2 left!

0

333A

Briggs & Stratton 595959

Armature-Magneto

Note: Used Before Code Date 16111700

$43.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 793454

Screw

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692720

PLUG, Spark

$3.49

$

In Stock, Qty 20+

0

356J

Briggs & Stratton 592156

Wire-Stop

$8.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 3 left!

0

474

Briggs & Stratton 794103

Alternator

$119.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 16

0

635A

Briggs & Stratton 692076

BOOT, Spark Plug

Note: Used Before Code Date 16111700

$5.49

$

In Stock, Qty 17

0

697

Briggs & Stratton 691127

SCREW

Note: (Starter Motor) (Drive Cap)

$4.49

$

In Stock, Qty 6

0

742

Briggs & Stratton 93941

RETAINER, E Ring

$6.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

853A

Briggs & Stratton 695897

Adapter-Wire

$12.99

$

Usually ships in 2-12 days

0

910

Briggs & Stratton 796498

Stud

Note: (Alternator) Used Before Code Date 16082900

$7.99

$

In Stock, only 1 left!

0

910A

Briggs & Stratton 596414

Stud

Note: (Alternator) Used After Code Date 16082800

$9.99

$

Usually ships in 2-12 days

0

937

Briggs & Stratton 799420

Spline-Starter

$26.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 794100

Screw

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1119A

Briggs & Stratton 596420

Screw

Note: (Alternator)

$4.49

$

Usually ships in 2-12 days

0

1153

Briggs & Stratton 691186

Washer

Note: (Support Bracket)

$4.99

$

Usually ships in 2-12 days

0

1212B

Briggs & Stratton 591166

Stud

Note: (Blower Housing) (Used With Alternator Only) Used Before Code Date 16082900

$9.49

$

Usually ships in 2-12 days

0
