15-42SC03 - Toro 42" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992)

42" Side-Discharge Mower Deck

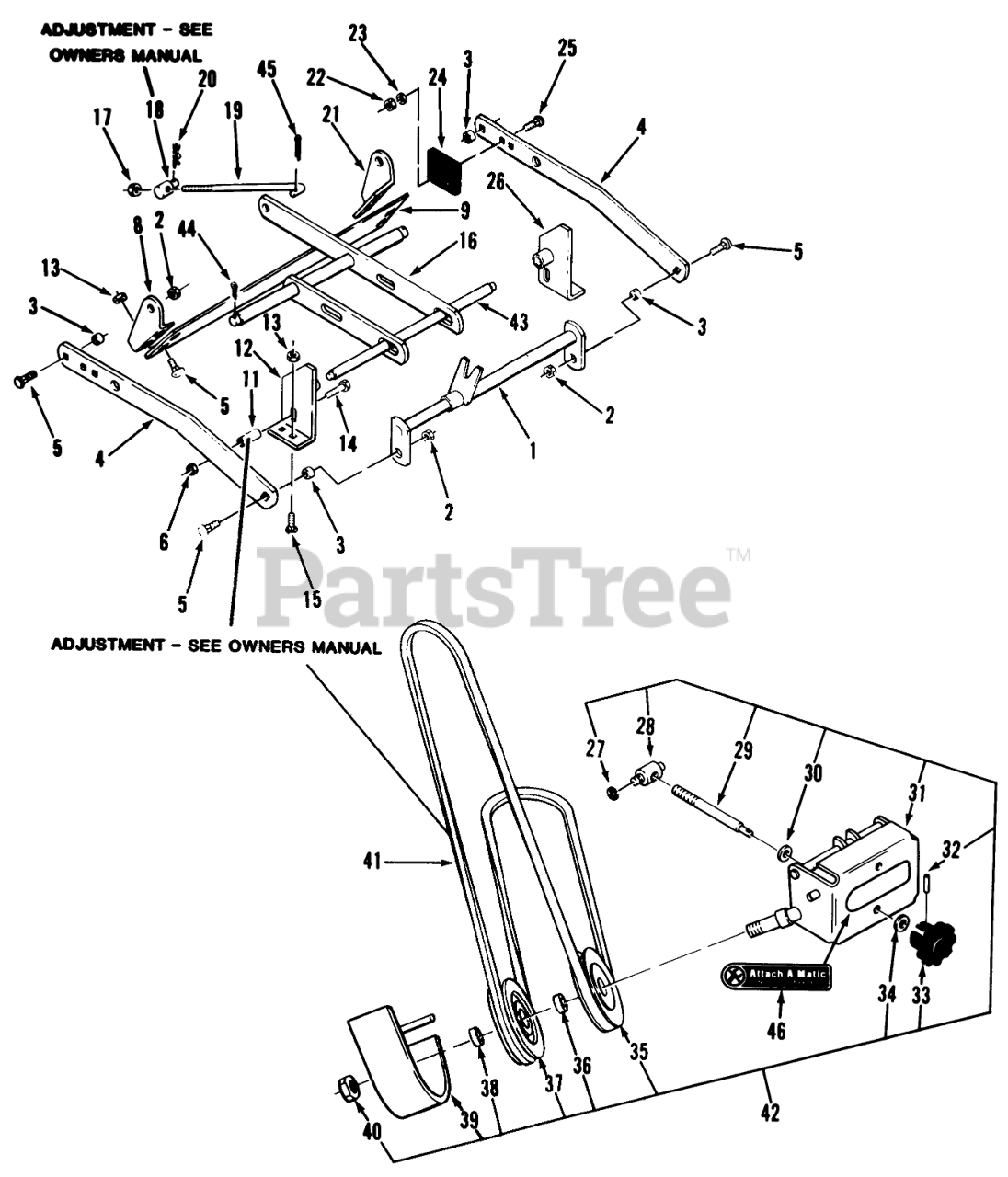

15-42SC03 - Toro 42" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) > Parts Diagrams (3) > SUSPENSION ASSEMBLY

  • Title
101758

1

Hitch

Part# 101758 (Superseded to 101758-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $89.93

102809

2

LOCKNUT-FLANGE

Part# 102809 (Superseded to 32128-19)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.12

11104

3

Spacer

Part# 11104 (Superseded to 111044)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.41

101777

4

Bar Draft

Part# 101777 (Superseded to 101777-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $69.60

900064

5

Bolt

Part# 900064 (Superseded to 3231-25)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.05

915664

6

Nut

Part# 915664 (Superseded to 3296-48)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.64

1101776

8

Bracket-Rt. Rear (Model No. 1548SC03)

Part# 1101776 (Superseded to 101776-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.45

102430

8

Bracket-Rt. Rear

Part# 102430 (Superseded to 102430-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.68

115056

9

PLATE R

Part# 115056 (Superseded to 115056-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.42

115068

9

PLATE

Part# 115068

OEM Warranty Repair Part for Toro

Not available

979360

11

USE 979360P SPACER

Part# 979360 (Superseded to 9793604)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.80

102574

12

Bracket-R.H.

Part# 102574 (Superseded to 102574-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.10

915663

13

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

900093

14

CARRIAGE BOLT -4

Part# 900093

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.65

900063

15

Bolt

Part# 900063 (Superseded to 3231-2)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.41

110269

16

Leveler

Part# 110269 (Superseded to 92-0981-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $116.72

915663

17

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

6739

18

TRUNNION-LIFT

Part# 6739

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.95

110173

19

Lift Rod

Part# 110173 (Superseded to 92-9841)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $27.45

933504

20

Hairpin

Part# 933504 (Superseded to 9335044)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.97

101775

21

Bracket-L.H.

Part# 101775 (Superseded to 101775-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.45

102429

21

Bracket-L.H. Rear

Part# 102429 (Superseded to 102429-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $28.68

915662

22

Nut

Part# 915662 (Superseded to 3296-29)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

920038

23

Collar

Part# 920038 (Superseded to 3256-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

102322

24

BUMPER

Part# 102322

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.26

900039

25

Bolt-Carriage

Part# 900039 (Superseded to 3230-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.01

102575

26

Bracket-L.H.

Part# 102575 (Superseded to 102575-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $46.10

105797

27

RING-RETAINING

Part# 105797

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.48

101708

28

TRUNNION-DOUBLE

Part# 101708

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.89

101842

29

ROD ADJ

Part# 101842

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $42.63

920009

30

Washer

Part# 920009 (Superseded to 3256-24)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

101728

31

Front Support

Part# 101728 (Superseded to 101728-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $146.19

933156

32

PIN-ROLL

Part# 933156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.52

101851

33

KNOB-ADJUSTMENT

Part# 101851

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $16.77

108571

34

WASHER-SPRING

Part# 108571

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.13

104974

35

Pulley-V

Part# 104974 (Superseded to 92-7103)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $40.39

101734

36

SPACER

Part# 101734

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.24

104975

37

PULLEY-FLAT IDLER

Part# 104975

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $40.39

101757

38

SPACER-OUTER

Part# 101757

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.34

102582

39

Belt Cover

Part# 102582 (Superseded to 102582-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $68.55

915007

40

Nut

Part# 915007 (Superseded to 3219-7)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.52

102742

41

V-BELT

Part# 102742 (Superseded to 94-2501)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $39.23

101657

42

ASM-SUPPORT,IDLER

Part# 101657

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $439.70

102570

43

Front Shaft

Part# 102570 (Superseded to 102570-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $89.02

932018

44

Cotter Pin

Part# 932018 (Superseded to 3272-12)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.11

932008

45

Cotter Pin

Part# 932008 (Superseded to 3272-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.24

115197

46

Decal-Attac-O-Matic

Part# 115197 (Superseded to 94-6330)

OEM Warranty Repair Part for Toro

Not available
