150 BF - Husqvarna Backpack Blower (SN: 20084000001 & Above) HANDLE & CONTROLS Parts Diagram

Backpack Blower

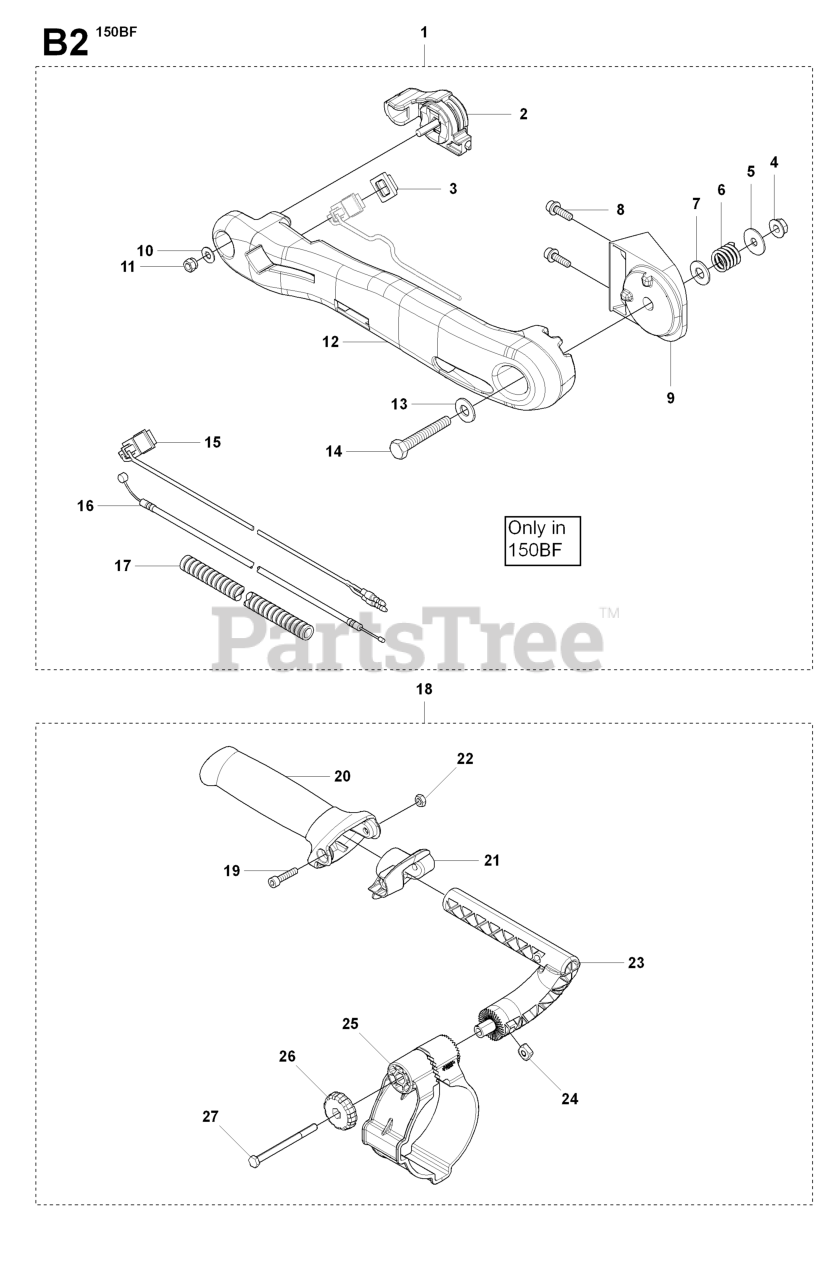

HANDLE & CONTROLS Parts Diagram

  • Title

4

Husqvarna 544277101

NUT
(Superseded to 521519601)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 544277601

TUBE

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 544277001

WASHER
(Superseded to 514336501)

$3.99

$

In Stock, Qty 12

0

1

Husqvarna 502842901

HANDLE ASSY

$66.99

$

In Stock, only 2 left!

0

10

Husqvarna 544276501

RP_WASHER

$

$

Not available

19

Husqvarna 503200745

SCREW
(Superseded to 503200245)

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 537172801

HANDLE

$15.99

$

In Stock, only 1 left!

0

16

Husqvarna 544277501

CABLE COMP
(Superseded to 512662301)

$12.99

$

Usually ships in 3-10 days

0

12

Husqvarna 544276601

ARM
(Superseded to 512648001)

$24.99

$

Usually ships in 3-10 days

0

26

Husqvarna 502204001

KNOB

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 504554701

GRIP ASSY

$48.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544365801

SCREW
(Superseded to 544270801)

$6.49

$

In Stock, Qty 6

0

21

Husqvarna 537172901

BRACKET

$7.99

$

In Stock, only 1 left!

0

24

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 544277401

CAP
(Superseded to 516405101)

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 544277201

WASHER
(Superseded to 514336701)

$3.99

$

In Stock, Qty 7

0

22

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 537260201

BRACKET
(Superseded to 502245301)

$17.99

$

In Stock, Qty 9

0

15

Husqvarna 504554601

KILL SWITCH

$34.99

$

In Stock, only 1 left!

0

13

Husqvarna 544277201

WASHER
(Superseded to 514336701)

$3.99

$

In Stock, Qty 7

0

27

Husqvarna 725234451

SCREW

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 544276801

BOLT
(Superseded to 521147901)

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 544276301

LEVER
(Superseded to 512647801)

$48.99

$

In Stock, only 3 left!

0

6

Husqvarna 544276901

SPRING
(Superseded to 521148001)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 544276401

NUT
(Superseded to 544264701)

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 544275902

HOLDER TH
(Superseded to 511675001)

$24.99

$

Usually ships in 3-10 days

0

9

Husqvarna 544276701

RP_BRACKET
(Superseded to 512648101)

$12.99

$

In Stock, only 1 left!

0
