150 W (UT-10513-A) - Homelite Chainsaw Accessories And Tools Parts Diagram

Chainsaw

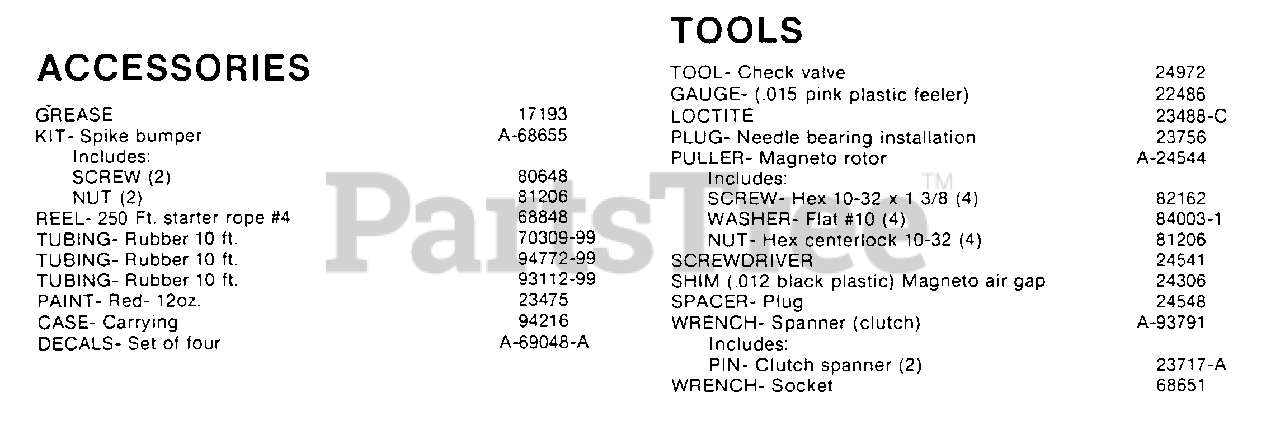

Accessories And Tools Parts Diagram

  • Title

17193

Homelite 17193

GREASE
(Superseded to 18453)

$

$

Not available

A-68655

Homelite A-68655

KIT- Spike bumper

Note: Includes P/N's 80648 and 81206.

$

$

Currently unavailable

80648

Homelite 80648

SCREW (2)

$

$

Not available

81206

Homelite 81206

NUT (2)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

68848

Homelite 68848

REEL- 250 Ft. starter rope #4

$

$

Not available

7030999

Homelite 7030999

TUBING- Rubber 10 ft.

$

$

Currently unavailable

9477299

Homelite 9477299

TUBING- Rubber 10 ft.

$51.99

$

Usually ships in 3-7 days

0

9311299

Homelite 9311299

TUBING- Rubber 10 ft.
(Superseded to UP06804)

$

$

Not available

23475

Homelite 23475

PAINT- Red- 12 oz.

$

$

Not available

94216

Homelite 94216

CASE- Carrying
(Superseded to A04665A)

$

$

Not available

A69048A

Homelite A69048A

DECALS- Set of four

$

$

Currently unavailable

24972

Homelite 24972

TOOL- Check valve

$

$

Not available

22486

Homelite 22486

GAUGE- (.015 pink plastic feeler)

$8.49

$

Usually ships in 3-7 days

0

23488C

Homelite 23488C

LOCTITE

$

$

Not available

23756

Homelite 23756

PLUG- Needle bearing installation

$

$

Currently unavailable

A-24544

Homelite A-24544

PULLER- Magneto rotor

Note: Includes P/N's 82162, 840031, & 81206.

$

$

Currently unavailable

82162

Homelite 82162

SCREW- Hex 10-32 x 1 3/8 (4)

$

$

Not available

840031

Homelite 840031

WASHER- Flat #10 (4)
(Superseded to 84003)

$2.49

$

Usually ships in 3-7 days

0

81206

Homelite 81206

NUT- Hex centerlock 10-32 (4)
(Superseded to 671079001)

$1.49

$

In Stock, Qty 6

0

24541

Homelite 24541

SCREWDRIVER
(Superseded to UP06840)

$

$

Not available

24306

Homelite 24306

SHIM (.012 black plastic) Magneto air gap
(Superseded to PS24306)

$

$

Not available

24548

Homelite 24548

SPACER- Plug

$

$

Not available

A-93791

Homelite A-93791

WRENCH- Spanner (clutch)

Note: Includes P/N 23717A.

$

$

Not available

23717A

Homelite 23717A

PIN- Clutch spanner (2)

$

$

Not available

68651

Homelite 68651

WRENCH- Socket
(Superseded to UP06840)

$

$

Not available
