1500 - Weed Eater String Trimmer Carburetor Assembly PN 35183 & 35148 Parts Diagram

String Trimmer

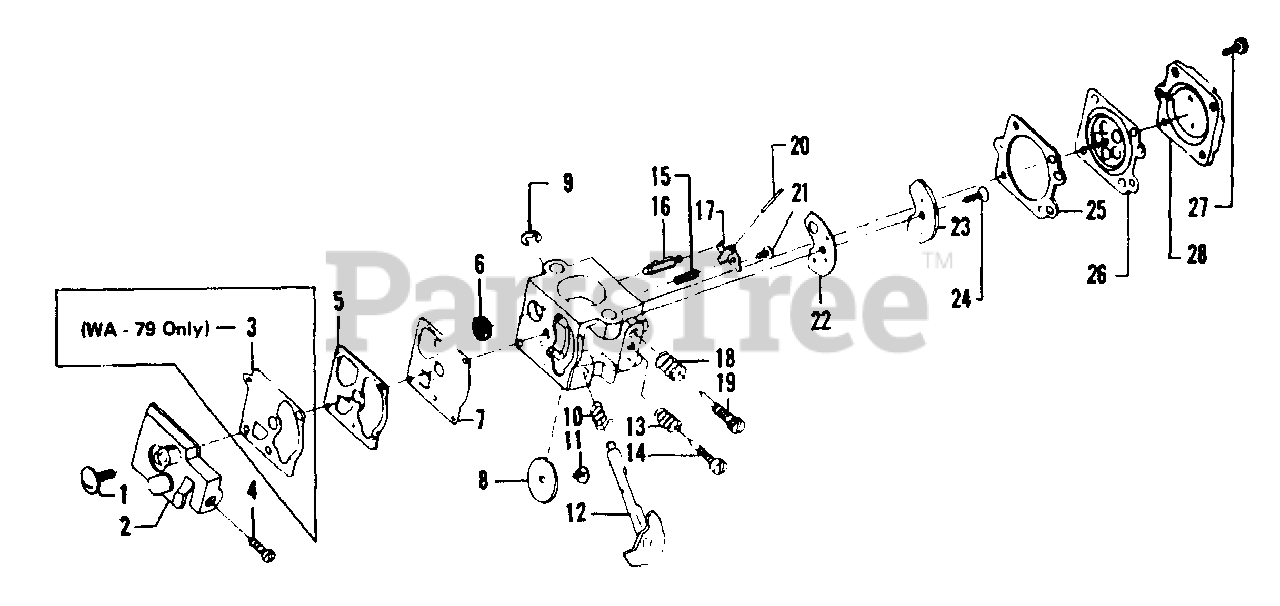

Carburetor Assembly PN 35183 & 35148 Parts Diagram

  • Title

1

Poulan 35017

Screw - Pump Cover

$

$

Not available

2

Poulan 35154

Pump Cover Ass'y WA-79 (# 35148)

Note: (Incl. # 41)

$

$

Not available

2

Poulan 35184

Pump Cover Ass'y WA-149 (# 35183)

Note: (Incl. # 41)

$

$

Not available

3

Poulan 35135

Diaphragm - Pump (WA-79 - # 35148 Only)

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

4

Poulan 35156

Screw -Idle Adjustment

$

$

Not available

5

Poulan 35009

Gasket - Pump WA-79 (# 35148)

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

5

Poulan 35164

Gasket - Pump WA-149 (# 35183)

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

6

Poulan 35178

Screen -Inlet

Note: Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

7

Poulan 35152

Diaphragm - Pump WA-79 (# 35148)

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

7

Poulan 35166

Diaphragm - Pump WA-149 (# 35183)

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

8

Poulan 35133

Valve - Throttle

$

$

Not available

9

Poulan 35007

Clip - Throttle Shaft

$

$

Not available

10

Poulan 35138

Spring - Throttle Return

$

$

Not available

11

Poulan 530035015

Screw - Throttle Valve

Note: Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

12

Poulan 35132

Shaft Assembly - Throttle

$

$

Not available

13

Poulan 35023

Spring - Idle Needle

$

$

Not available

14

Poulan 35141

Needle - Idle

$

$

Not available

15

Poulan 35139

Spring -Metering Lever

Note: Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

16

Poulan 530035106

Valve - Inlet Needle
(Superseded to 503117001)

Note: Contents in Kwik Kit # 35144 or # 35185.

$11.99

$

In Stock, Qty 11

0

17

Poulan 35031

Lever - Metering

Note: Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

18

Poulan 35036

Spring - Hi Speed Needle

$

$

Not available

19

Poulan 35142

Needle - Hi Speed

$

$

Not available

20

Poulan 35028

Pin - Metering Lever

Note: Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

21

Poulan 35016

Screw - Metering Lever Pin

$

$

Not available

22

Poulan 35147

Gasket - Circuit Plate

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

23

Poulan 35042

Plate - Circuit

$

$

Not available

24

Poulan 35137

Screw - Circuit Plate

Note: Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

25

Poulan 530035151

Gasket - Metering Diaphragm

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$3.99

$

In Stock, Qty 8

0

26

Poulan 35014

Diaphragm Assembly - Metering

Note: Contents in Gasket/Diaphragm Kit # 35145 or #35186; Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

27

Poulan 35153

Screw - Assembly - Metering Cover & Throttle Shaft Clip

$

$

Not available

28

Poulan 35149

Cover - Metering Diaphragm

$

$

Not available

Poulan 35144

Kit - Kwik Kit Repair WA-79 (# 35148)

Note: (Not Shown)

$

$

Not available

Poulan 35185

Kit - Kwik Kit Repair WA-149 (# 35183)

Note: (Not Shown)

$

$

Not available

Poulan 35145

Kit - Gasket / Diaphragm WA-79 (# 35148)

Note: (Not Shown); Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

Poulan 35186

Kit - Gasket / Diaphragm WA-149 (# 35183)

Note: (Not Shown); Contents in Kwik Kit # 35144 or # 35185.

$

$

Not available

Poulan 35183

Carburetor

$

$

Not available

Poulan 35148

Carburetor

$

$

Not available
