15001 - Troy-Bilt Sprayer III, 25 Gallon (SN: W001487 - W002245) MAIN ASSEMBLY Parts Diagram

Sprayer III, 25 Gallon

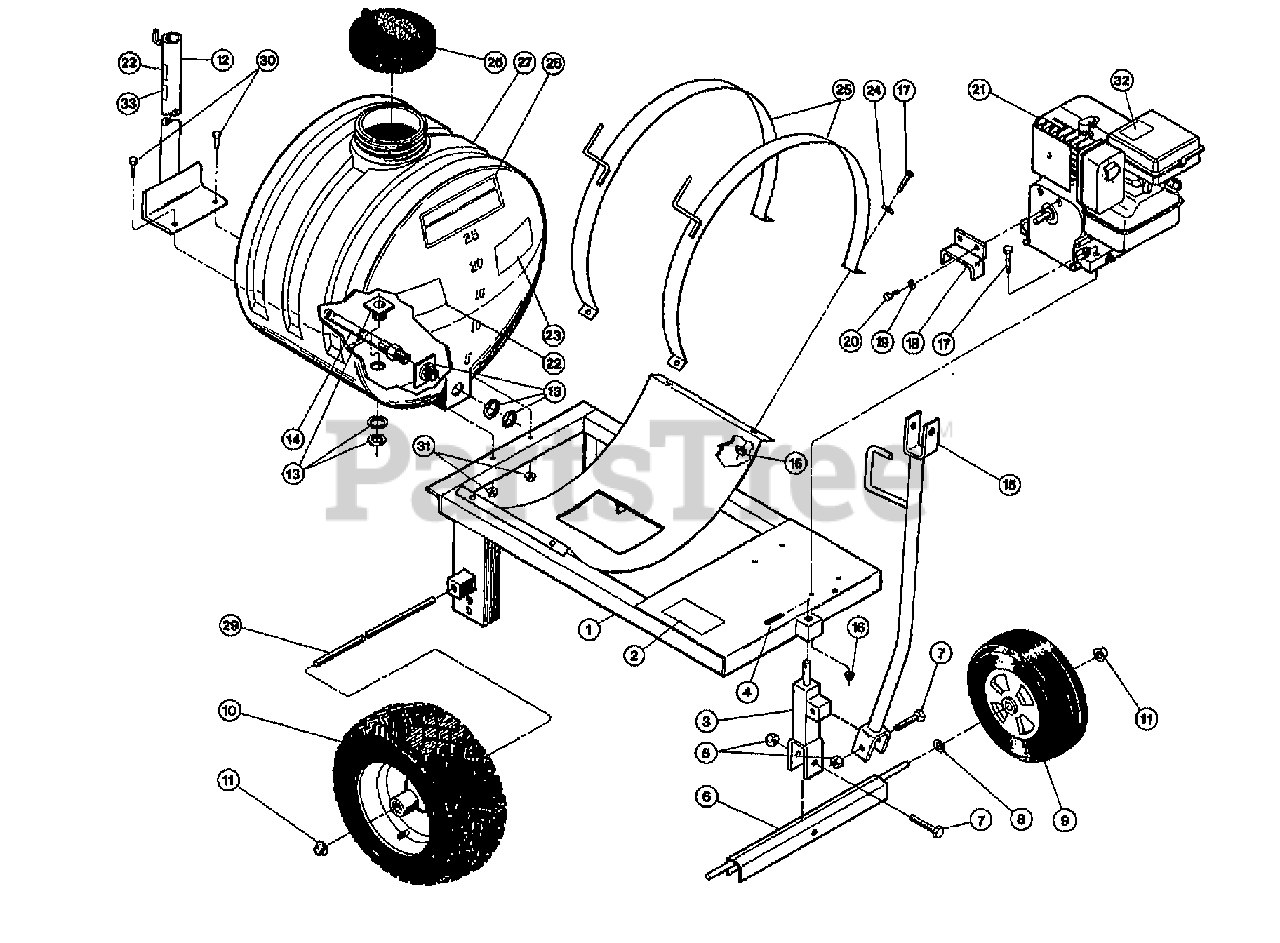

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt W21401501

ASSM-UNDERCARRIAGE W21401501

$

$

Currently unavailable

2

Troy-Bilt W2045148

DECAL-SAVE

$

$

Currently unavailable

3

Troy-Bilt W2005103R

ASSM-AXLE PIVOT FRONT

$

$

Currently unavailable

4

Troy-Bilt W311503

PIN-COTTER .120X1.25 ZP

$

$

Currently unavailable

5

Troy-Bilt W0310010P

NUT-LOCK

$

$

Currently unavailable

6

Troy-Bilt W2005100R

ASSM-FRONT AXLE SPRAYER

$

$

Currently unavailable

7

Troy-Bilt W02051022

SCR-HH 5/8-11X2.25 G5 ZP

$

$

Currently unavailable

8

Troy-Bilt 9943

WASHER-1.75X.625X.11

$

$

Currently unavailable

9

Troy-Bilt WSPW204

ASSM-TIRE/WHEEL 11592

$

$

Currently unavailable

10

Troy-Bilt WPW02202

ASSM-6.5X16 TIRE WPW02202

$

$

Currently unavailable

11

Troy-Bilt WPW625019

NUT-PUSH 5/8

$

$

Currently unavailable

12

Troy-Bilt W20201502

MAST-BOOM*ALIAS*1985814

$

$

Currently unavailable

13

Troy-Bilt W21254002

ASSM-BULK HEAD W21254002

$

$

Currently unavailable

14

Troy-Bilt W33710019

AGITATOR-JET W33710019

$

$

Currently unavailable

15

Troy-Bilt W2130150

HANDLE-TOW BAR

$

$

Currently unavailable

16

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP

$

$

Currently unavailable

17

MTD 9466

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 690-900-0040)

$3.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt W2015400R

COVER-DRIVESHAFT SPRAYER

$

$

Currently unavailable

19

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

20

Troy-Bilt W02050502FP

SCR-GRD 5 W02050502FP

$

$

Currently unavailable

21

Troy-Bilt 9541B

ENGINE

$

$

Currently unavailable

22

Troy-Bilt W2045146

DECAL-DANGER AVOID W2045146

$

$

Currently unavailable

23

Troy-Bilt W2045149

DECAL-ENG SPEED W2045149

$

$

Currently unavailable

24

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

25

Troy-Bilt W21251501

TANK-UP CRDL W/HOSE HGRS

$

$

Currently unavailable

26

Troy-Bilt W21254503

CAP-TANK W21254503

$

$

Currently unavailable

27

Troy-Bilt W21254001W

ASSM-TANK 25 GAL W/DECALS

$

$

Currently unavailable

28

Troy-Bilt W2045145

DECAL-LOGO 25 GAL SPRAYER

$

$

Currently unavailable

29

Troy-Bilt W200109B

AXLE-REAR W2000109B

$

$

Currently unavailable

30

Troy-Bilt 90008

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

31

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP

$

$

Currently unavailable

32

Troy-Bilt 2591

DECAL-HOT SURFACE
(Superseded to 791-182414)

$4.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt W2045147

DECAL-40PSI CAUTION W2045147

$

$

Currently unavailable
