15006 - Troy-Bilt Junior VI Rear-Tine Tiller (SN: 1500612101 & Above) ENGINE, PULLEYS & BELTS Parts Diagram

Junior VI Rear-Tine Tiller

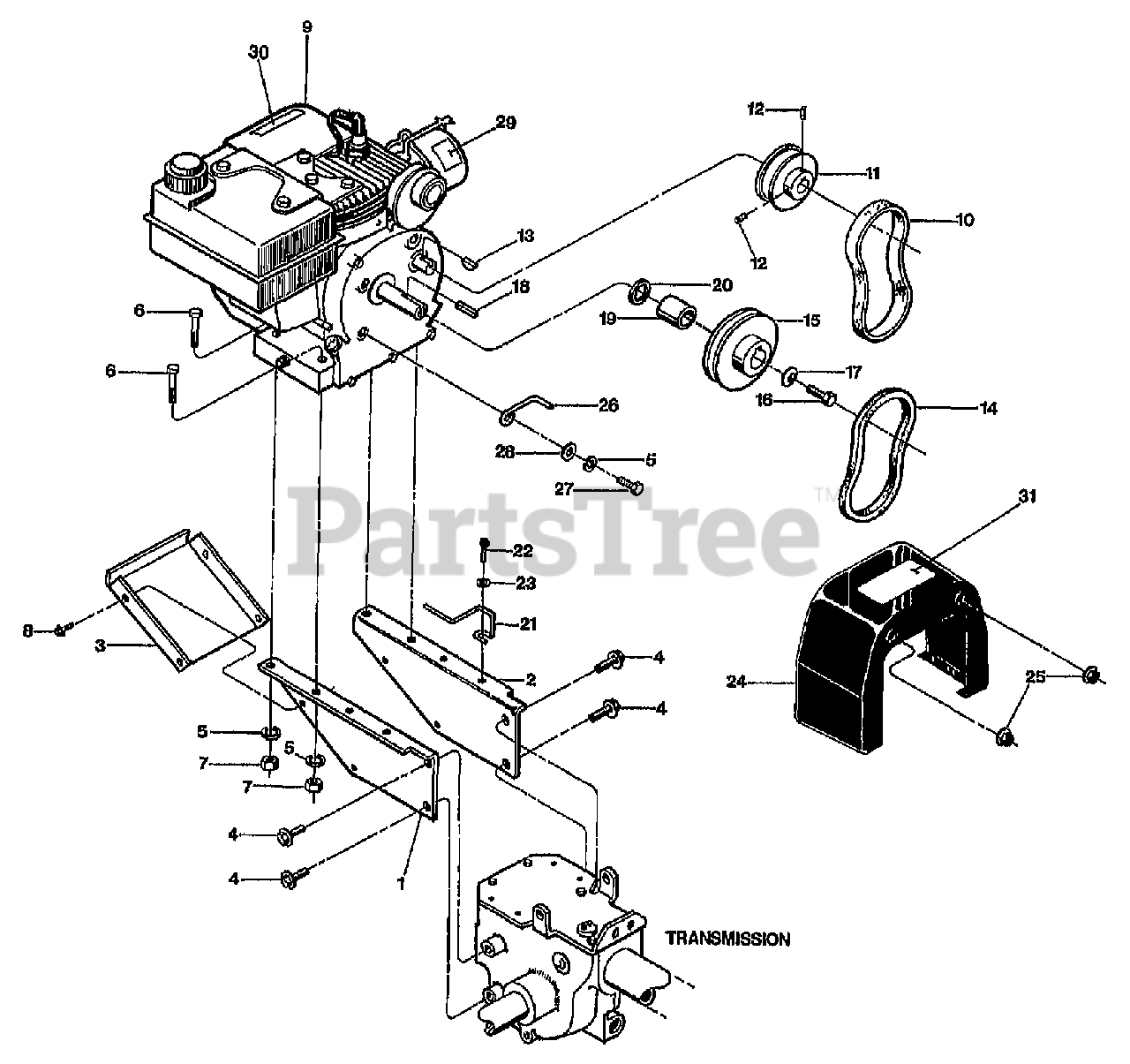

ENGINE, PULLEYS & BELTS Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

3

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$19.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90044

SCR-HFLK 5/16-18X.75 ZP

$

$

Currently unavailable

5

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

7

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1900396

SCR-HW M10-32X.5 THRD ROLL

$5.99

$

Usually ships in 3-6 days

0

9

0

ENGINE, FOR TILLER MODELS 15006 AND 12079 ONLY

$

$

Not available

10

Troy-Bilt 97075

BELT-FLAT (SEE BELT SET BELOW)
(Superseded to GW-97075)

$31.99

$

In Stock, Qty 17

0

11

Troy-Bilt 20882

PULLEY-REV DRILL/TAP

$

$

Currently unavailable

12

MTD 9561

SCR-SS 1/4-20 X .25

$

$

Not available

13

MTD 9361

KEY-WOODRUFF #5

$

$

Not available

14

Troy-Bilt 1909404

BELT-V GROOVE FWD SMFRAME (SEE BELT SET BELOW)
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

~N/A

BELT SET (INCL. 10 & 14)

$

$

Not available

15

MTD 20765

PULLEY-ENGINE MACH

$

$

Not available

16

Troy-Bilt GW-9549

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

17

MTD 9925

WASHER-.994X.413X.145

$

$

Not available

18

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.49

$

In Stock, Qty 17

0

19

Troy-Bilt 97078

SPACER-.938X.755X1.44

$

$

Currently unavailable

20

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.49

$

In Stock, only 3 left!

0

21

MTD 20555

GUIDE-BELT FWD

$

$

Not available

22

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.49

$

In Stock, only 2 left!

0

23

Troy-Bilt GW-9900

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

24

Troy-Bilt 20916

COVER-BELT W/DECAL (INCL. 31)
(Superseded to 731-05290)

$25.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 1904569

COVER-BELT W/DECAL (INCL. 31) 150060400101 & UP
(Superseded to 731-05290)

$25.99

$

In Stock, only 3 left!

0

25

Troy-Bilt GW-9848

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 20890

STOP-BELT

$

$

Currently unavailable

27

Troy-Bilt 9655

SCR-HH 5/16-24X.75 G5 ZP
(Superseded to 710-0157)

$3.99

$

In Stock, Qty 16

0

28

Troy-Bilt GW-9902

WASHER-FLAT 5/16 SAE
(Superseded to 736-0567)

$3.49

$

Usually ships in 3-6 days

0

29

MTD 55053

DECAL-HOT SURFACE

$

$

Not available

29

MTD 1904549

DECAL-HOT SURFACE 150060400101 & UP

$

$

Not available

30

MTD 1900766

DECAL-STARTING STABIL

$

$

Not available

31

Troy-Bilt 20818

DECAL-BELT COVER OPC
(Superseded to GW-20818)

$28.99

$

Usually ships in 3-6 days

0

31

MTD 1904557

DECAL-BELT COVER 150060400101 & UP

$

$

Not available
