15011 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0047261 & Above) HOOD & DEPTH Parts Diagram

Econo-Horse Rear-Tine Tiller

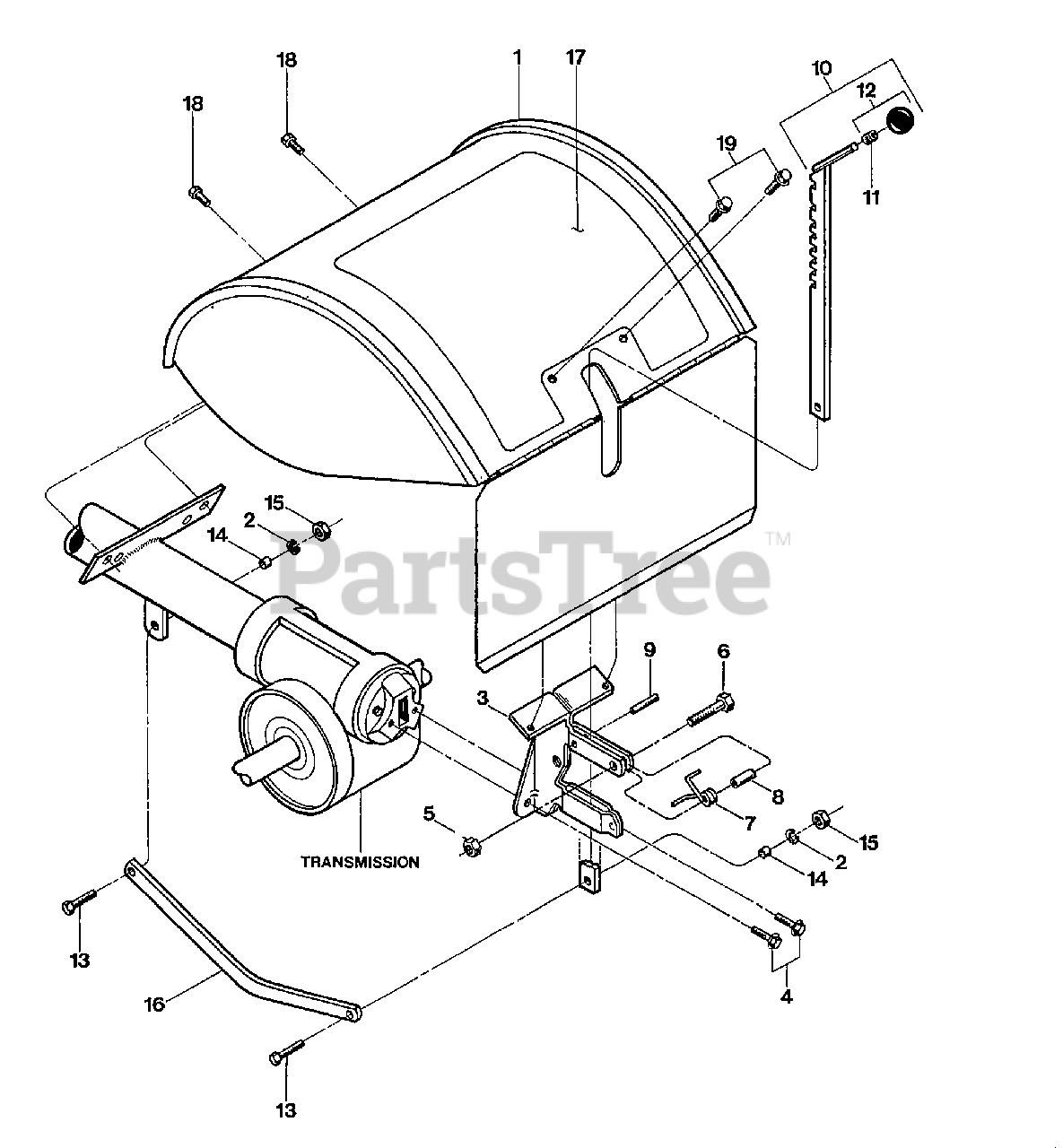

HOOD & DEPTH Parts Diagram

  • Title

1

Troy-Bilt 2621

HOOD W/DECAL ECONO OPC (INCL. #17)

$

$

Currently unavailable

2

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

3

Troy-Bilt 2527

BRKT W/ROLL PIN (9308)(INCL. #9)
(Superseded to GW-2527)

$167.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5ZP

$

$

Currently unavailable

5

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

6

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$4.49

$

In Stock, Qty 11

0

7

Troy-Bilt 9384

SPRING-TORSION
(Superseded to 732-04320)

$4.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 9534

SPACER-.250X.343X.375
(Superseded to GW-9534)

$4.49

$

In Stock, Qty 6

0

9

Troy-Bilt 9308

PIN-ROLL .25 X 1
(Superseded to 715-0108)

$5.49

$

In Stock, Qty 15

0

10

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB (INCL. #11 & 12)
(Superseded to 1900864)

$91.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$7.49

$

In Stock, Qty 6

0

12

Troy-Bilt 9119

KNOB-CONTROL (INCL. #11)
(Superseded to GW-9119)

$12.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

16

Troy-Bilt 20775

DRAG BAR-BENT
(Superseded to 1916185001)

$25.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 2718

DECAL-HOOD OPER INST

$

$

Currently unavailable

18

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
