15020 - Troy-Bilt Pony Rear-Tine Tiller (SN: 150200100101 - 150200400101) HOOD & DEPTH REGULATOR Parts Diagram

Pony Rear-Tine Tiller

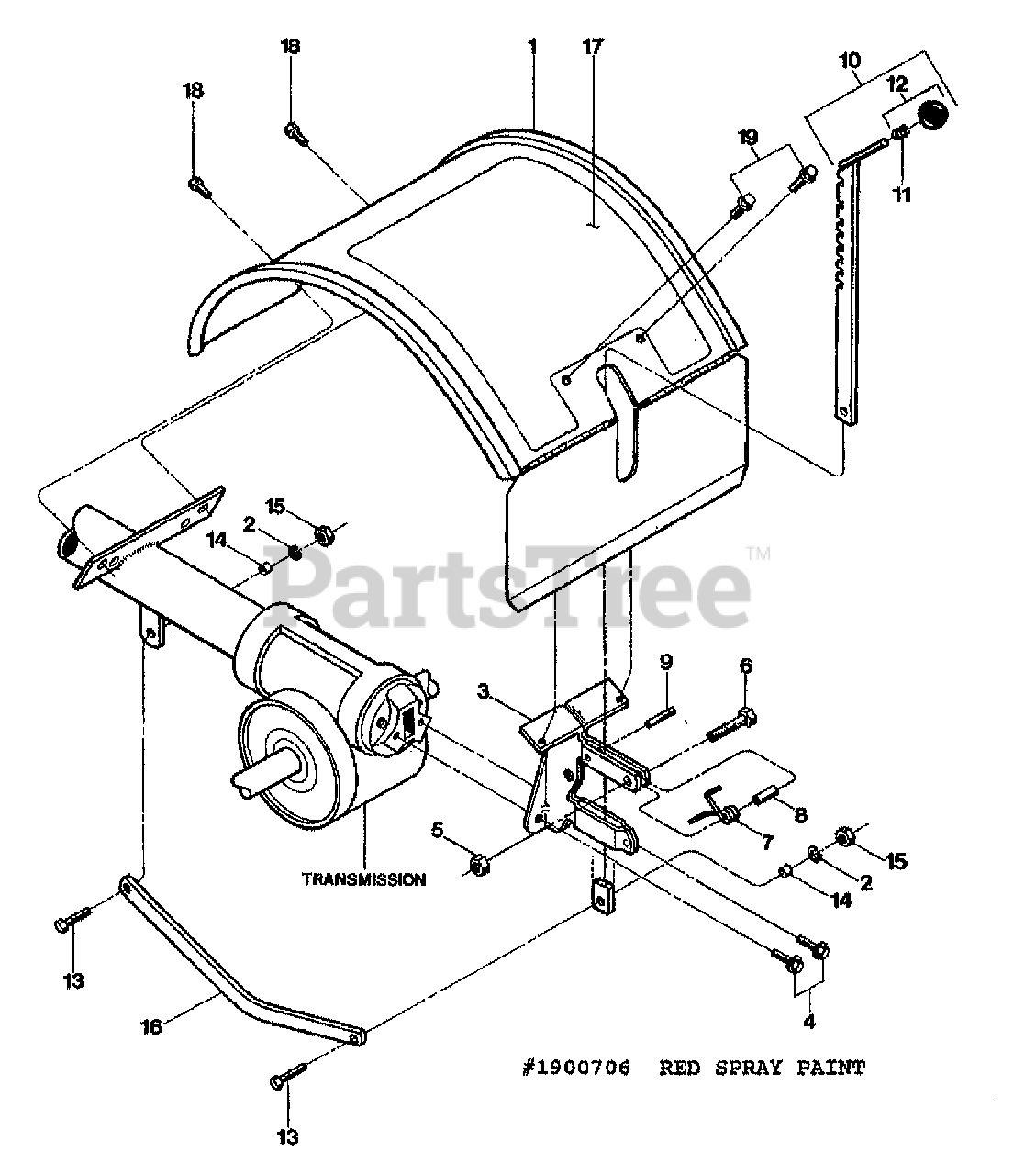

HOOD & DEPTH REGULATOR Parts Diagram

  • Title

1

Troy-Bilt 20861

HOOD W/DECALS PONY OPC (INCL. 17)
(Superseded to 686-04078-0638)

$184.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1904568

HOOD W/DECALS PONY (INCL 17) (15008,15009, 0400101 & HIGHER)
(Superseded to 686-04078-0638)

$184.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

3

Troy-Bilt 2527

BRKT W/ROLL PIN (9308)
(Superseded to GW-2527)

$147.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5ZP

$

$

Currently unavailable

5

Troy-Bilt 9811

NUT-LK 1/4-20

$

$

Currently unavailable

6

Troy-Bilt 9734

SCR-HH 1/4-20X1.0

$

$

Currently unavailable

7

Troy-Bilt 9384

SPRING-TORSION
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 14

0

8

Troy-Bilt 9438

SPACER-.250X.343X.375

$

$

Currently unavailable

9

Troy-Bilt 9308

PIN-ROLL .25 X 1
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1117A

DEPTH REGULATOR W/KNOB (INCL. 11 & 12)
(Superseded to 1900864)

$80.99

$

In Stock, Qty 9

0

11

Troy-Bilt 9120

RING-TOLERANCE .5325 ID
(Superseded to GW-9120)

$6.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 9119

KNOB-CONTROL (INCL. 11)
(Superseded to GW-9119)

$10.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

14

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

16

Troy-Bilt 20775

DRAG BAR-BENT
(Superseded to 1916185001)

$

$

Not available

17

Troy-Bilt 20925

DECAL-HOOD OPER INST
(Superseded to 777S30649)

$25.99

$

Usually ships in 3-6 days

0

17

MTD 1904545

DECAL-HOOD INST PONY (15008 & 15009 0400101 & HIGHER)

$

$

Not available

18

Troy-Bilt 9553

SCR-HWH 5/16-18 X .5 STH
(Superseded to 710-0607)

$6.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH (ATTACHES HOOD TO DEPTH REGULATOR BRACKET)
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0
