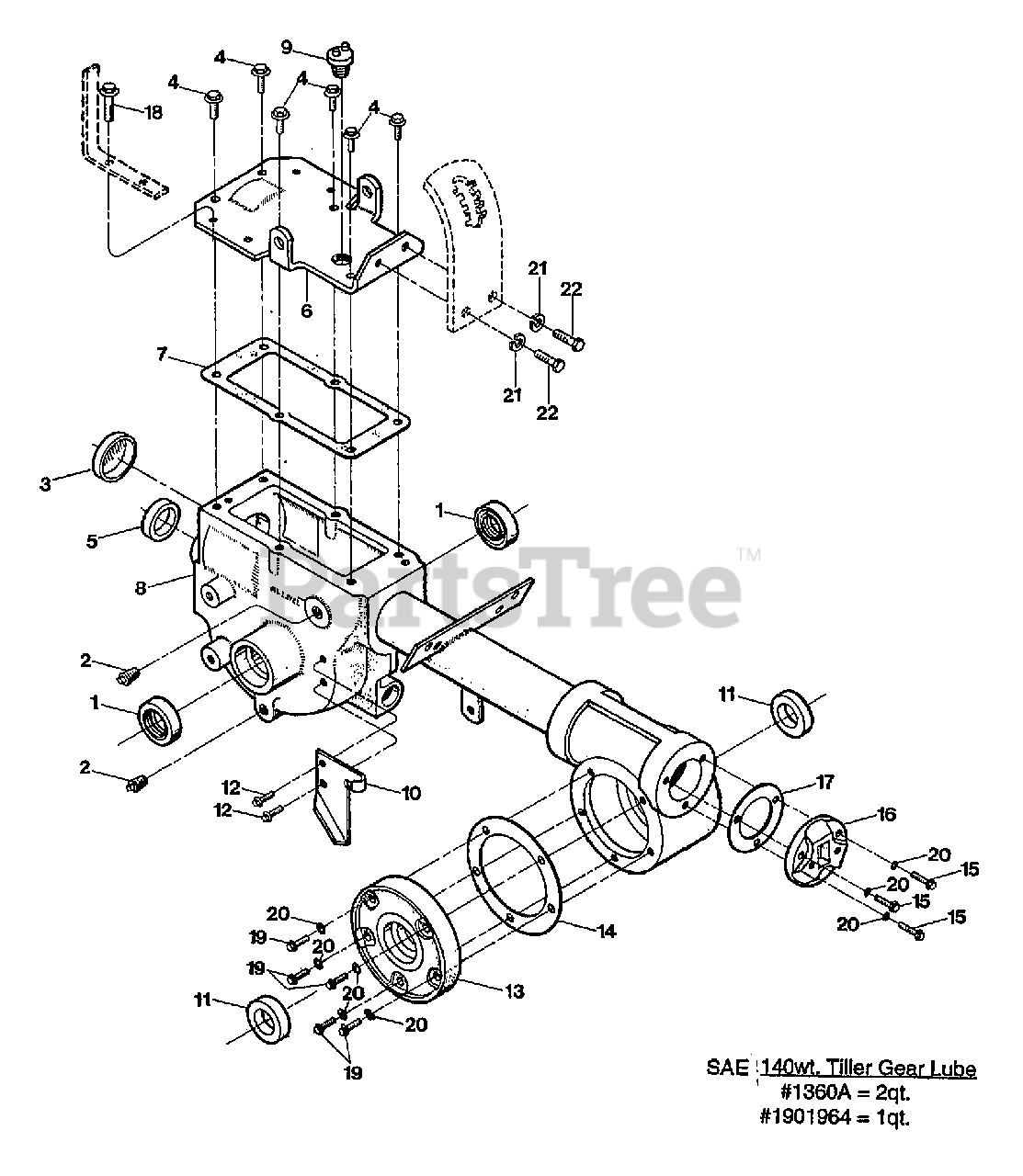

15020 - Troy-Bilt Pony Rear-Tine Tiller (SN: 150200100101 - 150200400101) TRANS. HSG. & SEALS/GASKETS Parts Diagram

Pony Rear-Tine Tiller

TRANS. HSG. & SEALS/GASKETS Parts Diagram

  • Title

1

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$3.99

$

In Stock, Qty 6

0

3

Troy-Bilt 97076

SEAL-BORE
(Superseded to 721-04001)

$9.99

$

In Stock, Qty 13

0

4

Troy-Bilt 90044

SCR-HFLK 5/16-18X.75

$

$

Currently unavailable

5

Troy-Bilt 85030

SEAL-PINION SHAFT PT/85030/00

$

$

Currently unavailable

6

Troy-Bilt 11513

KIT-COVER TRANS W/HDW (INCL. FOUR #18 & TWO EA. # 21 & 22)

$

$

Currently unavailable

7

Troy-Bilt 20694

GASKET-TRANS COVER
(Superseded to GW-20694P)

$4.99

$

In Stock, Qty 5

0

8

Troy-Bilt 20893

ASSM-TRANS A-UNIT P/ECHO
(Superseded to 919-04010)

$456.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9467

PLUG-OIL FILL 3/4-10
(Superseded to GW-9467)

$4.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 20889

PLATE-CABLE MT PNT

$

$

Currently unavailable

11

Troy-Bilt 97073

SEAL-TILLER SHAFT
(Superseded to 921-04035)

$10.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 90038

SCR-HFLK 5/16-18X.62 G5

$

$

Currently unavailable

13

Troy-Bilt 20873

COVER-TILLER HSG MACH (INCL. 5 #19)
(Superseded to GW-20873)

$100.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1129-1

GASKET-TILLER COVER (FITS ALL COVERS)
(Superseded to GW-1129-1099)

$8.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 1915089

KIT-SEALING SCRS (3)

$

$

Not available

16

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

17

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 90045

SCR-HFLK 5/16-18X1.00

$

$

Currently unavailable

19

Troy-Bilt 1908211

SCR-HXSKT 1/4-20X.625
(Superseded to 1915068)

$3.99

$

In Stock, Qty 13

0

20

0

ITEM NO LONGER USED

$

$

Not available

21

Troy-Bilt 9913

WASHER-LK .375

$

$

Currently unavailable

22

Troy-Bilt 9709

SCR-HH 3/8-16X.75 G5

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
