15025 - Troy-Bilt Sprayer I, 5 Gallon (SN: S002082 - S007569) MAIN ASSEMBLY Parts Diagram

Sprayer I, 5 Gallon

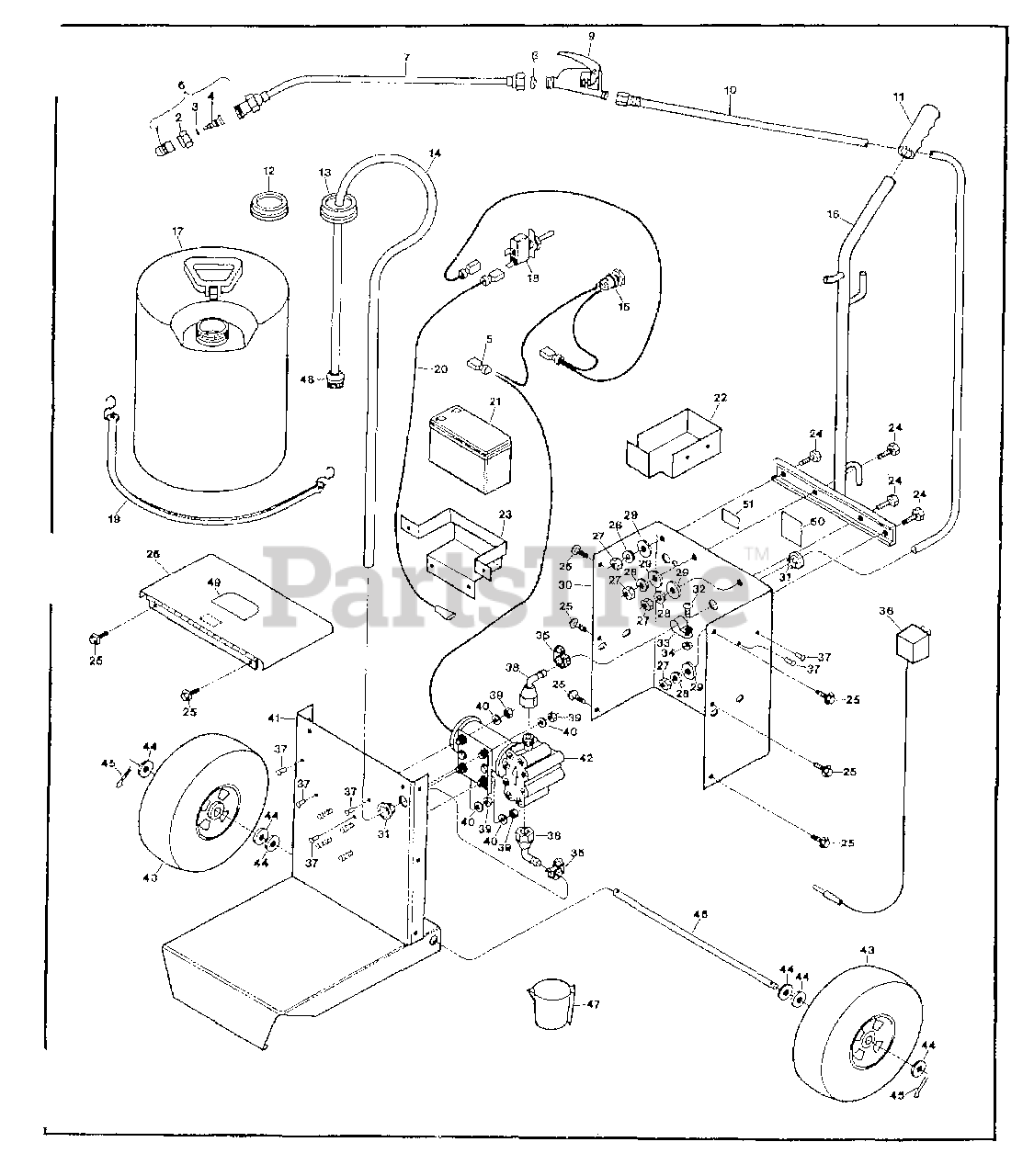

MAIN ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 10835

TIP-BRASS BODY #5457 10835

$

$

Currently unavailable

2

Troy-Bilt 10839

ASSM-ADJ CONE W5500

$

$

Currently unavailable

3

Troy-Bilt 10837

RING-O 5500 CONE JET

$

$

Currently unavailable

4

Troy-Bilt 10836

ASSM-ADJ CONE W5500

$

$

Currently unavailable

5

0

TERMINAL

$

$

Not available

6

Troy-Bilt 10834

ASSM-ADJ CONE W5500

$

$

Currently unavailable

7

Troy-Bilt 10825

EXTENSION-SPRAY 10825

$

$

Currently unavailable

8

Troy-Bilt 10842

WASHER-TEFLON/BRASS 10842

$

$

Currently unavailable

9

Troy-Bilt 10824

VALVE-SHUT OFF PISTOL 10824

$

$

Currently unavailable

10

Troy-Bilt 10845

HOSE W/FITTINGS 10845

$

$

Currently unavailable

11

Troy-Bilt 9471

GRIPS-HANDLEBAR

$

$

Currently unavailable

12

Troy-Bilt 10868

CAP-E/S TANK 10868

$

$

Currently unavailable

13

Troy-Bilt 10869

CAP W/HOLE 10869

$

$

Currently unavailable

14

Troy-Bilt 10841

HOSE-1/4" X 4' 10841

$

$

Currently unavailable

15

Troy-Bilt 10871

KIT-CHARGING 10871

$

$

Currently unavailable

16

Troy-Bilt 10859

ASSM-HANDLE

$

$

Currently unavailable

17

Troy-Bilt 10801

TANK-REPL

$

$

Currently unavailable

18

Troy-Bilt 10830

SWITCH-TOGGLE 10830

$

$

Currently unavailable

19

Troy-Bilt 10826

STRAP-RUBBER 10826

$

$

Currently unavailable

20

Troy-Bilt 10870

WIRE-ON/OFF-SWITCH PUMP

$

$

Currently unavailable

21

Troy-Bilt 10815

BATTERY-12V EL SPRAYER 10815

$

$

Currently unavailable

22

Troy-Bilt 10849

BRKT-ACCESSORY

$

$

Currently unavailable

23

MTD 10850

ASSM-BATTERY BRKT

$

$

Not available

24

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

25

9589

SCR-HW M10-24X.375 ZP

$

$

Not available

26

Troy-Bilt 10864

LID W/DECAL

$

$

Currently unavailable

27

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

28

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

29

Troy-Bilt 9933

WASHER-1.25X.375X.1 ZP

$

$

Currently unavailable

30

Troy-Bilt 10857

HSG-CHASSIS W/DECALS

$

$

Currently unavailable

31

Troy-Bilt 10827

BUSHING-SNP 10827

$

$

Currently unavailable

32

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

33

Troy-Bilt 10828

CLAMP-CABLE 10828

$

$

Currently unavailable

34

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

35

Troy-Bilt 10829

CLAMP-HOSE 10829

$

$

Currently unavailable

36

Troy-Bilt 10814

CHARGER-BATTERY EL SPRAYER

$

$

Currently unavailable

37

Troy-Bilt 10840

RIVET-POP 1/8-3/8 10840

$

$

Currently unavailable

38

Troy-Bilt 10843

SWIVEL-90 ELBOW 10843

$

$

Currently unavailable

39

Troy-Bilt 9839

NUT-HEX M10-24

$

$

Currently unavailable

40

Troy-Bilt 9922

WASHER-#10

$

$

Currently unavailable

41

Troy-Bilt 10854

ASSM-CHASSIS

$

$

Currently unavailable

42

Troy-Bilt 10848

PUMP-SHURFLO 11511 5GAL

$

$

Currently unavailable

43

Troy-Bilt 10823

ASSM-TIRE & WHEEL

$

$

Currently unavailable

44

Troy-Bilt 9908

WASHER-1.75X.625X.11

$

$

Currently unavailable

45

Troy-Bilt 03204

PIN-COTTER 3/32 X 1 1/4

$

$

Currently unavailable

46

Troy-Bilt 10847

AXLE-EL SPRAY 10847

$

$

Currently unavailable

47

Troy-Bilt 10833

CUP-MEASURING 8OZ 10833

$

$

Currently unavailable

48

Troy-Bilt 10832

STRAINER-EL SPRAYER 10832

$

$

Currently unavailable

49

Troy-Bilt 10816

DECAL-LOGO EL SPRAYER

$

$

Currently unavailable

50

Troy-Bilt 10817

DECAL-CHARGE 10817

$

$

Currently unavailable

51

Troy-Bilt 10818

DECAL-WARNING E/S 10818

$

$

Currently unavailable
