15030 - Troy-Bilt Sprayer IV, 25 Gallon (SN: 150300200202 & Above) MAIN ASSEMBLY Parts Diagram

Sprayer IV, 25 Gallon

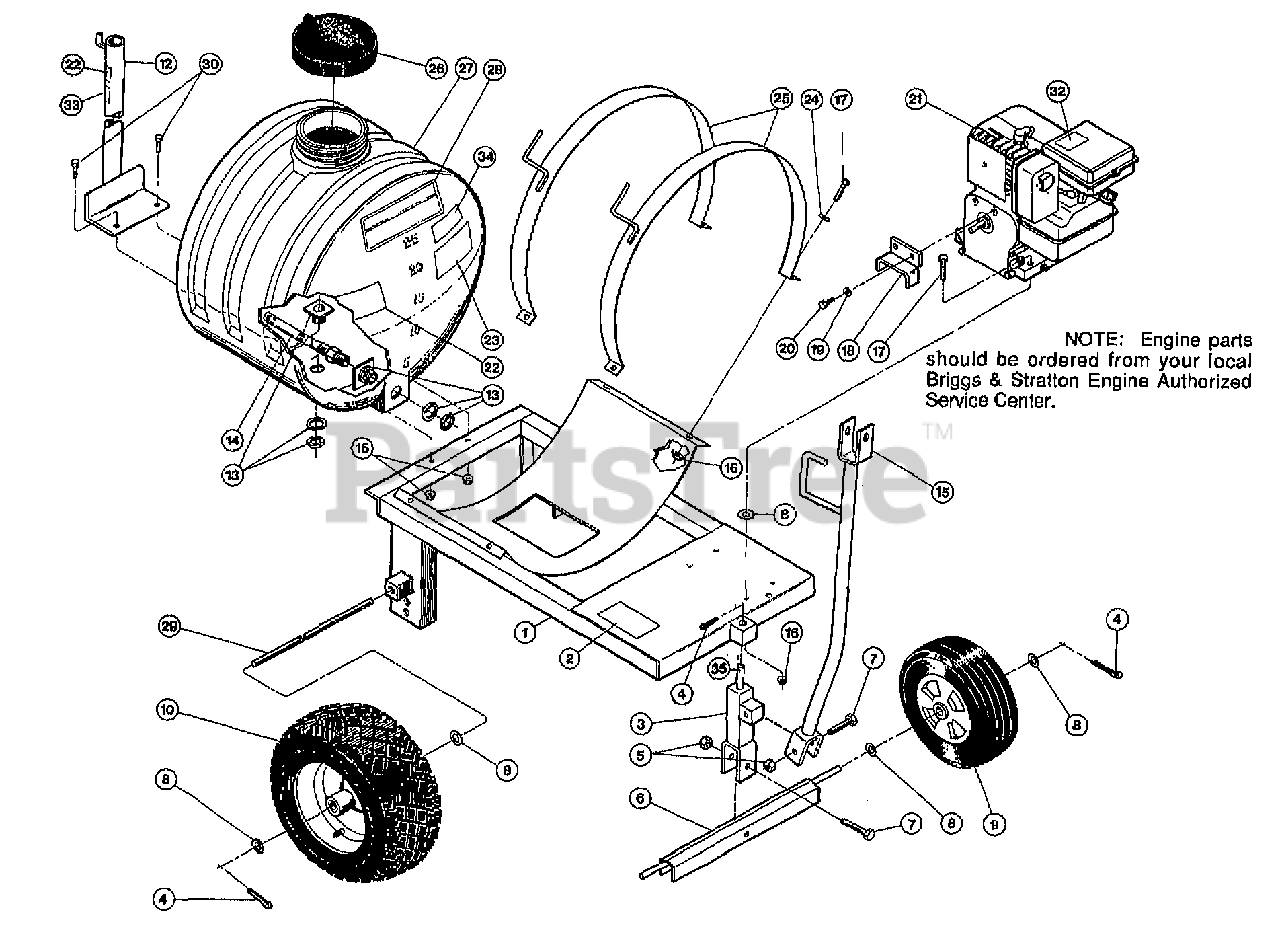

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1981192010

ASSM-UNDERCARRIAGE W21401501

$

$

Currently unavailable

2

MTD 1984004

DECAL-SAVE

$

$

Not available

3

MTD 1981116010

ASSM-AXLE PIVOT FRONT

$

$

Not available

4

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

5

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

6

MTD 1981109010

ASSM-FRONT AXLE SPRAYER

$

$

Not available

7

MTD 1758232

SCR-HH 5/8-11X2.25 G5 ZP

$

$

Not available

8

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1985857

ASSM-WHEEL/TIRE 10X4

$

$

Currently unavailable

10

MTD 1985775

ASSM-WHEEL/TIRE 15X6

$

$

Not available

11

0

NOT USED

$

$

Not available

12

MTD 1985814

MAST-BOOM W/DECALS W20201502

$

$

Not available

13

Troy-Bilt 1984065

ASSM-BULK HEAD W21254002

$

$

Currently unavailable

14

MTD 1984110

AGITATOR-JET W33710019

$

$

Not available

15

MTD 1981180010

HANDLE-TOW BAR

$

$

Not available

16

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.49

$

In Stock, Qty 20+

0

17

MTD 1186333

SCR-HFLK 5/16-18X1.50

$

$

Not available

18

Troy-Bilt 1981119001

COVER-SHAFT W/A

$

$

Currently unavailable

19

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

20

MTD 1111696

SCR-HH 5/16-24X.50

$

$

Not available

21

Troy-Bilt 1984439

ENGINE-3.5HP

$

$

Currently unavailable

22

MTD 1984002

DECAL-DANGER AVOID W2045146

$

$

Not available

23

MTD 1984005

DECAL-ENG SPEED W2045149

$

$

Not available

24

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

25

MTD 1981176001

BAND-TANK

$

$

Not available

26

MTD 1984069

CAP-TANK W21254503

$

$

Not available

27

Troy-Bilt 1984064

ASSM-TANK 25 GAL W/DECALS

$

$

Currently unavailable

28

MTD 1984006

DECAL-25GAL SPRAY W2045165

$

$

Not available

29

Troy-Bilt 1985774

AXLE-REAR 25GAL SPRAYER

$

$

Currently unavailable

30

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

31

0

NOT USED

$

$

Not available

32

Troy-Bilt 1984085

DECAL-CAUTION HOT SURFACE

$

$

Currently unavailable

33

MTD 1984003

DECAL-40PSI CAUTION W2045147

$

$

Not available

34

MTD 1983999

DECAL-DAVIOD SPRAY W0245106

$

$

Not available

35

MTD 1984504

SHAFT-PIVOT W20051003P

$

$

Not available
