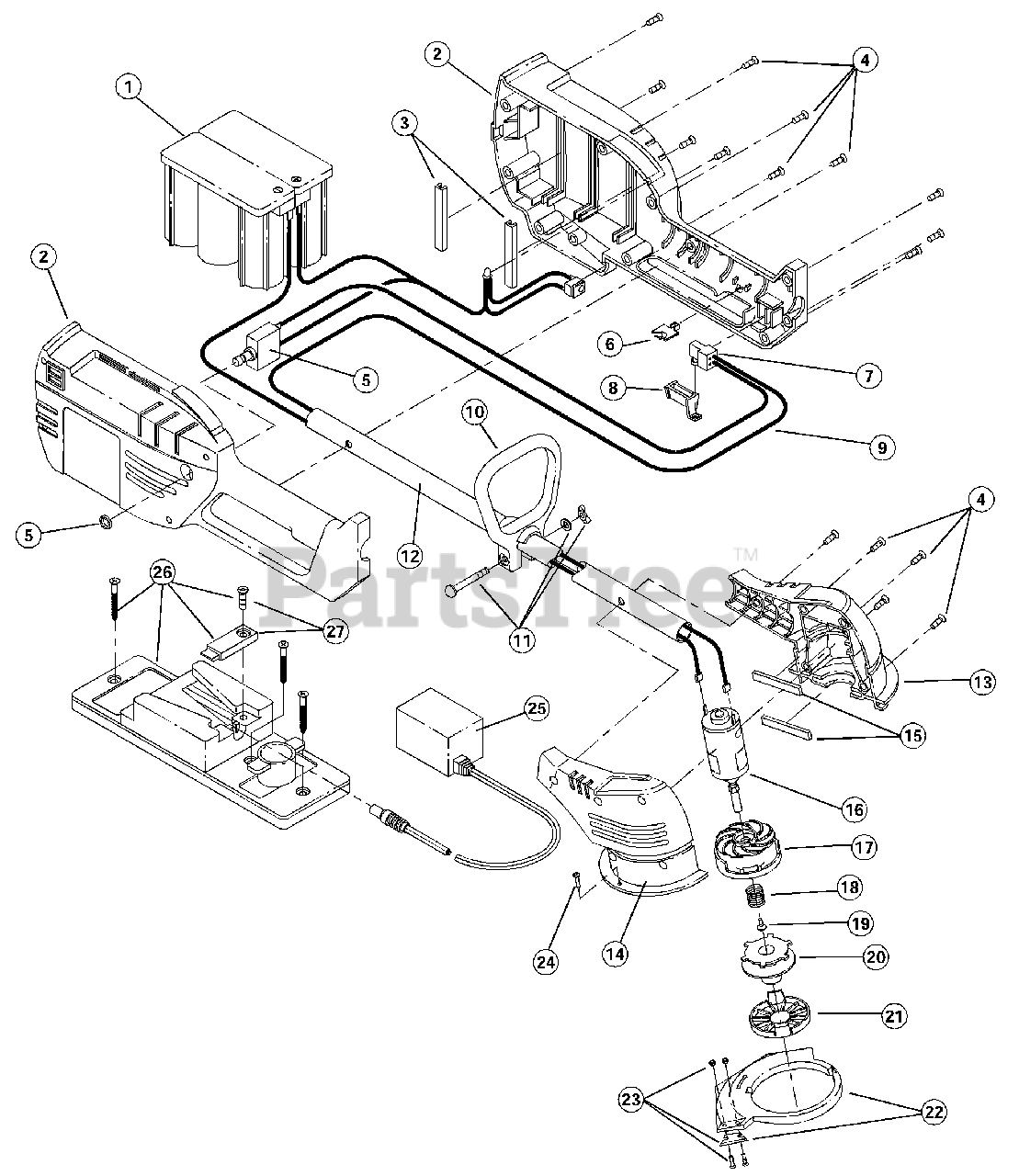

150r (41AE150E034) - Ryobi String Trimmer, Electric 12 Volt Battery Trimmer Parts Diagram

String Trimmer, Electric

12 Volt Battery Trimmer Parts Diagram

  • Title

1

MTD 791-181624

Battery

$

$

Not available

2

MTD 791-180366

Battery Housing

$

$

Not available

3

MTD 791-180363

Battery Cushions (qty. 5)

$

$

Not available

4

MTD 791-180300

Housing Screw Set

$10.99

$

Usually ships in 3-6 days

0

5

MTD 791-180365

Thermal Overload Switch

$25.99

$

Usually ships in 3-6 days

0

6

MTD 791-180364

Lock-Out Button
(Superseded to 791-182705)

$8.99

$

Usually ships in 3-6 days

0

7

MTD 791-180150

Switch

Note: (includes 8)

$

$

Not available

8

MTD 791-182318

Trigger

$

$

Not available

9

MTD 791-180362

Wiring Harness Assembly

$

$

Not available

10

MTD 791-153064

D-Handle

Note: (includes 11)

$

$

Not available

11

MTD 791-181587

Handle Hardware

$18.99

$

In Stock, only 1 left!

0

12

MTD 791-180367

Motor Wires Tube

$

$

Not available

13

MTD 791-182713

Left Motor Housing
(Superseded to 753-04356)

$

$

Not available

14

MTD 791-182714

Right Motor Housing
(Superseded to 753-04357)

$

$

Not available

15

MTD 791-180369

Motor Supports

$

$

Not available

16

MTD 791-182715

Motor Assembly

$73.99

$

Usually ships in 3-6 days

0

17

MTD 791-180372

Outer Spool and Eyelet

$

$

Not available

18

MTD 791-180374

Spring

$10.99

$

Usually ships in 3-6 days

0

19

MTD 753-04010

Screw

$

$

Not available

20

MTD 791-180292

Inner Reel
(Superseded to 791-180292B)

Note: (includes 0.080" Line)

$18.99

$

Usually ships in 3-6 days

0

21

MTD 791-180376

Reel Cover

$

$

Not available

22

MTD 791-180293

Guard and Blade Assembly

$

$

Not available

23

MTD 791-180377

Blade Assembly

$

$

Not available

24

MTD 791-182469

Guard Screw
(Superseded to 753-1202)

$3.99

$

Usually ships in 3-6 days

0

25

MTD 791-180294

12 Volt Charger

$

$

Not available

26

MTD 791-180295

Charging Station Stand

Note: (includes 27)

$

$

Not available

27

MTD 791-180378

Barrel Clamp Assembly

$

$

Not available

MTD 791-610375

.080" Replacement Line, 50 ft.

Note: Not Shown

$

$

Not available

MTD 791-180327

Cutting Head Assembly

Note: Not Shown; (includes 17-21)

$

$

Not available
