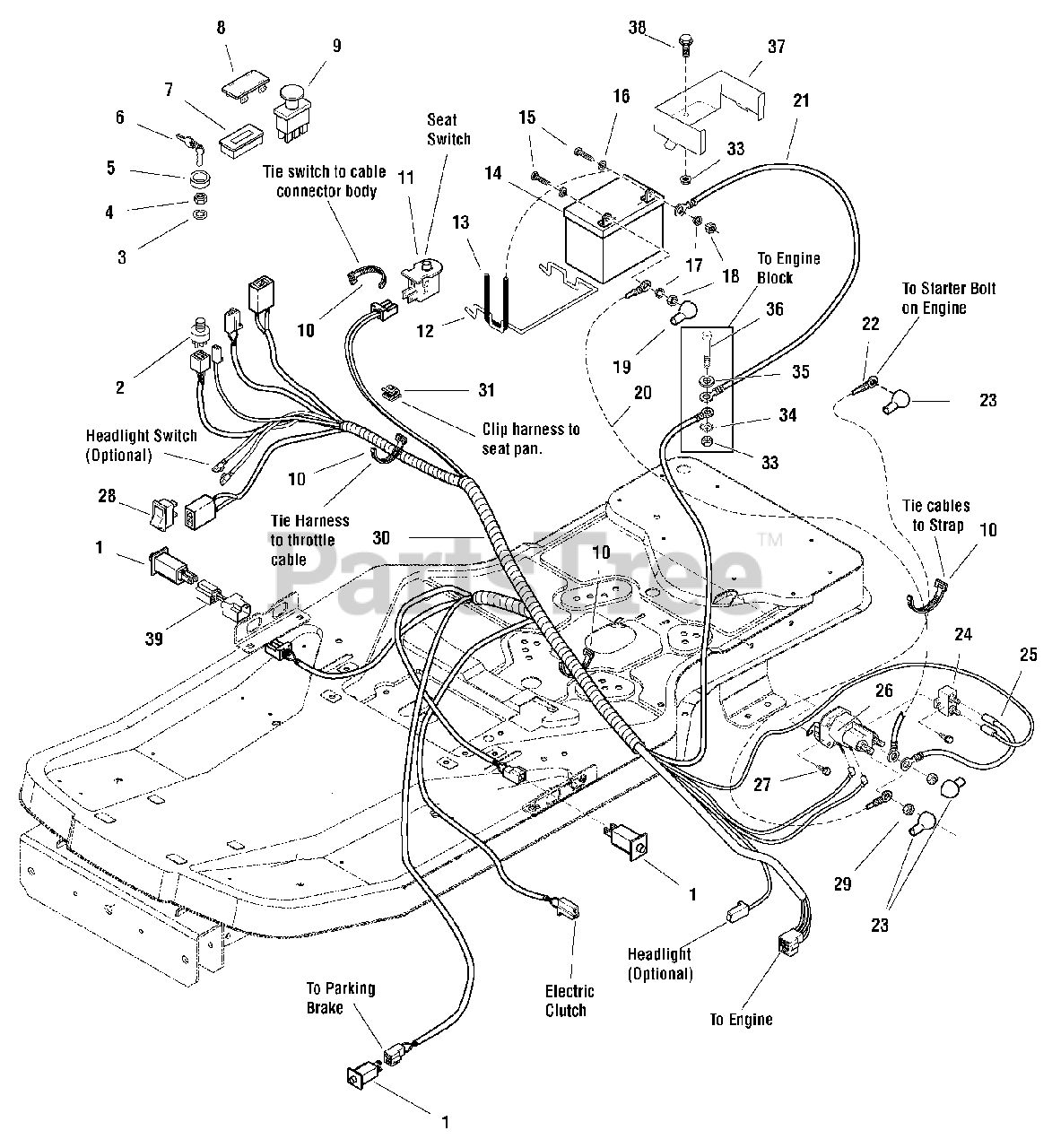

150Z (CSC 18533) (7800392) - Snapper 33" Zero-Turn Mower, 18.5hp Electrical Group (7501731) Parts Diagram

33" Zero-Turn Mower, 18.5hp

Electrical Group (7501731) Parts Diagram

  • Title

1

Snapper 7022886

SWITCH, Push Button (NO/NC)
(Superseded to 7022886YP)

Note: (was 1732006)

$14.99

$

In Stock, Qty 20+

0

2

Snapper 1716061

SWITCH ASSEMBLY, Ignition
(Superseded to 1686734SM)

$32.99

$

In Stock, Qty 20+

0

3

Snapper 1960547

LOCKWASHER, Internal Tooth 5/8" Thin
(Superseded to 1960547SM)

$4.49

$

In Stock, Qty 6

0

4

Snapper 1717549

NUT, 5/8-32 Hex Flange (Ignition Switch Die Cast)
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 1717550

COVER, Ignition Switch
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 9

0

6

Snapper 1717163

KEYS, (set of two, one coated)
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 14

0

6

Snapper 1737836

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) (set of two, one coated)
(Superseded to 1737836YP)

Note: (used on 7800620)

$20.99

$

In Stock, only 1 left!

0

7

Snapper 1731185

HOUR METER, No Alarms
(Superseded to 1731185SM)

$60.99

$

In Stock, only 1 left!

0

8

Snapper 1722611

PLUG, Hole (Black Plastic)
(Superseded to 1722611SM)

$6.99

$

Usually ships in 2-12 days

0

9

Snapper 1722887

SWITCH, PTO, Push/Pull Symbols
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

10

Snapper 2825094

TIE, Self Locking, .184 Wide 7.31 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

11

Snapper 7023354

SWITCH, Push Button (NC) (Gray)
(Superseded to 7023354YP)

Note: (was 1732005)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 1667805

BRACE, Battery, .19 Dia. Wire
(Superseded to 1667805SM)

$

$

Not available

13

Snapper 1665872

STRAP, Black Rubber, .19 Square 7.88 O.D. Battery
(Superseded to 1665872SM)

$11.99

$

In Stock, only 2 left!

0

14

Snapper 7060618

BATTERY, 12 Volt, 230 CCA
(Superseded to 1685215SM)

$

$

Not available

15

Snapper 2823341

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

16

Snapper 2821319

WASHER, 1/4, .27 I.D. x .62 O.D. x .05 Thick
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

17

Snapper 2816964

WASHER, 1/4" Spring Lock
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

18

Snapper 2816622

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

19

Snapper 1677296

BOOT, Insulator, Red PVC Warning
(Superseded to 1677296SM)

$6.49

$

In Stock, only 2 left!

0

20

Snapper 1716549

CABLE, #6 x 10" Long, Red, Battery Positive, Two-Ring Terminals
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper 7075038

CABLE, #6 x 34" Long, Red, Battery Positive, Two-Ring Terminals
(Superseded to 7075038YP)

Note: (used on 7800392 model)

$25.99

$

Usually ships in 2-12 days

0

21

Snapper 1713163

CABLE, #6 x 26" Long, Black, Two-Ring Terminals
(Superseded to 1713163SM)

$24.99

$

Usually ships in 2-12 days

0

22

Snapper 1727668

CABLE, #6 x 15" Long, Red, Two-Ring Terminals
(Superseded to 1727668SM)

$11.99

$

Usually ships in 2-12 days

0

23

Snapper 1724588

COVER, Terminal Red PVC
(Superseded to 1724588SM)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 1665238

BREAKER, Circuit 12 Volt 20 AMP
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 14

0

25

Snapper 1665237

WIRE, 12 Gage
(Superseded to 1665237SM)

$11.99

$

In Stock, only 1 left!

0

26

Snapper 7075622

SOLENOID, Super Trombetta - 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 11

0

27

Snapper 1925003

SCREW, 1/4-20 x 1/2" Hex Washer Head Screw Black (Taptite)
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 1734141

SWITCH, Electric Height-of-Cut
(Superseded to 1734141SM)

$47.99

$

In Stock, Qty 20+

0

29

Snapper 2860750

NUT, 5/16-24 Hex Keps
(Superseded to 2860750SM)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 7103103

HARNESS, Wiring
(Superseded to 7103103YP)

Note: (was 7102581)

$170.99

$

Usually ships in 2-12 days

0

31

Snapper 2172434

CLIP, Cable, .390 Wire Dia.
(Superseded to 2172434SM)

$4.99

$

In Stock, only 2 left!

0

32

Snapper 1730185

DECAL, Danger Poison (Not Shown)
(Superseded to 1730185SM)

$6.49

$

Usually ships in 2-12 days

0

33

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Snapper 2820427

WASHER, 3/8" External Tooth Lock
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 1919326

WASHER, .312 (.34 I.D. x.75 O.D.)
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

36

Snapper 1921978

SCREW, 5/16-18 x 2" Hex Head Cap
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

37

Snapper 1735351BM

BRACKET, Battery Hold Down
(Superseded to 1735351BMYP)

Note: (used on 33" Deck Models)

$43.99

$

Usually ships in 2-12 days

0

38

Snapper 7091905

BOLT, 5/16-18 x 7/8" Hex Flange Lock
(Superseded to 7091905SM)

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 1734025

WIRING ASSEMBLY, Jumper All Conditions Shutdown (CE/Export)
(Superseded to 1734025SM)

$14.99

$

Usually ships in 2-12 days

0
