150Z (ESC 20420) (2690716) - Snapper 42" Zero-Turn Mower, 20hp 42" Mower Deck - Housing & Arbor Group Parts Diagram

42" Zero-Turn Mower, 20hp

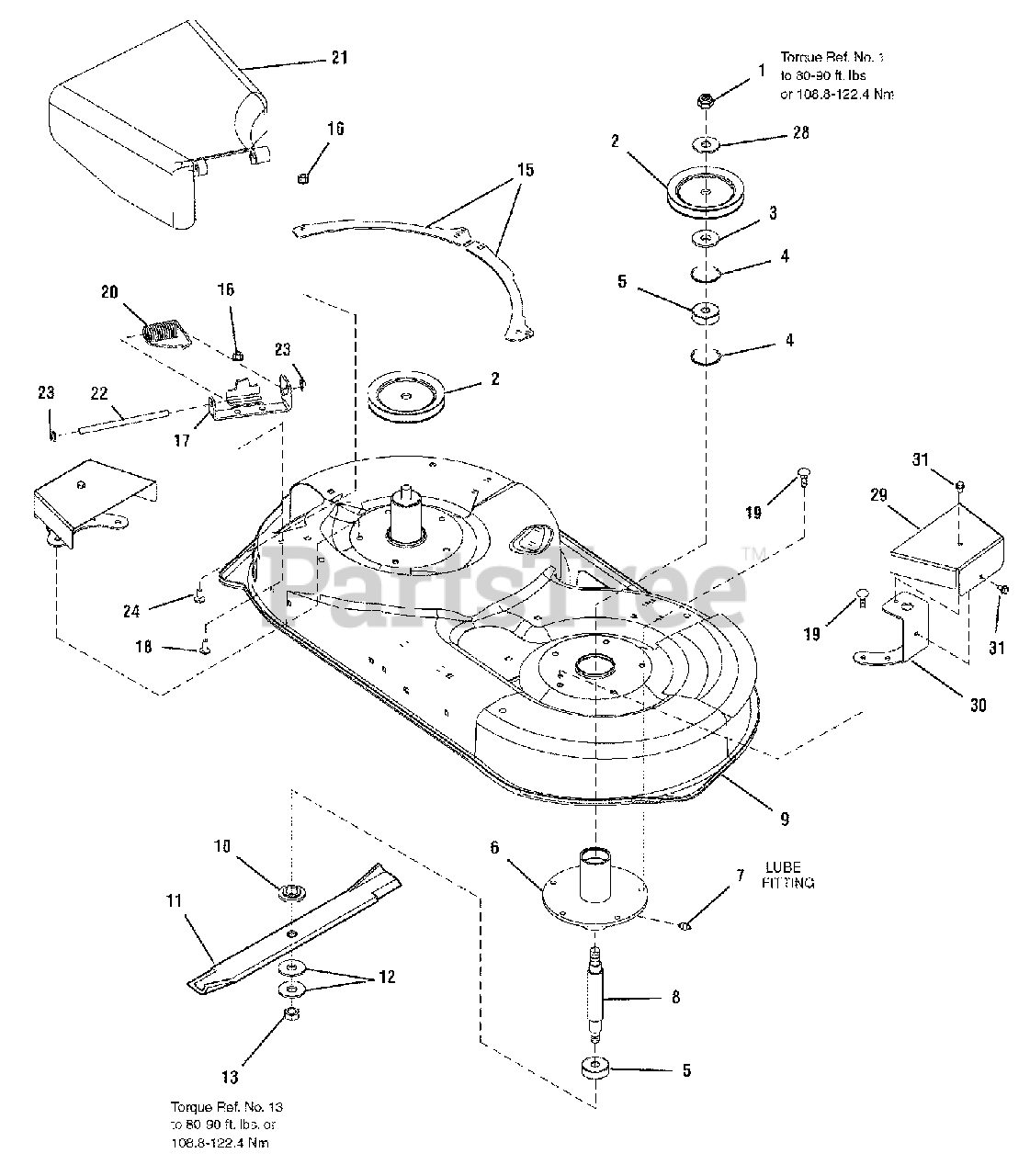

42" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Snapper 1922014SM

NUT, Hex Nylock, 5/8
(Superseded to 703904)

$4.99

$

In Stock, Qty 11

0

2

Snapper 1734064SM

PULLEY, Drive

$35.99

$

Usually ships in 2-12 days

0

3

Snapper 7072440SM

SPACER, Pulley

$9.49

$

In Stock, Qty 15

0

4

Snapper 7012491SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7013313

BEARING, Spindle, 1.78" OD, .750 ID, .610 Wide
(Superseded to 2108202SM)

Note: (or 2108202SM)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 1731372ASM

TUBE & PLATE ASSEMBLY, Spindle 5.24" Tall
(Superseded to 1731372BMYP)

$98.99

$

In Stock, only 1 left!

0

7

Snapper 1704314SM

LUBE, Fitting
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7072537SM

SHAFT, Spindle 7.181" Long

$43.99

$

In Stock, only 3 left!

0

9

Snapper 1730100D

HOUSING, 42" Mower
(Superseded to 1687791YP)

$911.99

$

Usually ships in 2-12 days

0

10

Snapper 1731917SM

WASHER, Spindle Blade

$9.49

$

In Stock, Qty 17

0

11

Snapper 1731898ASM

BLADE, 21.16" Long, .976" Hole
(Superseded to 1731898BZYP)

$20.99

$

In Stock, Qty 20+

0

12

Snapper 7024467SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7091633SM

NUT, Hex, 9/16

$4.99

$

In Stock, Qty 11

0

15

Snapper 721083

PLATE, Rear
(Superseded to 092426E701MA)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 1960686SM

NUT, ESNA, 5/16
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

17

Snapper 721369

BRACKET, Hinge
(Superseded to 094956E701MA)

$22.99

$

In Stock, only 2 left!

0

18

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 1923683SM

SCREW, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

20

Snapper 720154

SPRING, Torsion
(Superseded to 0166X4MA)

$6.49

$

In Stock, only 1 left!

0

21

Snapper 721339

DEFLECTOR
(Superseded to 094707MA)

$108.99

$

In Stock, only 1 left!

0

22

Snapper 721371

ROD, Deflector, 6.13" Long, .375" DIA
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 1 left!

0

23

Snapper 1960093SM

PUSHNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

24

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

28

Snapper 7090880

LOCKWASHER, Internal Tooth, 5/8
(Superseded to 1960547SM)

Note: (Was 7091546SM)

$4.49

$

In Stock, Qty 6

0

29

Snapper 1734701ASM

COVER, Pulley

$42.99

$

Usually ships in 2-12 days

0

30

Snapper 1734039ASM

SUPPORT, Pulley Cover

$34.99

$

Usually ships in 2-12 days

0

31

Snapper 1924856SM

SCREW, Taptite, 5/16 - 18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0
