150Z (ESC 20420) (2690716) - Snapper 42" Zero-Turn Mower, 20hp Electrical Group - Main Harness Parts Diagram

42" Zero-Turn Mower, 20hp

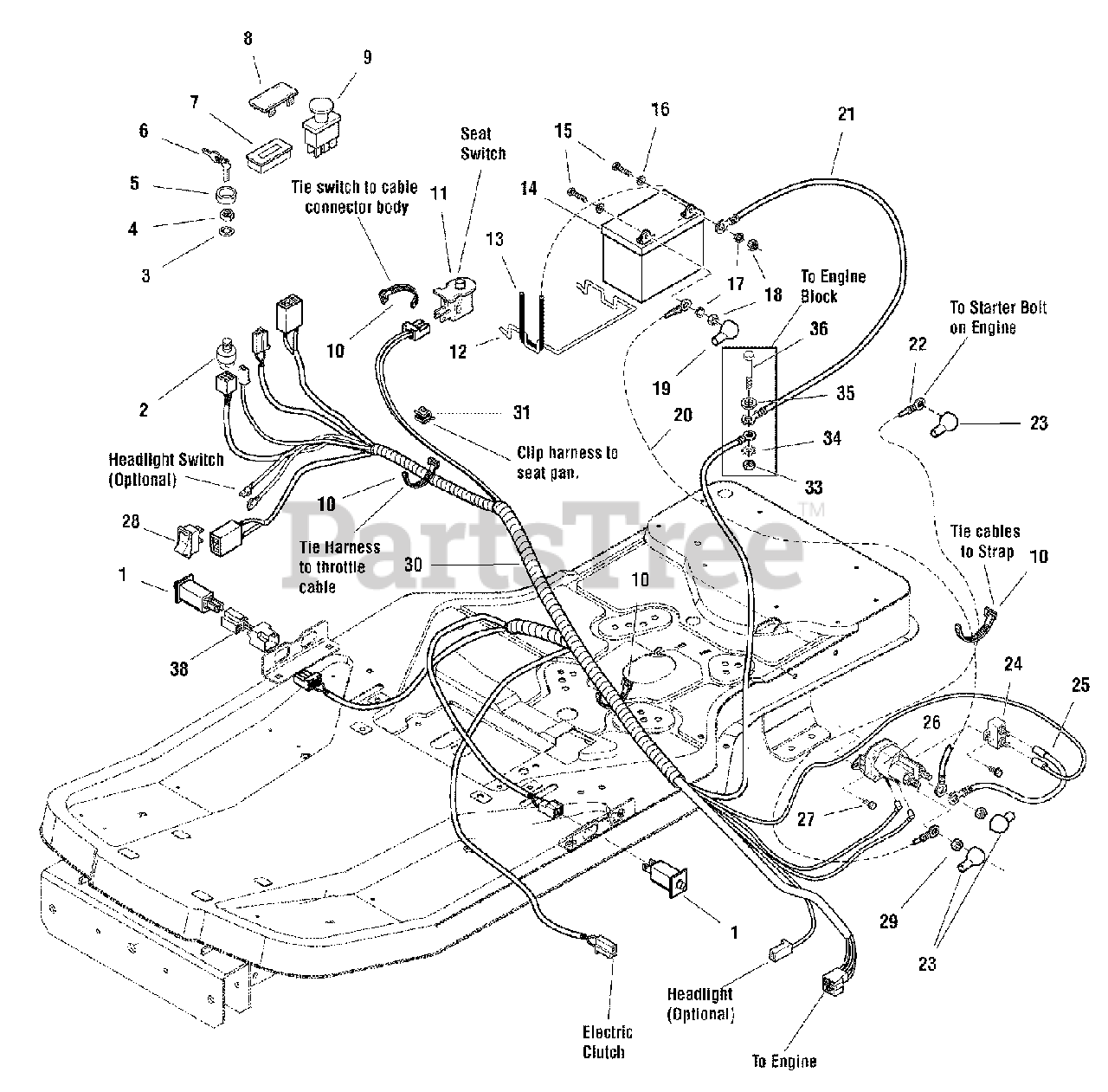

Electrical Group - Main Harness Parts Diagram

  • Title

1

Snapper 1732006SM

SWITCH, Push Button
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

2

Snapper 1716061

SWITCH ASSEMBLY, Ignition, 6 Pin Indak (W/Keys Ref. #6)
(Superseded to 1686734SM)

$32.99

$

In Stock, Qty 20+

0

3

Snapper 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, Qty 6

0

4

Snapper 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW Die Cast
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

6

Snapper 1717163SM

KEYS

Note: (Set of Two)

$8.99

$

In Stock, Qty 13

0

7

Snapper 1731185SM

HOUR METER, No Alarms

$60.99

$

In Stock, only 1 left!

0

8

Snapper 1722611SM

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

9

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

10

Snapper 2825094SM

TIE, Self Locking, .184 WD 7.31 LG
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

11

Snapper 1732005SM

SWITCH, Push Button
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 1667805SM

BRACE, Battery, .19 DIA Wire

$

$

Not available

13

Snapper 7100449SM

STRAP, Black Rubber, .19 SQ 7.88 OD Battery
(Superseded to 1685215SM)

$

$

Not available

14

Snapper 7060618

BATTERY, 12 Volt 6 Cell 230 CCA
(Superseded to 1685215SM)

Note: (Was 7100449SM)

$

$

Not available

15

Snapper 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

16

Snapper 2821319SM

WASHER, 1/4, .27 ID x .62 OD x .05 THK
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

17

Snapper 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

18

Snapper 2816622SM

NUT, Hex, 1/4-20 NC-2B
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

19

Snapper 1677296SM

BOOT, Insulator, Red PVC Warning

$6.49

$

In Stock, only 2 left!

0

20

Snapper 1716549SM

CABLE, # 6 x 10 LG, Red Two-Ring Terminals
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 1713163SM

CABLE, # 6 X 26 LG, Two-Ring Terminals

$24.99

$

Usually ships in 2-12 days

0

22

Snapper 1727668SM

CABLE, # 6 x 15 LG, Two-Ring Terminals

$11.99

$

Usually ships in 2-12 days

0

23

Snapper 1724588SM

COVER, Terminal Red PVC

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 1665238SM

BREAKER, Circuit, 12 Volt 20 AMP

$14.99

$

In Stock, Qty 11

0

25

Snapper 1665237SM

WIRE, 12 Gauge, 7.9 LG

$11.99

$

In Stock, only 1 left!

0

26

Snapper 7075622SM

SOLENOID, Two 1/4-20 Terminals, Trombetta, Two Spade
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 11

0

27

Snapper 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 1734141SM

SWITCH, Electric Height of Cut

$47.99

$

In Stock, Qty 17

0

29

Snapper 80002727

NUT, 1/4-20 Hex Serrated Flange
(Superseded to 703233)

Note: (Was 7091584)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 1734127SM

HARNESS, Wiring

$

$

Not available

31

Snapper 2172434SM

CABLE, Clip

$4.99

$

In Stock, only 1 left!

0

33

Snapper 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Snapper 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

36

Snapper 80003615

CAPSCREW, Hex Head, 5/16-18 x 2, G5
(Superseded to 703906)

Note: (Was 1921221SM)

$4.99

$

In Stock, Qty 7

0

38

Snapper 1734025SM

WIRING ASSEMBLY, Jumper All Conditions Shutdown

$14.99

$

In Stock, only 1 left!

0
