150Z (EZT 18542 BVE) (2690621) - Snapper 42" Zero-Turn Mower, 18.5hp 42" Mower Deck - Housing & Arbor Group Parts Diagram

42" Zero-Turn Mower, 18.5hp

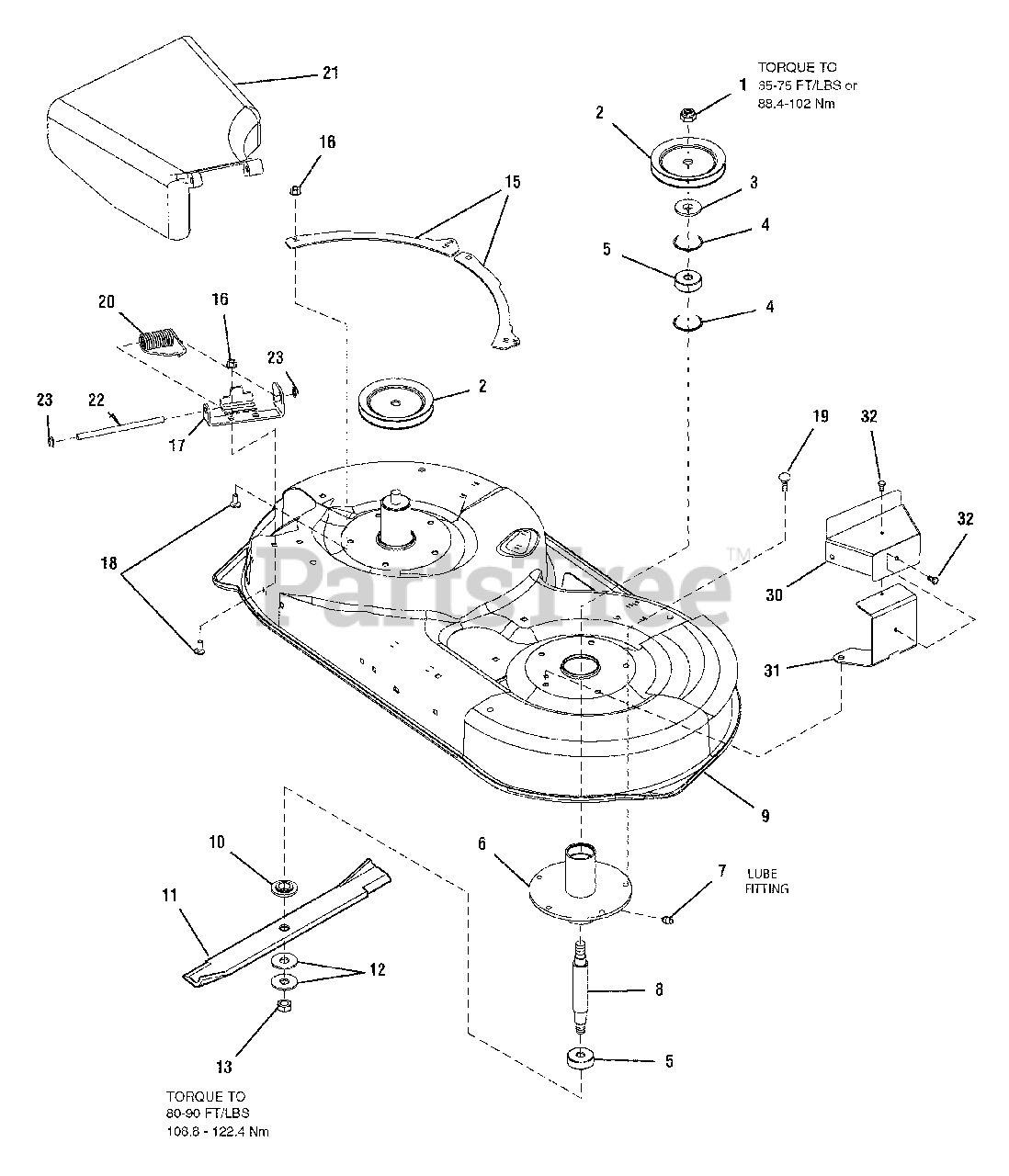

42" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Snapper 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

2

Snapper 1734064SM

PULLEY, 7"

$35.99

$

Usually ships in 2-12 days

0

3

Snapper 7072440SM

SPACER, Pulley

$9.49

$

In Stock, Qty 15

0

4

Snapper 7012491SM

RETAINING RING, External 1-3/4

$4.49

$

In Stock, Qty 20+

0

5

Snapper 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

6

Snapper 1731372ZSM

TUBE & PLATE ASSEMBLY, Spindle
(Superseded to 1731372BMYP)

$98.99

$

In Stock, only 1 left!

0

7

Snapper 1704314SM

LUBE FITTING, 1/4 Drive with Check Ball
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7072537SM

SHAFT, Spindle

$43.99

$

In Stock, only 3 left!

0

9

Snapper 1687280SM

HOUSING, 42"

$505.99

$

Usually ships in 2-12 days

0

10

Snapper 1731917SM

WASHER, Spindle Blade, Powdered Metal

$9.49

$

In Stock, Qty 17

0

11

Snapper 1731898ASM

BLADE, Mower 42"
(Superseded to 1731898BZYP)

$20.99

$

In Stock, Qty 20+

0

12

Snapper 7024467SM

WASHER, Belleville, 1-3/4

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7091633SM

NUT, Hex, 9/16

$4.99

$

In Stock, Qty 11

0

15

Snapper 721083A

PLATE, Rear 42"
(Superseded to 092426E701MA)

$10.99

$

Usually ships in 2-12 days

0

16

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 721369A

BRACKET, Hinge
(Superseded to 094956E701MA)

$22.99

$

In Stock, only 2 left!

0

18

Snapper 1931333SM

CARRIAGE BOLT, 5/1-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

19

Snapper 1923683SM

CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0

20

Snapper 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, only 1 left!

0

21

Snapper 094707MA

DEFLECTOR & SUPPORT ASSEMBLY, Chute Riveted

$108.99

$

In Stock, only 1 left!

0

22

Snapper 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

23

Snapper 1960093SM

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 15

0

31

Snapper 1734039ASM

SUPPORT, Pulley Cover

$34.99

$

Usually ships in 2-12 days

0

30

Snapper 1734035ASM

COVER, Pulley

$43.99

$

Usually ships in 2-12 days

0

32

Snapper 1924856SM

CAPSCREW, Hex Washer Head Taptite, #10 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0
