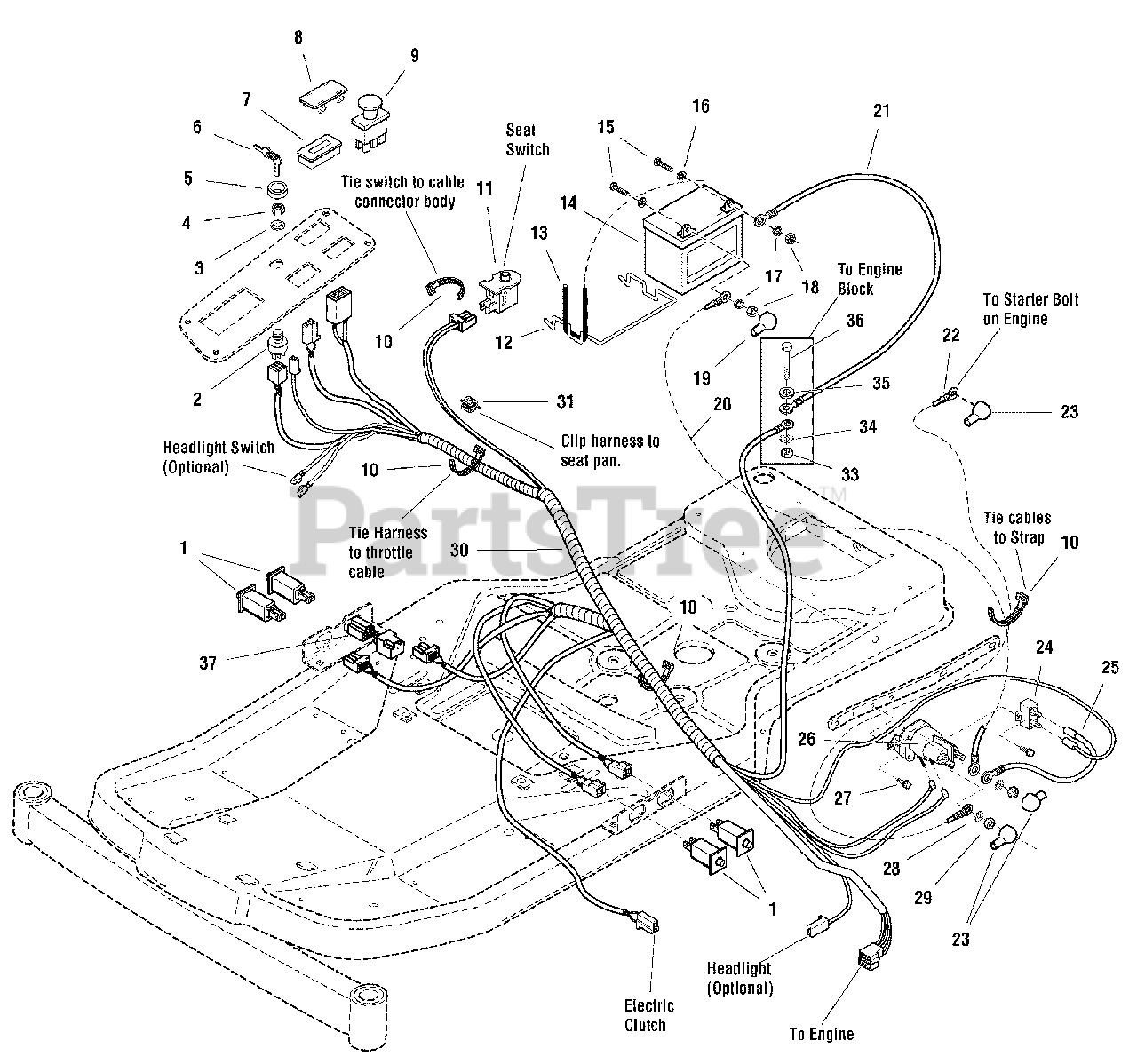

150Z (EZT 18542 BVE) (2690621) - Snapper 42" Zero-Turn Mower, 18.5hp Electrical Group Parts Diagram

42" Zero-Turn Mower, 18.5hp

Electrical Group Parts Diagram

  • Title

1

Snapper 1732006SM

SWITCH, Push Button
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

2

Snapper 1686734SM

SWITCH ASSEMBLY, Ignition

Note: (Includes Ref. Nos. 3, 4, 5 & 6)

$32.99

$

In Stock, Qty 20+

0

3

Snapper 1960547SM

LOCKWASHER, Internal Tooth, Ignition Switch

$4.49

$

In Stock, Qty 6

0

4

Snapper 1717549SM

NUT, Hex Flange, 5/8-32, Ignition Switch
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

6

Snapper 1717163SM

KEYS

Note: (Set of Two Keys)

$8.99

$

In Stock, Qty 14

0

7

Snapper 1731185SM

METER, Hour Digital with Oil & Lube Alarms

$60.99

$

In Stock, only 1 left!

0

8

Snapper 1722611SM

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

9

Snapper 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

10

Snapper 2825094SM

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

11

Snapper 1732005SM

SWITCH, Push Button, Seat Switch
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 1667805SM

BRACE, Battery

$

$

Not available

13

Snapper 1665872SM

STRAP, Black

$11.99

$

In Stock, only 2 left!

0

14

Snapper 1685215SM

BATTERY, 12 Volt, 6 Cell, 340 Amps

$

$

Not available

15

Snapper 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

16

Snapper 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

17

Snapper 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

18

Snapper 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

19

Snapper 1677296SM

BOOT, Insulator

$6.49

$

In Stock, only 2 left!

0

20

Snapper 1716549SM

CABLE, #6 x 10, 2 Ring Terminals
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 1707056SM

CABLE, #6 x 15, 2 Ring Terminals

$10.99

$

Usually ships in 2-12 days

0

22

Snapper 1727668SM

CABLE, #6 x 15, 2 Ring Terminals

$11.99

$

Usually ships in 2-12 days

0

23

Snapper 1724588SM

COVER, Terminal

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 1665238SM

BREAKER, Circuit, 12 Volt, 20 Amps with Tab

$14.99

$

In Stock, Qty 12

0

25

Snapper 1665237SM

WIRE, 12 GA

$11.99

$

In Stock, only 1 left!

0

26

Snapper 1724815SM

SOLENOID, 4 Pole, 12 Volt DC
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 6

0

27

Snapper 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, G5
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 2820426SM

LOCKWASHER, External Tooth

$4.49

$

In Stock, only 1 left!

0

29

Snapper 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 1727801SM

HARNESS, Wiring

$98.99

$

Usually ships in 2-12 days

0

31

Snapper 2172434SM

CLIP, Cable

$4.99

$

In Stock, only 2 left!

0

33

Snapper 1931277SM

NUT, Hex Flange Whiz Lock 3/8-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Snapper 2820427SM

WASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

36

Snapper 1921221SM

CAPSCREW, Hex Head 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

37

Snapper 1734025SM

WIRING ASSEMBLY, Jumper All Conditions Shut-Down

$14.99

$

Usually ships in 2-12 days

0
