150Z (SC 26520) (7800630) - Snapper 52" Zero-Turn Mower, 26hp Mower Lift Group (52" Deck) Parts Diagram

52" Zero-Turn Mower, 26hp

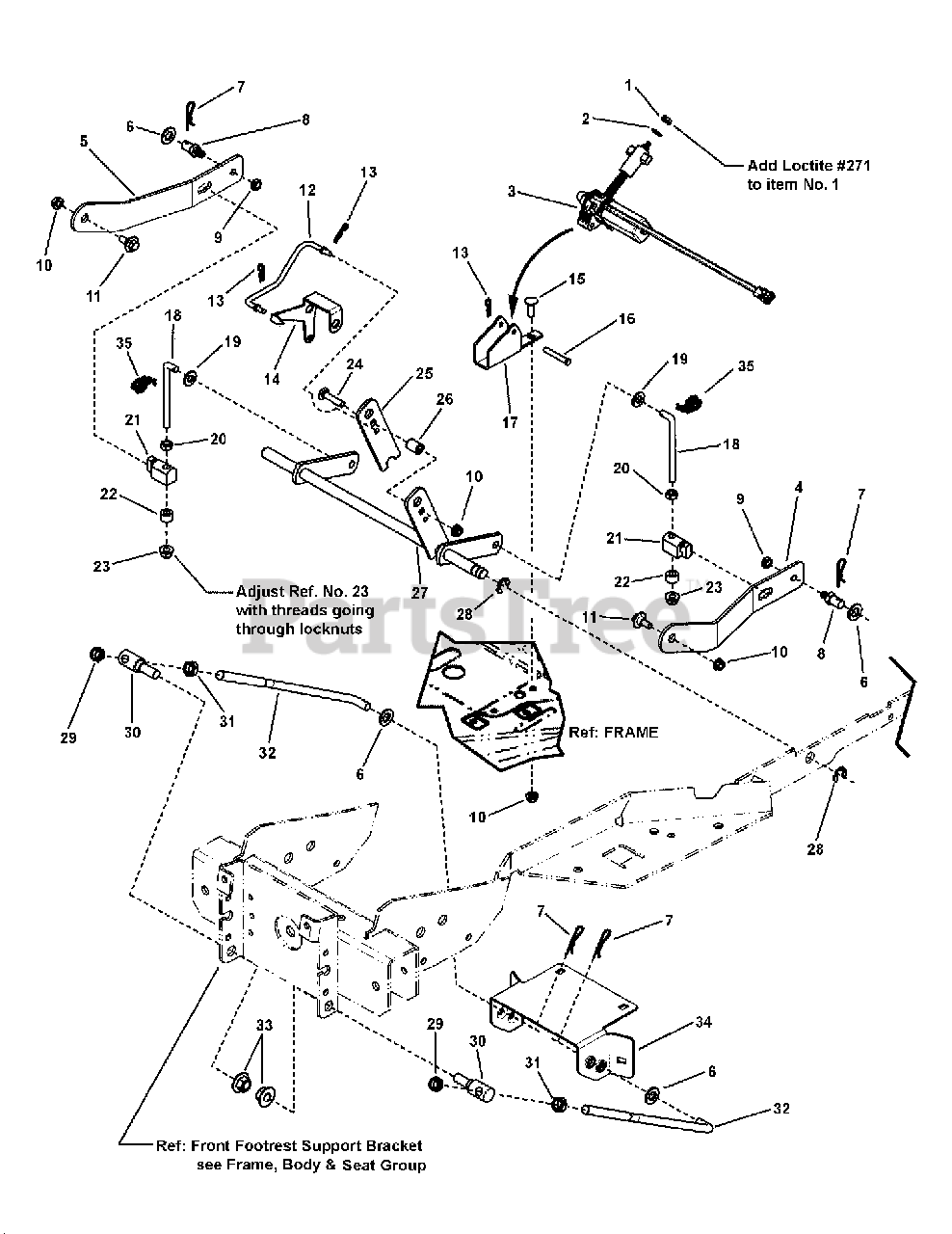

Mower Lift Group (52" Deck) Parts Diagram

  • Title

1

Snapper 1960757

NUT, 1/4-20 Hex, L.H. Thread
(Superseded to 1960757SM)

$5.49

$

In Stock, only 1 left!

0

2

Snapper 1921319

WASHER, 1/4" Flat (.27 I.D. x .62 O.D.)
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

3

Snapper 1738294

MOTOR, Linear Actuator (Electric)
(Superseded to 1753528YP)

$

$

Not available

4

Snapper 1733535BM

ARM, Mower Lift L.H.
(Superseded to 1733535ASM)

$70.99

$

Usually ships in 2-12 days

0

5

Snapper 1733536BM

ARM, Mower Lift R.H.
(Superseded to 1733536BMYP)

$86.99

$

Usually ships in 2-12 days

0

6

Snapper 1960170

WASHER, 1/2" Flat (0.51 I.D. x 1.00 O.D. x .10 Thick)
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 1960074

CLIP, Hair Pin .093 Dia.
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 721221

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 13

0

9

Snapper 1960251

NUT, 3/8-16 Hex Center Lock Jam
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

10

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 720107

SHOULDER BOLT, 5/16-18
(Superseded to 009X67MA)

$5.49

$

In Stock, Qty 6

0

12

Snapper 7104286

ROD, Height-of-Cut Indicator
(Superseded to 7104286YP)

$14.99

$

Usually ships in 2-12 days

0

13

Snapper 1722460

HAIR PIN
(Superseded to 703430)

$3.49

$

In Stock, Qty 10

0

14

Snapper 1733454

INDICATOR, Height-of-Cut
(Superseded to 1733454SM)

$19.99

$

Usually ships in 2-12 days

0

15

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

16

Snapper 1668344

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7301148BZ

BRACKET, Electric Motor Mount
(Superseded to 7301148BZYP)

$12.99

$

Usually ships in 2-12 days

0

18

Snapper 1734217

ROD, Mower Lift, 3/8-16 Thread
(Superseded to 1734217SM)

$14.99

$

In Stock, Qty 20+

0

19

Snapper 1924940

WASHER, .375 Flat (.41 I.D. x .87 O.D.)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 1916950

NUT, HEX 3/8-16 Hex
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

21

Snapper 1731894

TRUNNION, Powdered Metal
(Superseded to 1731894SM)

$9.99

$

In Stock, Qty 20+

0

22

Snapper 1666294

SPACER, .385 I.D. x .6697 O.D. x .455 Long (Powdered Metal)
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

23

Snapper 1960687

NUT, 3/8-16 Hex Flange Nyloc
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 1931337

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR5
(Superseded to 80003669)

$4.49

$

In Stock, Qty 10

0

25

Snapper 1734336BM

ARM, Lift Trunnion
(Superseded to 1734336ASM)

$62.99

$

Usually ships in 2-12 days

0

26

Snapper 1673796

SPACER, .328 I.D. x .625 O.D. x .781 Long (Powdered metal)
(Superseded to 1673796SM)

$24.99

$

Usually ships in 2-12 days

0

27

Snapper 1733356BM

WELDMENT, Lift Shaft
(Superseded to 1733356ASM)

$112.99

$

Usually ships in 2-12 days

0

28

Snapper 1704420

RING, External (Klipring) for .625 Dia. Shaft
(Superseded to 1704420SM)

$4.99

$

In Stock, Qty 20+

0

29

Snapper 1960379

NUT, 1/2-13 Hex Jam
(Superseded to 1960379SM)

$4.99

$

In Stock, only 2 left!

0

30

Snapper 1737417

TRUNNION, 1/2-13 Thread
(Superseded to 1737417YP)

$21.99

$

Usually ships in 2-12 days

0

31

Snapper 1913744

NUT, 1/2-13 Hex Jam
(Superseded to 1913744SM)

$4.99

$

In Stock, only 2 left!

0

32

Snapper 1736081

ROD, Front Rail, 52" Mower (1/2-13 Thread)
(Superseded to 1736081YP)

$12.99

$

In Stock, Qty 20+

0

33

Snapper 1930644

NUT, HEX FLANGE 1/2-13 Hex Flange Two Way Lock
(Superseded to 1930644SM)

$3.49

$

In Stock, only 1 left!

0

34

Snapper 1736071BM

HITCH, Front, 52" Mower
(Superseded to 1736071BMYP)

$29.99

$

Usually ships in 2-12 days

0

35

Snapper 7091593

COTTER PIN, Self Locking, 3/8, YZ
(Superseded to 703355)

$3.99

$

In Stock, Qty 20+

0
