150Z (ZT 2450) (2690647-00) - Snapper 50" Zero-Turn Mower, 24hp 50" Mower Deck - Clutch & Support Group Parts Diagram

50" Zero-Turn Mower, 24hp

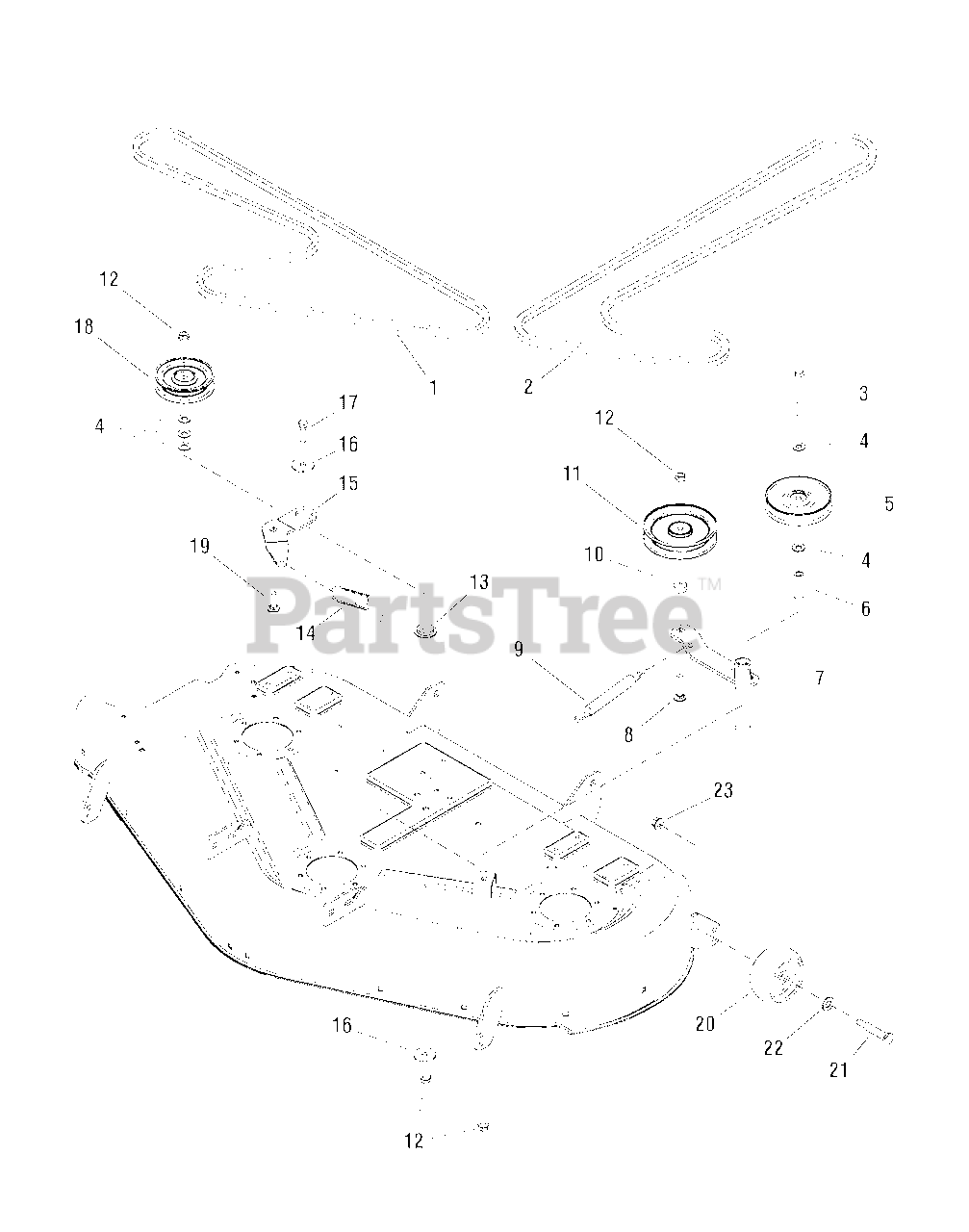

50" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Snapper 1732204SM

V-BELT, Arbor Drive, 91.1 Kevlar

Note: (Used on 50" Models)

$56.99

$

In Stock, Qty 18

0

2

Snapper 1734131SM

V-BELT, P.T.O. Drive, 73.24 A-Wedge

Note: (Used on 50" Models)

$55.99

$

In Stock, Qty 8

0

3

Snapper 1922918SM

CAPSCREW, Hex Head, 3/8-16 x 3-1/4, G5
(Superseded to 703874)

$4.49

$

In Stock, Qty 9

0

4

Snapper 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 2101096SM

PULLEY, 4-1/2 OD 3/8 ID .63 Groove

$62.99

$

In Stock, only 2 left!

0

6

Snapper 1657242SM

SPACER

$10.99

$

In Stock, Qty 16

0

7

Snapper 1726814SM

ARM ASSEMBLY, Idler with Bushings
(Superseded to 1726815ASM)

$117.99

$

Usually ships in 2-12 days

0

8

Snapper 1931353SM

CARRIAGE BOLT, 3/8-16 x 1-3/4, G5
(Superseded to 703858)

$4.99

$

In Stock, only 3 left!

0

9

Snapper 1714062SM

SPRING, Extension

$

$

Not available

10

Snapper 1667811SM

SPACER, Powdered Metal

$3.99

$

In Stock, Qty 16

0

11

Snapper 2171247SM

PULLEY, Idler Flat

$53.99

$

In Stock, Qty 16

0

12

Snapper 1960339SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

13

Snapper 1714255SM

SPACER, Idler Powdered Metal

$6.99

$

In Stock, Qty 17

0

14

Snapper 1656936SM

SPRING, Extension

$10.99

$

In Stock, Qty 20+

0

15

Snapper 1733465ASM

ARM, Idler

$67.99

$

In Stock, only 1 left!

0

16

Snapper 1924356SM

WASHER, Flat, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, G5
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

18

Snapper 1724387SM

PULLEY, Idler

$36.99

$

In Stock, Qty 14

0

19

Snapper 1931337SM

CARRIAGE BOLT, 3/8-16 x 1-1/4, G5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

20

Snapper 1714760SM

GAUGE WHEEL

$6.99

$

In Stock, Qty 20+

0

21

Snapper 2108765SM

BOLT, Wheel, 3/8-16 x 2.781

$6.49

$

In Stock, Qty 20+

0

22

Snapper 1960170SM

WASHER, Flat, 1/2
(Superseded to 703853)

$5.49

$

In Stock, Qty 20+

0

23

Snapper 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0
