1512 (144-882-100) - Cub Cadet Garden Tractor Air Cleaner Components Parts Diagram

Garden Tractor

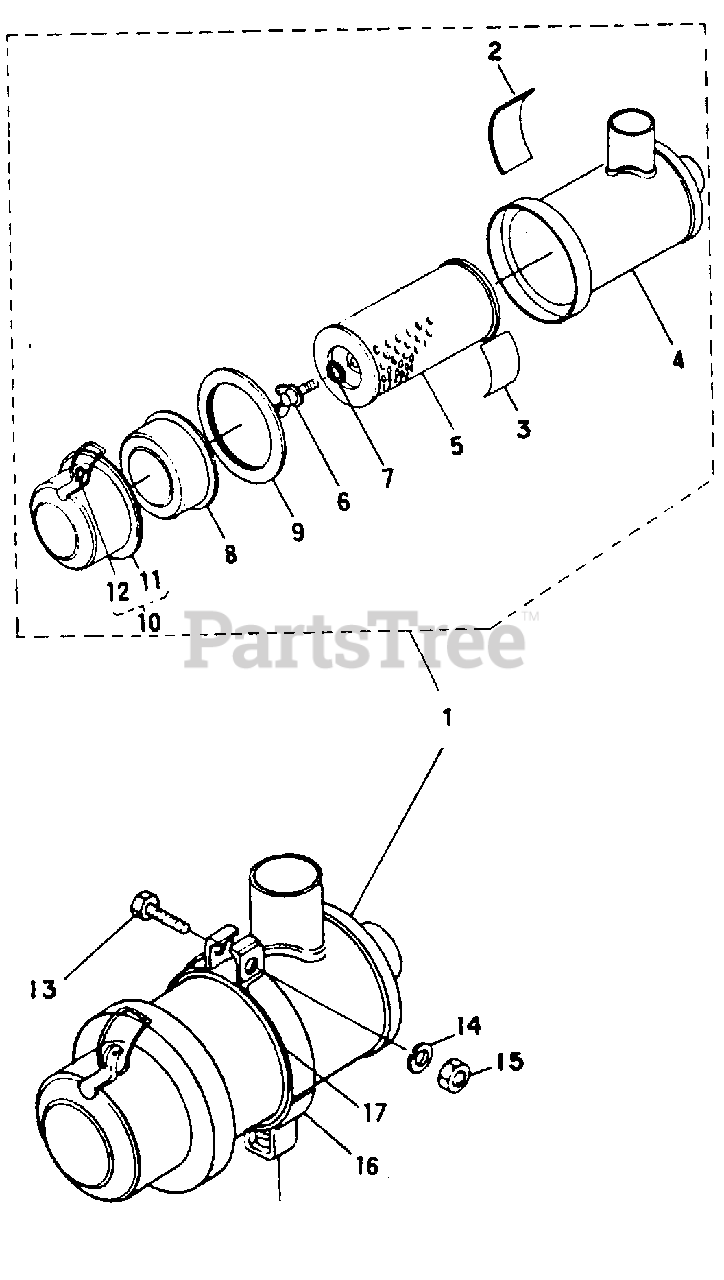

Air Cleaner Components Parts Diagram

  • Title

1

Cub Cadet KB-15372-11010

Cleaner Assy, Air

Note: (Includes Ref No. 2 thru 12)

$

$

Not available

2

Label - Not Serviced

$

$

Not available

3

Label - Not Serviced

$

$

Not available

4

Body Assy, Air Cleaner - Not Serviced Separately

$

$

Not available

5

Cub Cadet KB-70000-11221

Element, Air Cleaner

$47.99

$

In Stock, only 1 left!

0

6

Cub Cadet KB-15221-92620

Bolt, Wing

$

$

Not available

7

Cub Cadet KB-15221-94430

Washer

$

$

Not available

8

Cub Cadet KB-15221-11410

Cover

$

$

Not available

9

Cub Cadet KB-15221-11170

Gasket, Air Cleaner Cover

$

$

Not available

10

Cub Cadet KB-15241-11160

Cover, Air Cleaner

Note: (Includes Ref No. 11 & 12)

$

$

Not available

11

Not Serviced Separately

$

$

Not available

12

Not Serviced Separately

$

$

Not available

13

Cub Cadet KB-01222-50830

Bolt, M8 X 30 Pln Class 8.8

$

$

Not available

14

Cub Cadet KB-04512-50080

Washer, 8MM Lock
(Superseded to KB-04512-70080)

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KB-02114-50080

Nut, M8 Class 8

$9.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KB-15371-11252

Band, Air Cleaner

$

$

Not available

17

Cub Cadet KB-15371-11870

Cushion

$

$

Not available
