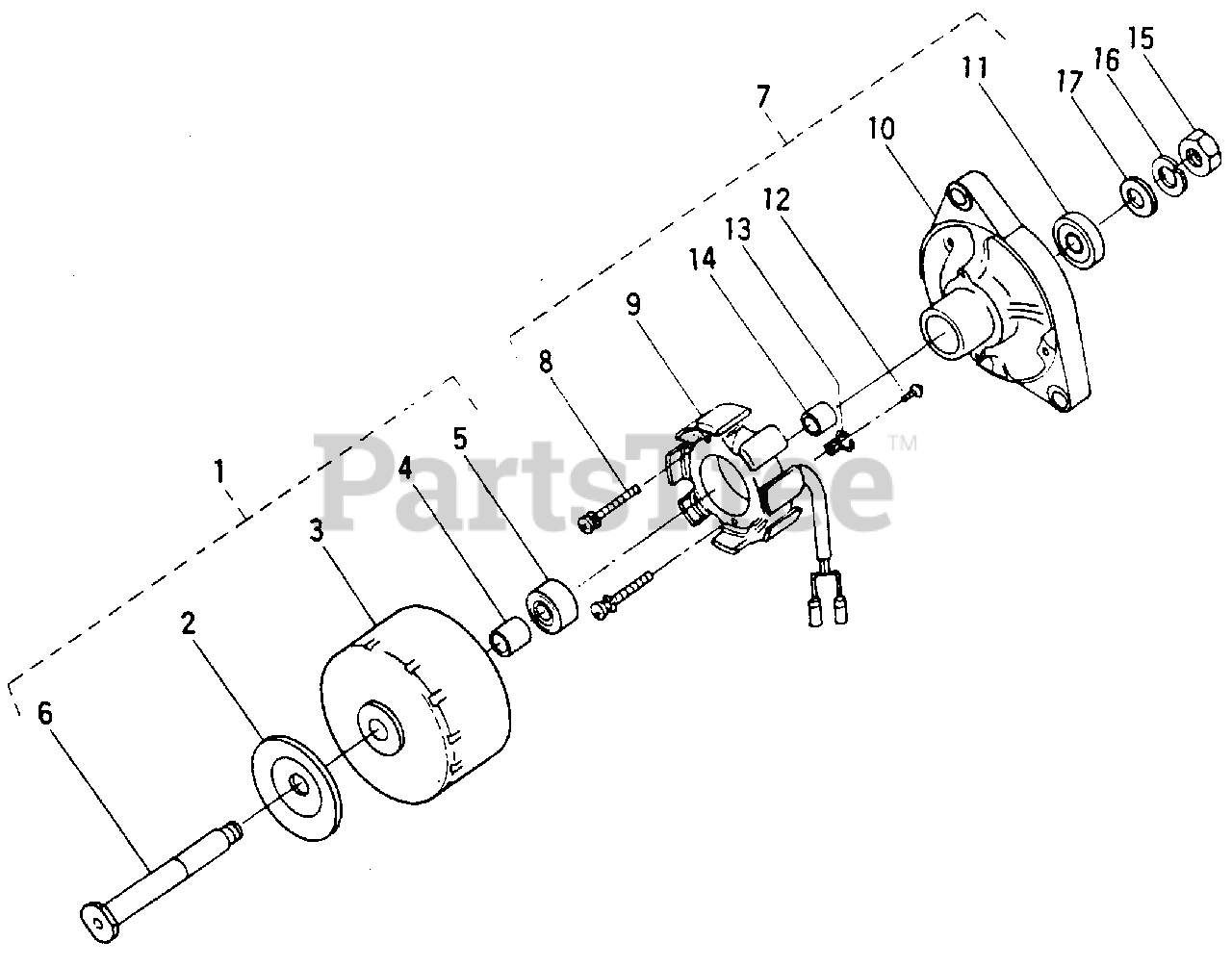

1512 (144-882-100) - Cub Cadet Garden Tractor Alternator Component Parts Diagram

Garden Tractor

Alternator Component Parts Diagram

  • Title

Cub Cadet KB-15531-64013

Alternator Assy
(Superseded to KB-15531-64017)

$591.99

$

Usually ships in 3-6 days

0

1

Cub Cadet KB-15531-64120

Rotor Assy

Note: (Includes Ref No. 2 thru 6)

$

$

Not available

2

Cub Cadet KB-15531-64110

Pulley

$

$

Not available

3

Cub Cadet KB-15531-64040

Rotor

$

$

Not available

4

Cub Cadet KB-15261-64140

Collar

$

$

Not available

5

Cub Cadet KB-08121-06201

Bearing, Ball

$

$

Not available

6

Cub Cadet KB-15531-74140

Shaft, Fan

$

$

Not available

7

Cub Cadet KB-15531-64362

Stator Assy

Note: (Includes Ref No. 8 thru 14)

$

$

Not available

8

Cub Cadet KB-15261-93010

Screw, Round Head

$

$

Not available

9

Cub Cadet KB-15531-64292

Stator

$212.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KB-15531-64072

Plate

$

$

Not available

11

Cub Cadet KB-08121-06201

Bearing, Ball

$

$

Not available

12

Cub Cadet KB-15531-93010

Screw, Round Head

$

$

Not available

13

Cub Cadet KB-15531-64190

Clamp, Cord

$

$

Currently unavailable

14

Cub Cadet KB-15261-64150

Collar

$

$

Not available

15

Cub Cadet KB-15261-92030

Nut

$

$

Not available

16

Cub Cadet KB-15261-94070

Washer, Spring

$

$

Not available

17

Cub Cadet KB-15261-94020

Washer, Plain

$

$

Not available
