1512 (144-882-399) - Cub Cadet Garden Tractor Head Cover Parts Diagram

Garden Tractor

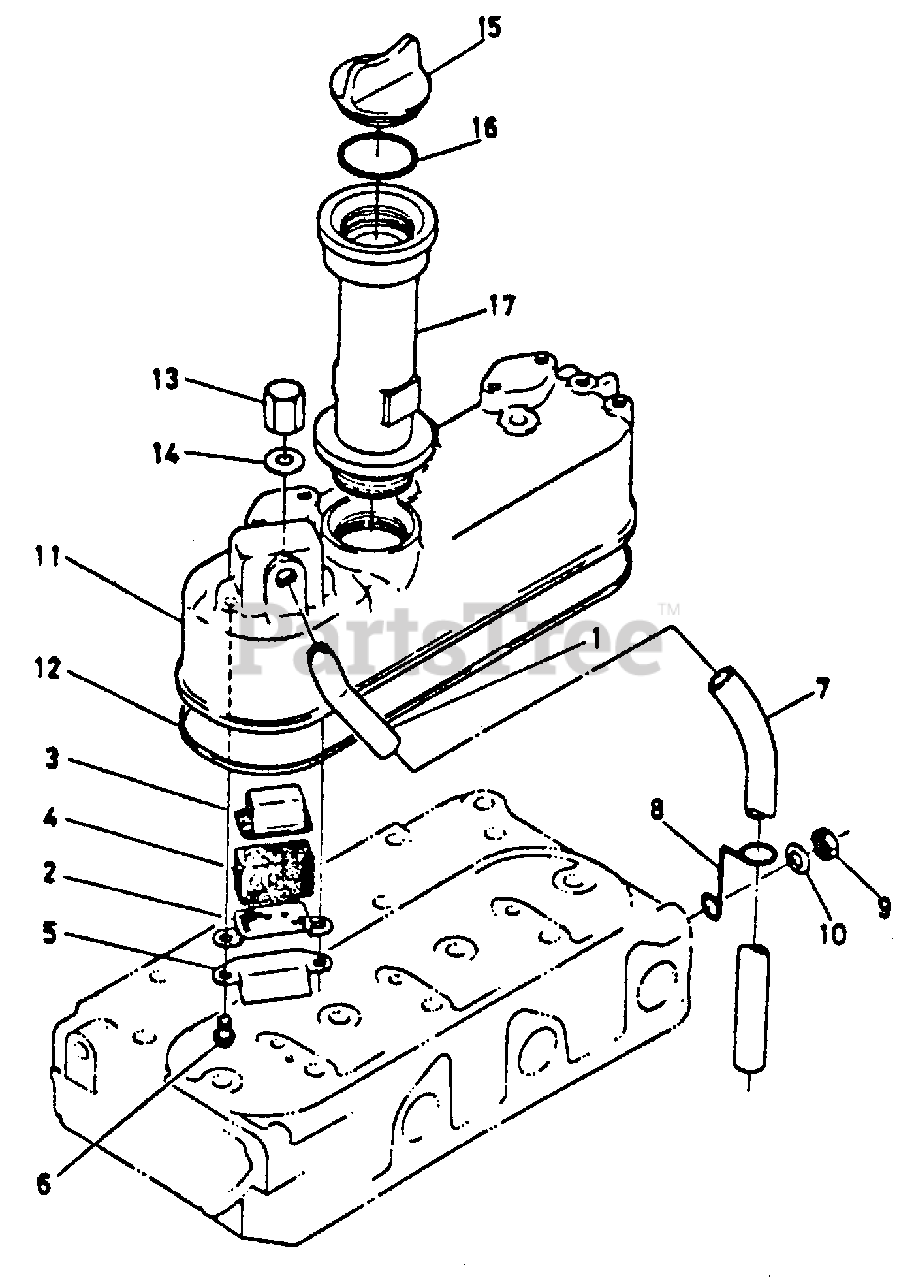

Head Cover Parts Diagram

  • Title

1

Cub Cadet KB-15841-05550

Joint, Breather Pipe

$

$

Not available

2

Cub Cadet KB-15841-05140

Plate, Breather Element 1

$

$

Not available

3

Cub Cadet KB-15841-05150

Plate, Breather Element 2

$

$

Not available

4

Cub Cadet KB-15841-05670

Element, Breather

$

$

Not available

5

Cub Cadet KB-15841-05370

Shield, Breather Oil

$

$

Not available

6

Cub Cadet KB-03024-50510

Screw, M5 X 10MM Class 4.8 P/Hdcr

$

$

Not available

Cub Cadet IH-30264-R1

Washer, 5 MM Lock

$

$

Currently unavailable

7

Cub Cadet KB-15841-05510

Tube, Breather

$

$

Not available

8

Cub Cadet KB-15841-05590

Clamp, Pipe

$

$

Not available

9

Cub Cadet KB-02114-50080

Nut, M8 Class 8

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KB-04013-50080

Washer, 8.8 X 17 X 1.6MM

$

$

Not available

11

Cub Cadet KB-15861-14510

Cover, Head

$

$

Currently unavailable

12

Cub Cadet KB-15841-14520

Gasket, Head Cover

$

$

Not available

13

Cub Cadet KB-15841-14620

Nut, Cap

$

$

Not available

14

Cub Cadet KB-15601-96650

Washer

$

$

Not available

15

Cub Cadet KB-15221-33142

Plug, Filler
(Superseded to KB-E9151-33140)

$23.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KB-04811-50300

O-Ring

$

$

Not available

17

Cub Cadet KB-15224-33110

Extension, Oil Fill

$

$

Not available
