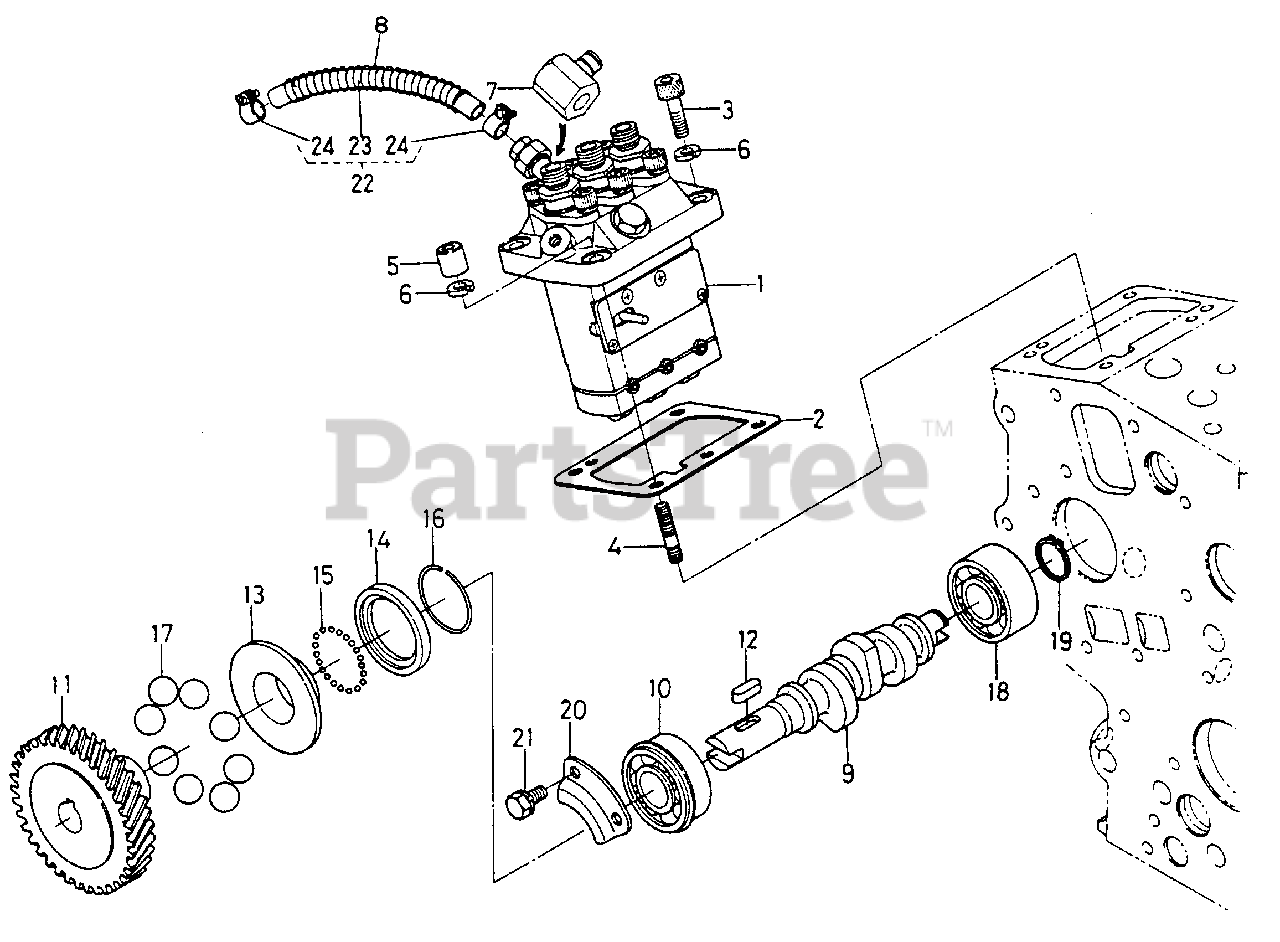

1512 (145-882-100) - Cub Cadet Garden Tractor Fuel Injection Pump & Camshaft Parts Diagram

Garden Tractor

Fuel Injection Pump & Camshaft Parts Diagram

  • Title
1

Cub Cadet KB-15861-51010

Pump, Injection

$

$

Not available

2

Cub Cadet KB-15861-52110

Shim, Injection Pump
(Superseded to KB-16006-52092)

$

$

Not available

3

Cub Cadet KB-01311-10620

Screw, M6 X 20 Pln H/Shd Cap

$

$

Not available

$

$

Currently unavailable

$

$

Not available

6

Cub Cadet KB-04512-50060

Washer, 6MM Lock
(Superseded to KB-04512-70060)

$

$

Not available

$

$

Not available

$

$

Not available

9

Cub Cadet KB-15861-16170

Camshaft, Fuel Injection

$

$

Not available

10

Cub Cadet KB-08153-06203

Bearing, Ball

$

$

Not available

11

Cub Cadet KB-15841-51150

Gear, Injection Pump

$

$

Not available

$

$

Not available

13

Cub Cadet KB-15841-55450

Sleeve, Governor

$

$

Not available

14

Cub Cadet KB-15841-55690

Case, Governor Ball

$

$

Not available

$

$

Not available

16

Cub Cadet KB-15261-55470

Ring, Governor Sleeve Ret

$

$

Not available

17

$

$

Not available

18

Cub Cadet KB-08103-06203

Bearing, Ball

$

$

Not available

19

Cub Cadet KB-04612-00170

Ring, 15.34 MM Ext Ret

$

$

Currently unavailable

20

Cub Cadet KB-15841-16320

Stop, Fuel Camshaft

$

$

Not available

21

Cub Cadet KB-01023-50620

Bolt, M6 X 12 Class 8.8

$

$

Not available

Cub Cadet KB-04512-50060

Washer, 6MM Lock
(Superseded to KB-04512-70060)

$

$

Not available

22

Cub Cadet KB-15841-42010

Pipe Assy, Fuel

$

$

Not available

23

$

$

Not available

$

$

Not available

Cub Cadet KB-15861-16020

Camshaft Assy, Fuel Injection

Note: (Includes Ref No. 9 thru 17)

$

$

Currently unavailable
