1517 (13A-231G100) - Cub Cadet Garden Tractor Engine Accessories Parts Diagram

Garden Tractor

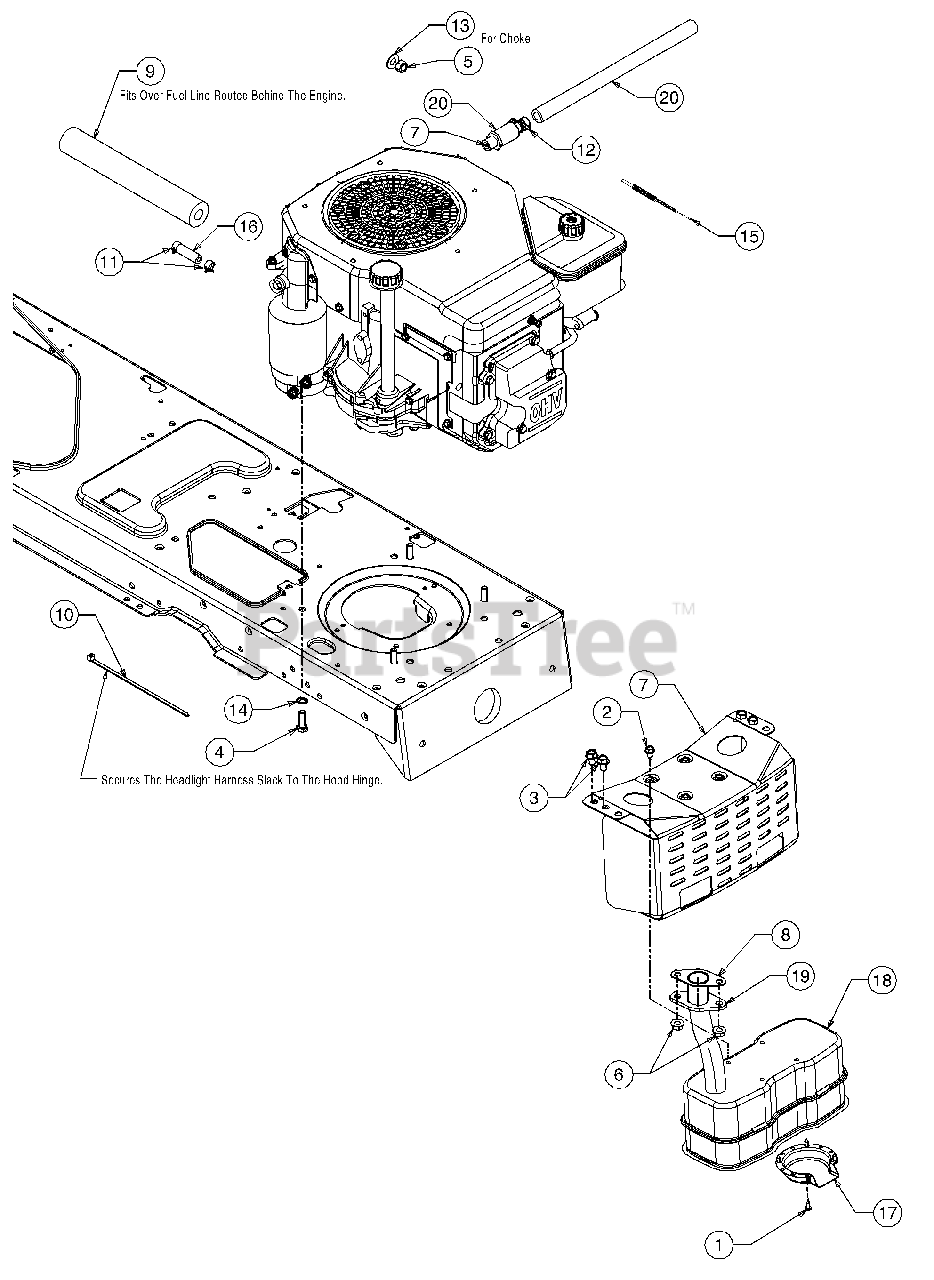

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0604A

Screw, 5/16-18, 0.625

$4.99

$

In Stock, Qty 8

0

4

Cub Cadet 710-3206A

Screw, M8-1.25, 25.0, Gr8.8

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 712-3017

Nut, Hex, 3/8-16, Gr8

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 712-3086

Nut, M8, 1.25-6h, Flange

$4.99

$

In Stock, Qty 5

0

7

Cub Cadet 783-0615B

Shield, Heat, Muffler
(Superseded to 783-0615E-0637)

Variations

783-0615B-0637

Cub Cadet 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$67.99

$

In Stock, only 2 left!

0

$67.99

$

In Stock, only 2 left!

0

8

Cub Cadet 721-0375

Gasket, Exhaust,Kohler Single
(Superseded to KH-12-041-03)

$

$

Not available

9

Cub Cadet 722-0263

Foam, .625 x 1.50 x 10.0 Lg
(Superseded to 723-3066-24)

$17.99

$

In Stock, only 2 left!

0

10

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$4.49

$

In Stock, Qty 15

0

12

Cub Cadet 751-3142

Cap, Oil, Drain

$4.99

$

In Stock, Qty 8

0

13

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.99

$

In Stock, Qty 18

0

14

Cub Cadet 736-0607

Washer, External Lock, 5/16

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 746-1087

Cable, Throttle, 27.4 Lg
(Superseded to 946-1087)

$37.99

$

In Stock, only 1 left!

0

16

Cub Cadet 751-0535

Hose, Fuel Line

$

$

Currently unavailable

17

Cub Cadet 751-0564

Deflector, Muffler
(Superseded to 751-0564B)

$14.99

$

In Stock, only 4 left!

0

18

Cub Cadet 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$158.99

$

In Stock, Qty 9

0

19

Cub Cadet 751-0824

Pipe, Exhaust, Kohler Single

$143.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 19

0

?21

Cub Cadet 751-3141

Hose, Extension, Oil Drain
(Superseded to 751-3141-14)

$12.99

$

In Stock, only 4 left!

0
