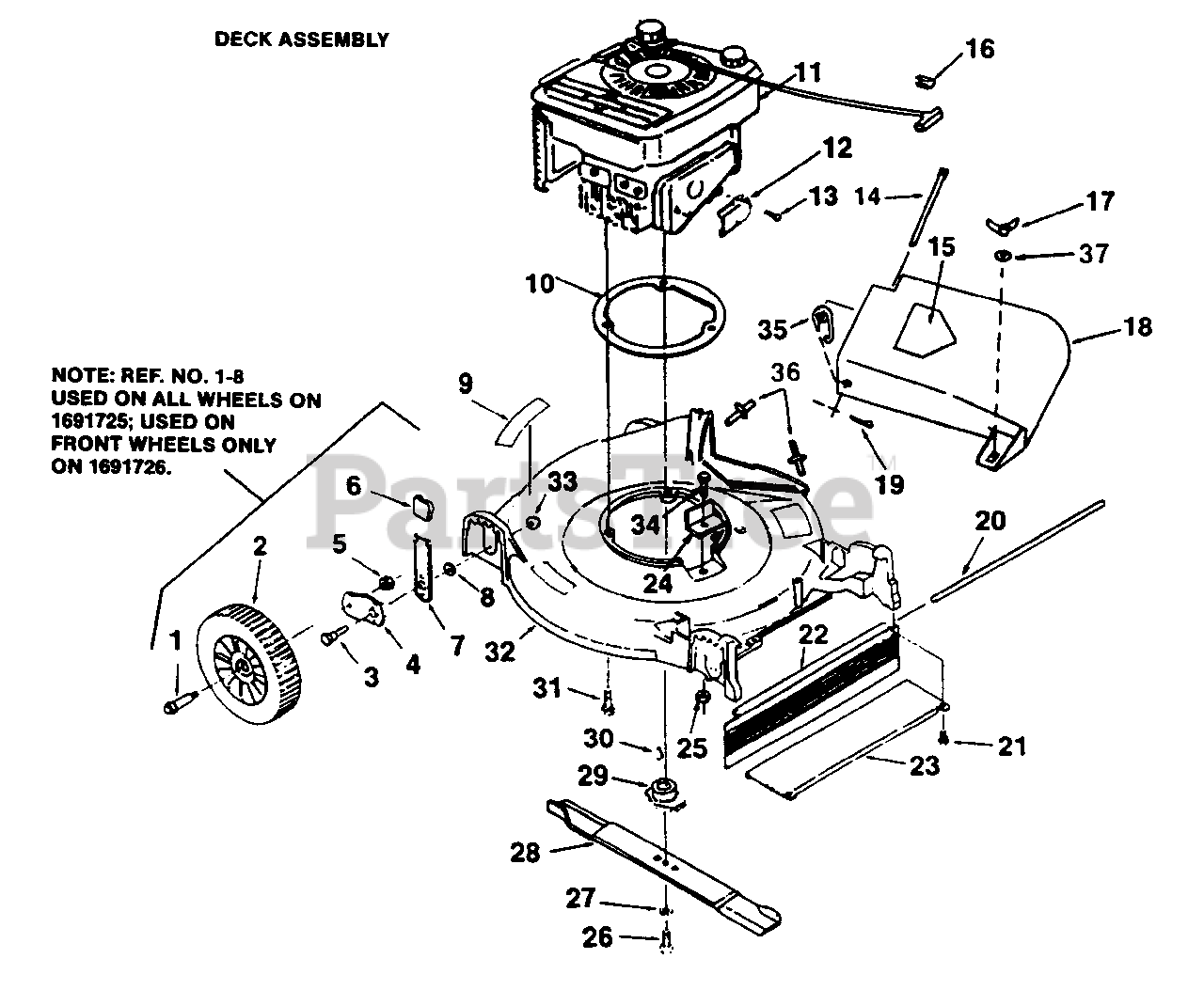

1520 PP (1691726) - Simplicity Walk-Behind Mower Engine & Mower Deck Group Parts Diagram

Walk-Behind Mower

Engine & Mower Deck Group Parts Diagram

  • Title

1

Simplicity 1612462

BOLT & NUT ASSY. (Incl. Ref. No. 5)

$

$

Not available

2

Simplicity 1612423

WHEEL & TIRE (Qty. 2, Mfg. No. 1691726)

$

$

Not available

3

Simplicity 1612235

BOLT, Hex Hd., 5/16-18 (Qty. 2, Mfg. No. 1691726)

$

$

Not available

4

Simplicity 1612346

ARM, Wheel Adjusting (Qty. 2, Mfg. No. 1691726)

$

$

Not available

5

Simplicity 1960251SM

NUT, Hex, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 1612215

KNOB

$

$

Not available

7

Simplicity 1612305

SPRING

$

$

Not available

8

Simplicity 1612225

SPACER

$

$

Not available

9

Simplicity 1612183

DECAL, 20"

$

$

Not available

10

Simplicity 1612410

RING, Engine

$

$

Not available

11

ENGINE, 3.5 HP, Briggs & Stratton, Model 121702, Type 3135-01

$

$

Not available

12

Simplicity 1612236

DEFLECTOR

$

$

Not available

13

Simplicity 1934940SM

SCREW, Hex Hd., 8-32 x 3/8"

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1612386

PIN, Hinge

$

$

Not available

15

Simplicity 1612219

DECAL, Warning

$

$

Not available

16

Simplicity 1612319

ROPE STOP

$

$

Not available

17

Simplicity 2860293SM

NUT, Wing

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 1612391

CHUTE & LATCH ASSY.

$

$

Not available

19

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4"
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1612244

ROD

$

$

Not available

21

Simplicity 1925592SM

SCREW, Hex Washer
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 1612217

FLAP, Drag

$

$

Not available

23

Simplicity 1612218

COVER, Rear (Mfg. No.1691725 Only)

$

$

Not available

24

Simplicity 1612345

COVER, Belt Opening (Mfg. No. 1691725 Only)

$

$

Not available

25

Simplicity 1923358SM

NUT, Hex, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

26

Simplicity 2827008SM

SCREW, Hex Hd., 3/8-24 x 1"

$2.99

$

Usually ships in 2-12 days

0

27

Simplicity 1916965SM

WASHER, Lock, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

28

Simplicity 1612154SM

BLADE

$

$

Not available

29

Simplicity 1612356

ADAPTOR

$

$

Not available

30

Simplicity 2818312SM

KEY
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

31

Simplicity 1930598SM

SCREW, Hex Hd., 3/8-16 x 1-1/2"
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

32

Simplicity 1612414

DECK (Mfg. No. 1691725)

$

$

Not available

32

Simplicity 1612415

DECK (Mfg. No. 1691726)

$

$

Not available

33

Simplicity 1935048SM

NUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1921958SM

SCREW, Hex Hd., 1/4-20 x 1/2" (Mfg. No. 1691725 Only)

$3.99

$

Usually ships in 2-12 days

0

35

Simplicity 1612243

SPRING CLIP

$

$

Not available

36

Simplicity 1612387

STUD

$

$

Not available

37

Simplicity 1916955SM

WASHER, Flat, 1/4"

$3.49

$

Usually ships in 2-12 days

0
