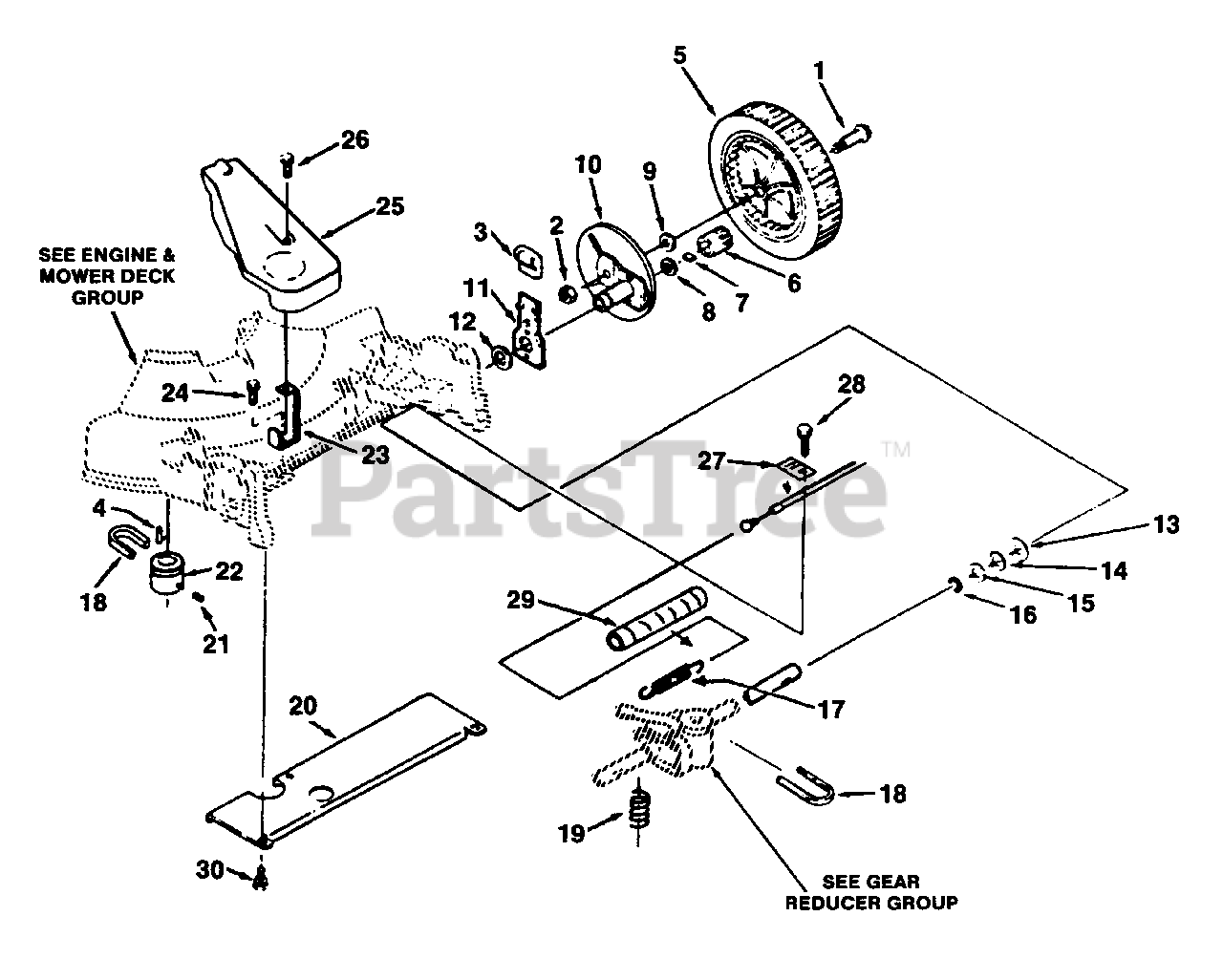

1520 PP (1691726) - Simplicity Walk-Behind Mower Rear Wheel Group Parts Diagram

Walk-Behind Mower

Rear Wheel Group Parts Diagram

  • Title

1

Simplicity 1612385

BOLT

$

$

Not available

2

Simplicity 1935048SM

NUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1612215

KNOB

$

$

Not available

4

Simplicity 2818312SM

KEY
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 1612398

WHEEL & TIRE ASSY.

$

$

Not available

6

Simplicity 1612208

PINION, R.H.

$

$

Not available

6

Simplicity 1612209

PINION, L.H.

$

$

Not available

7

Simplicity 1612213

PAWL

$

$

Not available

8

Simplicity 1612222

WASHER

$

$

Not available

9

Simplicity 1612242

WASHER

$

$

Not available

10

Simplicity 1612304

DRIVE WHEEL SUPPORT ASSY.

$

$

Not available

11

Simplicity 1612347

INDEXING SPRING & PIN ASSY.

$

$

Not available

12

Simplicity 1612228

SPACER

$

$

Not available

13

Simplicity 1612286

WASHER

$

$

Not available

14

Simplicity 2173668SM

WASHER

$9.49

$

In Stock, only 2 left!

0

15

Simplicity 1612214

WASHER, Shim

$

$

Not available

16

Simplicity 1612288

RING, Eaton

$

$

Not available

17

Simplicity 1612246

SPRING, Extension

$

$

Not available

18

Simplicity 1612157

BELT, Drive

$

$

Not available

19

Simplicity 1612239

SPRING, Compression

$

$

Not available

20

Simplicity 1612408

COVER, Rear

$

$

Not available

21

Simplicity 1960348SM

SETSCREW

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 1612392

PULLEY, Drive

$

$

Not available

23

Simplicity 1612412

BRACKET, Gear Box Cover

$

$

Not available

24

Simplicity 1612262

SCREW, Sems Thd., 1/4-20 x 9/16"

$

$

Not available

25

Simplicity 1612334

COVER, Drive

$

$

Not available

26

Simplicity 1925592SM

SCREW, 1/4-20 x 3/4"
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

27

Simplicity 1612326

CLAMP, Cable

$

$

Not available

28

Simplicity 1927429SM

SCREW, 1/4-20 x 5/8"
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

29

Simplicity 1612323

COVER, Spring

$

$

Not available

30

Simplicity 1925592SM

SCREW, Hex Hd.,1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0
