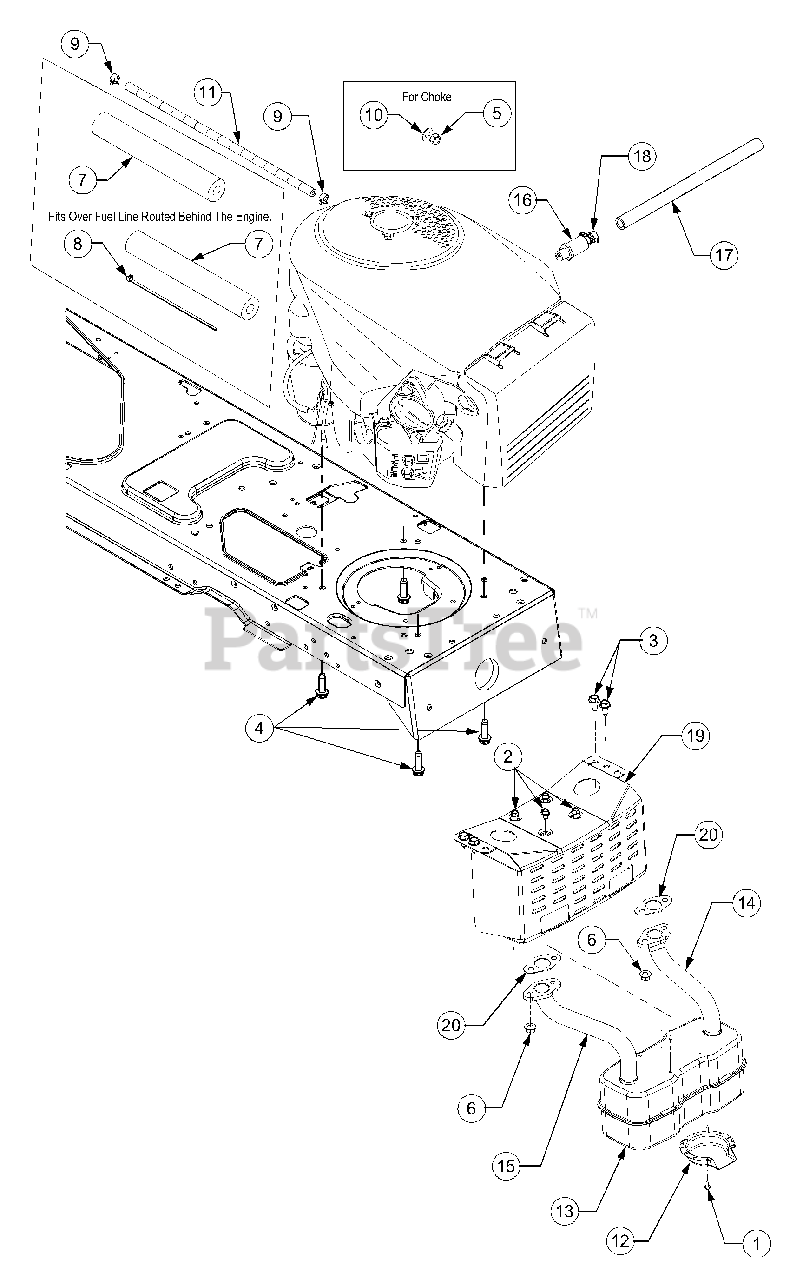

1525 (13A-221F100) - Cub Cadet Garden Tractor Engine Accessories Parts Diagram

Garden Tractor

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

Screw, Hx. Wash. Hd. Tapp 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1315

Screw, Hx. Wash. Hd. Tapp 3/8-16 x

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3017

Nut, Hex, 3/8-16, Gr8

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3086

Nut, M8, 1.25-6h, Flange

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 722-0263

Foam, .625 x 1.50 x 10.0 Lg
(Superseded to 723-3066-24)

$15.99

$

In Stock, only 4 left!

0

8

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

9

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 751-0535

Hose, Fuel Line

$

$

Currently unavailable

12

Cub Cadet 751-0564

Deflector, Muffler
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

13

Cub Cadet 751-0805

Muffler, Dual Inlet
(Superseded to 951-0805A)

$114.99

$

In Stock, only 3 left!

0

14

Cub Cadet 751-2100

Pipe, Exhaust, LH

$

$

Currently unavailable

15

Cub Cadet 751-2101

Pipe, Exhaust, RH

$

$

Currently unavailable

16

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

17

Cub Cadet 751-3141

Hose, Extension, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

18

Cub Cadet 751-3142

Cap, Oil, Drain

$4.49

$

In Stock, Qty 7

0

19

Cub Cadet 783-0615B

Shield, Heat, Muffler
(Superseded to 783-0615E-0637)

Variations

Cub Cadet 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$59.99

$

In Stock, only 4 left!

0

$59.99

$

In Stock, only 4 left!

0

20

Cub Cadet KM-11060-7021

Gasket, Exhaust

$2.49

$

In Stock, Qty 20+

0

$

$
