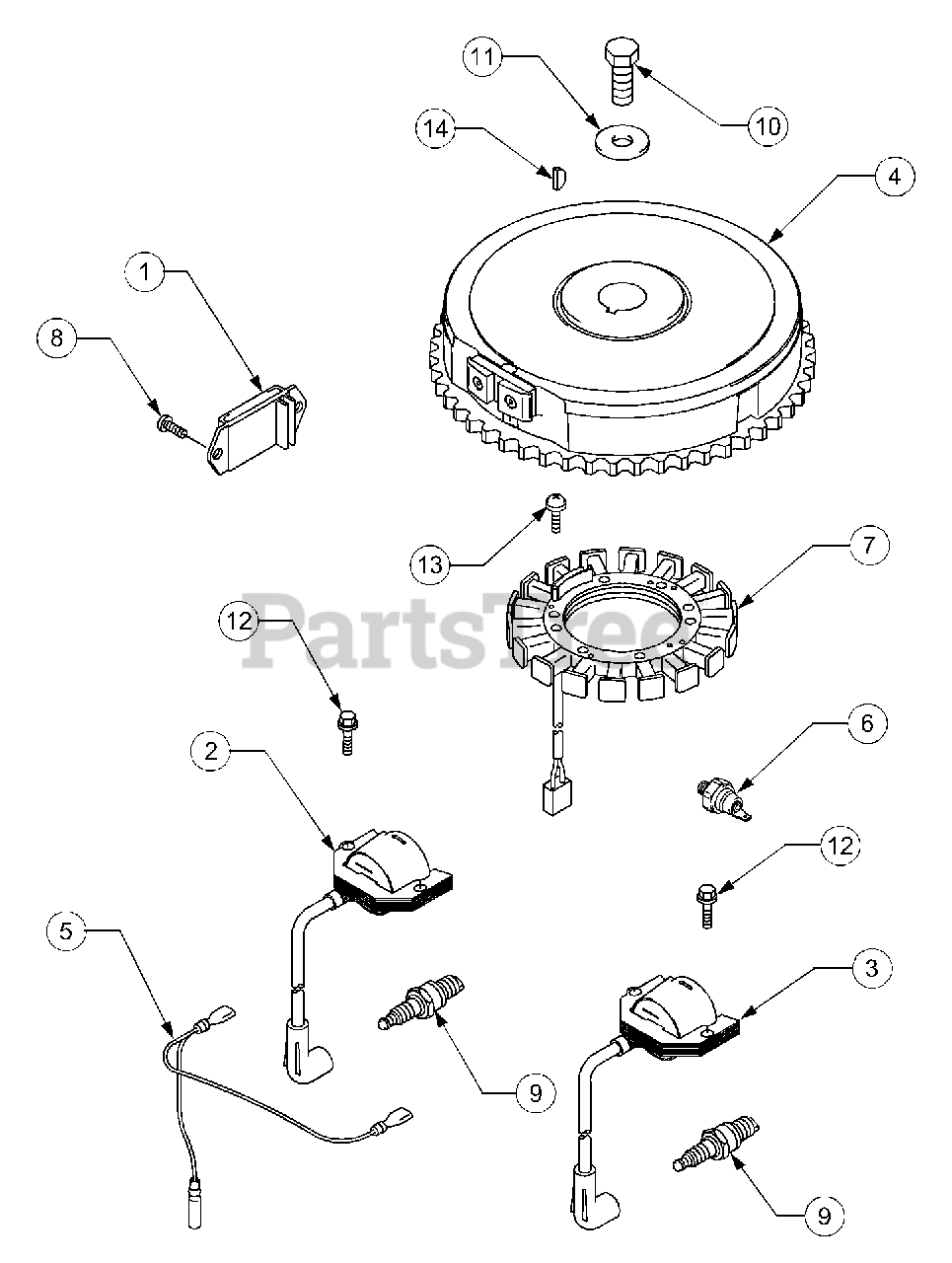

1525 (13A-221F100) - Cub Cadet Garden Tractor Engine Electrical/Ignition Parts Diagram

Garden Tractor

Engine Electrical/Ignition Parts Diagram

  • Title

1

Cub Cadet KM-21066-7001

Regulator, Voltage
(Superseded to KM-21066-7011)

$79.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-21171-7007

Coil Assy, Ignition
(Superseded to KM-21171-7034)

$83.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-21171-7008

Coil Assy, Ignition
(Superseded to KM-21171-7035)

$58.99

$

In Stock, Qty 15

0

4

Cub Cadet KM-21193-7016

Flywheel Assy
(Superseded to KM-21193-7048)

$

$

Not available

5

Cub Cadet KM-26030-7001

Harness

$11.99

$

In Stock, Qty 13

0

6

Cub Cadet KM-27010-7002

Switch, Oil Pressure
(Superseded to KM-27010-0818)

$23.99

$

In Stock, Qty 8

0

7

Cub Cadet KM-59031-7001

Coil, Charging
(Superseded to KM-59031-7009)

$133.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 12

0

9

Cub Cadet 759-3331

Plug, Spark - RCJ8Y

$4.99

$

In Stock, Qty 13

0

10

Cub Cadet KM-92151-2097

Bolt, 12x30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92200-7002

Washer

$3.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-130B0620

Bolt, Flanged

$

$

Not available

13

Cub Cadet KM-224B0520

Screw, Pan Hd. Cross
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-510A5100

Key, Woodruff

$3.49

$

In Stock, Qty 20+
