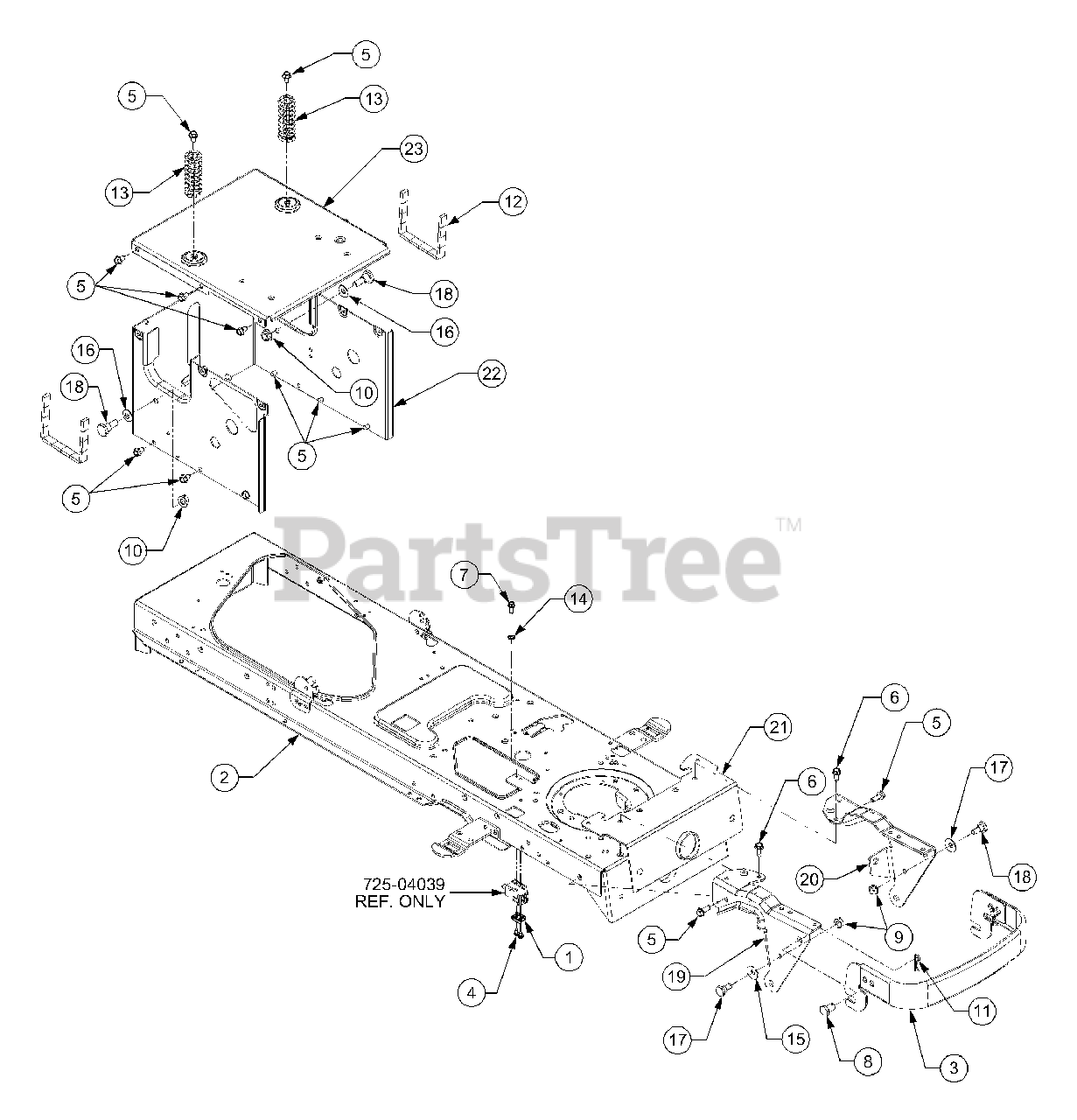

1525 (13A-221F100) - Cub Cadet Garden Tractor Frame Parts Diagram

Garden Tractor

Frame Parts Diagram

  • Title

1

Cub Cadet 17962

Plate, Switch

$4.99

$

In Stock, Qty 5

0

2

Cub Cadet 683-0304A

Frame Assembly, Lower

Variations

Cub Cadet 683-0304A-0637

LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0304A-0650

LOWER FRAME - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-0304A-0665

LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0304A-0691

LOWER FRAME - BLACK JACK (0691)

$

$

Not available

Cub Cadet 683-0304A-0716

LOWER FRAME - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 683-0612

Bumper Assembly

Variations

Cub Cadet 683-0612-0637

Front Bumper - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0612-0716

Front Bumper - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 710-0224

Screw, Hex Wash. Hd. Tapp, 10-16 x .5
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0604A

Screw, Self-tapping, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, 5/16-18, 0.750

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1652

Screw, Hex Wash. Hd. Tapp, 1/4-20 x 0.625

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 711-0332

Pin, Clevis, .50 Dia x .78 Lg
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0459

Nut, Flange Lock, 7/16-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0145

Pin, Click, .092 x 1.64 Lg

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 722-3022

Foam Tape, .625 x .25
(Superseded to 722-3022A-12)

$16.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-04035

Spring, Compression, 1.28 OD x 3.125 Lg

$9.99

$

In Stock, Qty 15

0

14

Cub Cadet 736-0222

Washer, Lock, Ext 1/4

$5.49

$

In Stock, only 3 left!

0

15

Cub Cadet 736-0331

Washer, Bell, .390 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0407

Washer, Bell .45 x 1.00 x .062

$3.99

$

In Stock, Qty 7

0

17

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-1020

Shoulder Screw .625 x .500, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 783-0726B

Bracket, Pivot, Support RH
(Superseded to 783-0726E)

Variations

Cub Cadet 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726B-0637

USE 783-0726E-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726B-0650

USE 783-0726E-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726B-0665

USE 783-0726E-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726B-0691

USE 783-0726E-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

Cub Cadet 783-0727A

Bracket, Pivot, Support LH
(Superseded to 783-0727B)

Variations

Cub Cadet 783-0727A-0606

USE 783-0727D-0606 BRACKET:PI - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727A-0650

USE 783-0727D-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727A-0665

USE 783-0727D-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727A-0691

USE 783-0727D-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 783-0728

Bracket, Pivot, Bar
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 783-1462

Frame, Upper, Cub 1500

Variations

Cub Cadet 783-1462-0716

FRAME ASSEMBLY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

23

Cub Cadet 783-1463

Bracket, Frame, Seat

Variations

Cub Cadet 783-1463-0716

SEAT BASE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

725-04039

Cub Cadet 725-04039

Switch, Screw Mount
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0
