1527 (13A-241G100) - Cub Cadet Garden Tractor Engine Electrical/Ignition Parts Diagram

Garden Tractor

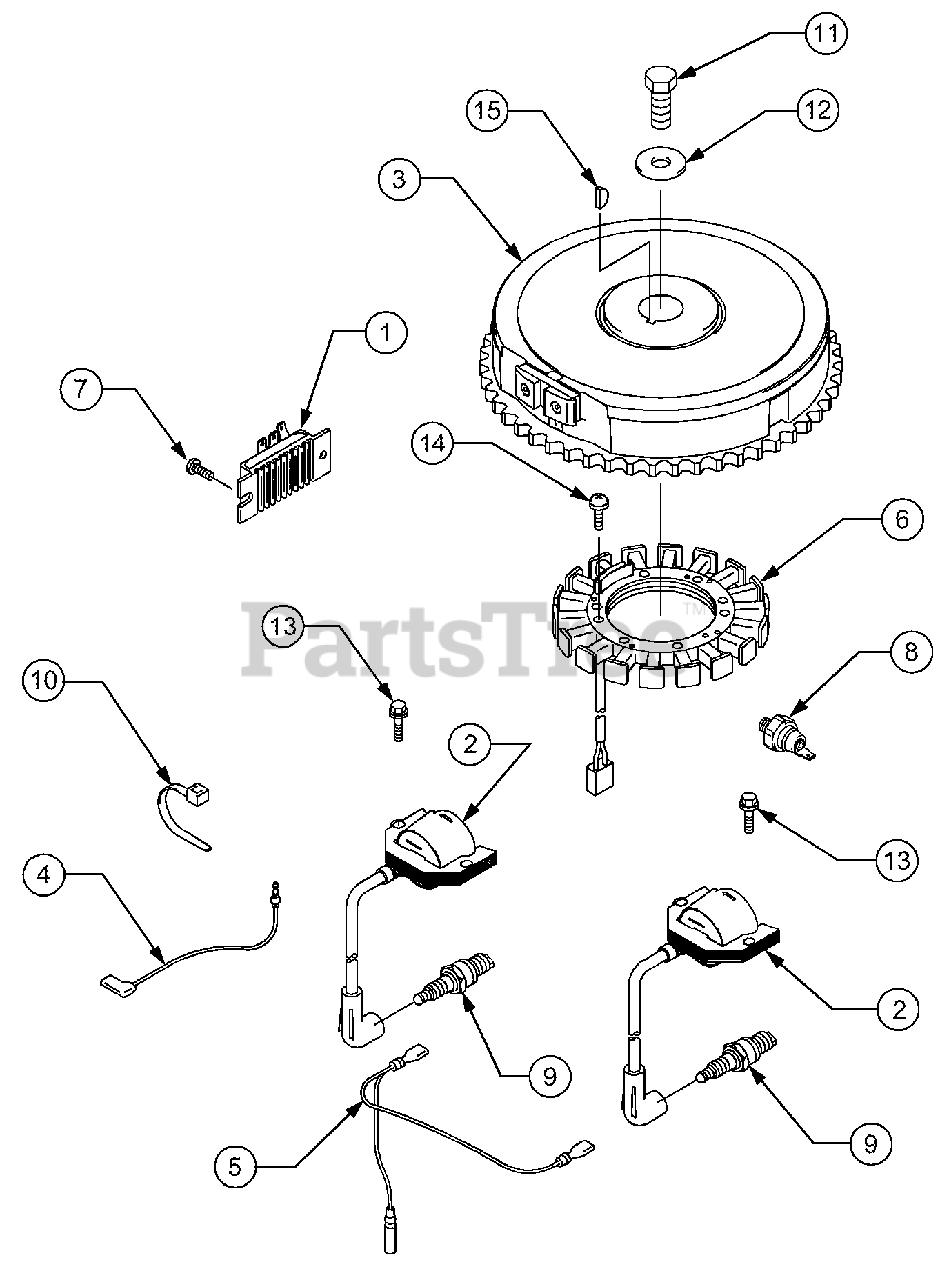

Engine Electrical/Ignition Parts Diagram

  • Title

1

Cub Cadet KM-21066-7011

Regulator, Voltage

$77.99

$

In Stock, Qty 18

0

2

Cub Cadet KM-21171-7007

Coil Assy, Ignition
(Superseded to KM-21171-7034)

$81.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-21193-7007

Flywheel Assy

$

$

Not available

4

Cub Cadet KM-26011-7001

Wire, Lead

$3.99

$

In Stock, Qty 10

0

5

Cub Cadet KM-26030-7001

Harness

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-59031-7001

Coil, Charging
(Superseded to KM-59031-7009)

$128.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

8

Cub Cadet KM-27010-7002

Switch, Oil Pressure
(Superseded to KM-27010-0818)

$23.99

$

In Stock, only 1 left!

0

9

Cub Cadet TC-611049

Plug, Spark - RCJ8Y

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92072-7003

Band

$1.49

$

In Stock, Qty 5

0

11

Cub Cadet KM-92151-2097

Bolt, 12x30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet KM-92200-7002

Washer

$3.49

$

In Stock, only 4 left!

0

13

Cub Cadet KM-130B0620

Bolt, Flanged

$1.49

$

In Stock, Qty 6

0

14

Cub Cadet KM-224B0520

Screw, Pan Hd. Cross
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 16

0

15

Cub Cadet KM-510A5100

Key, Woodruff

$3.49

$

In Stock, Qty 9
