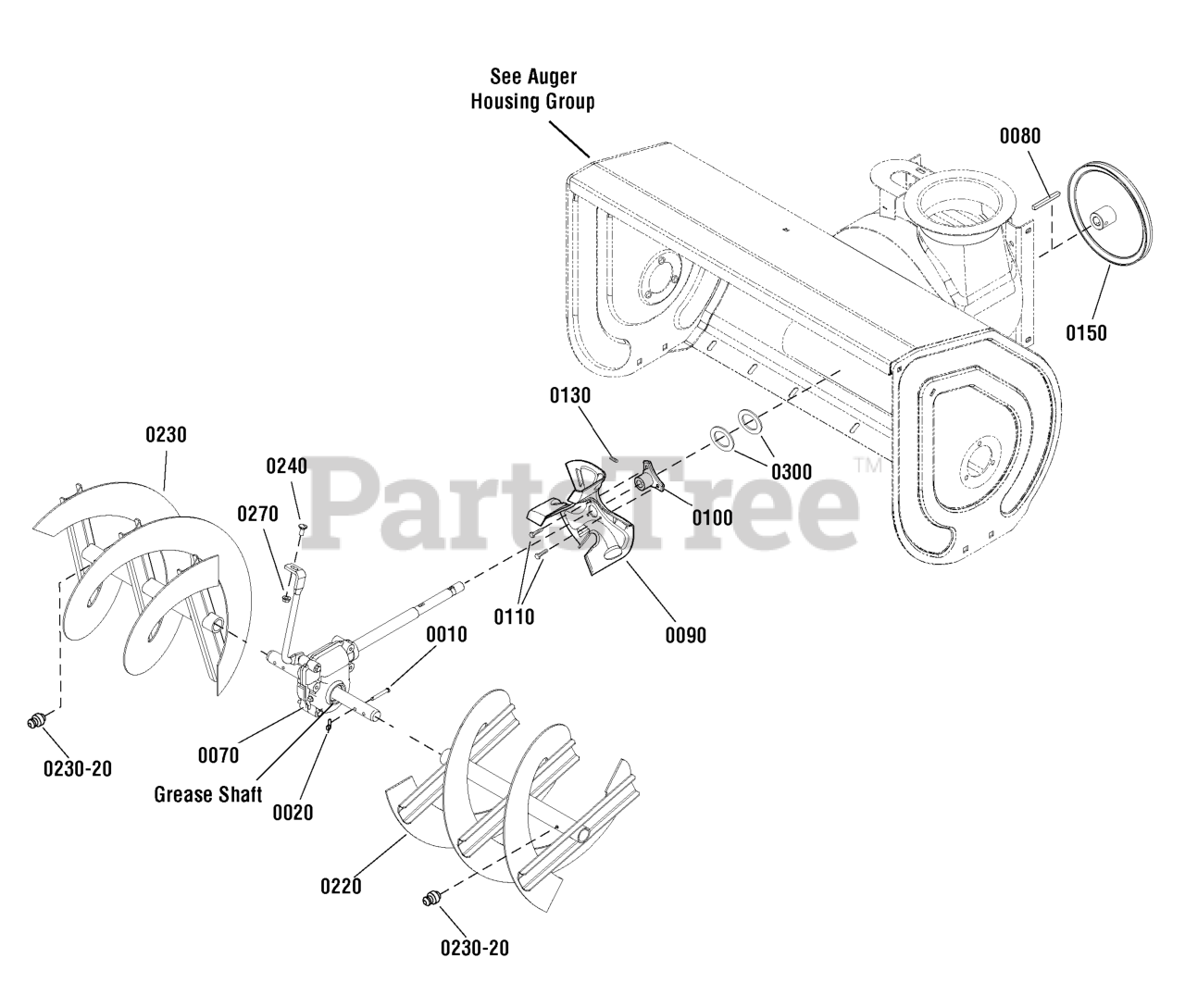

1528 HD (1696157-01) - Briggs & Stratton 28" Snow Thrower, 14.5 Gross TP (2013) Auger Drive Group Parts Diagram

28" Snow Thrower, 14.5 Gross TP

Auger Drive Group Parts Diagram

  • Title

0010

Murray 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0020

Murray 703060

PIN, Cotter, Self Locking

$4.49

$

In Stock, Qty 16

0

0070

Murray 1754690YP

GEAR BOX ASSEMBLY
(Superseded to 1687729)

$542.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Murray 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, only 1 left!

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 1 left!

0

0110

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

0130

Murray 7090848SM

SCREW, Set Square Head, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Murray 1752220YP

PULLEY, Auger

$87.99

$

In Stock, Qty 6

0

0220

Murray 1737079BJYP

AUGER ASSEMBLY, LH

Note: (Includes Ref. No. 0230-20)

$173.99

$

Usually ships in 2-12 days

0

0230

Murray 1737078BJYP

AUGER ASSEMBLY, RH

Note: (Includes Ref. No. 0230-20)

$142.99

$

In Stock, only 1 left!

0

0230-20

Murray 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0270

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0300

Murray 703151

WASHER, .766 ID X 1.06 OD X .07

$3.49

$

In Stock, Qty 17

0

--

Murray 1739821YP

KIT, Shear Pin

Note: (Includes Ref. Nos. 0110 & 0120)

$13.99

$

Usually ships in 2-12 days

0
