1535 (140-641-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Fuel Tank Parts Diagram

Garden Tractor

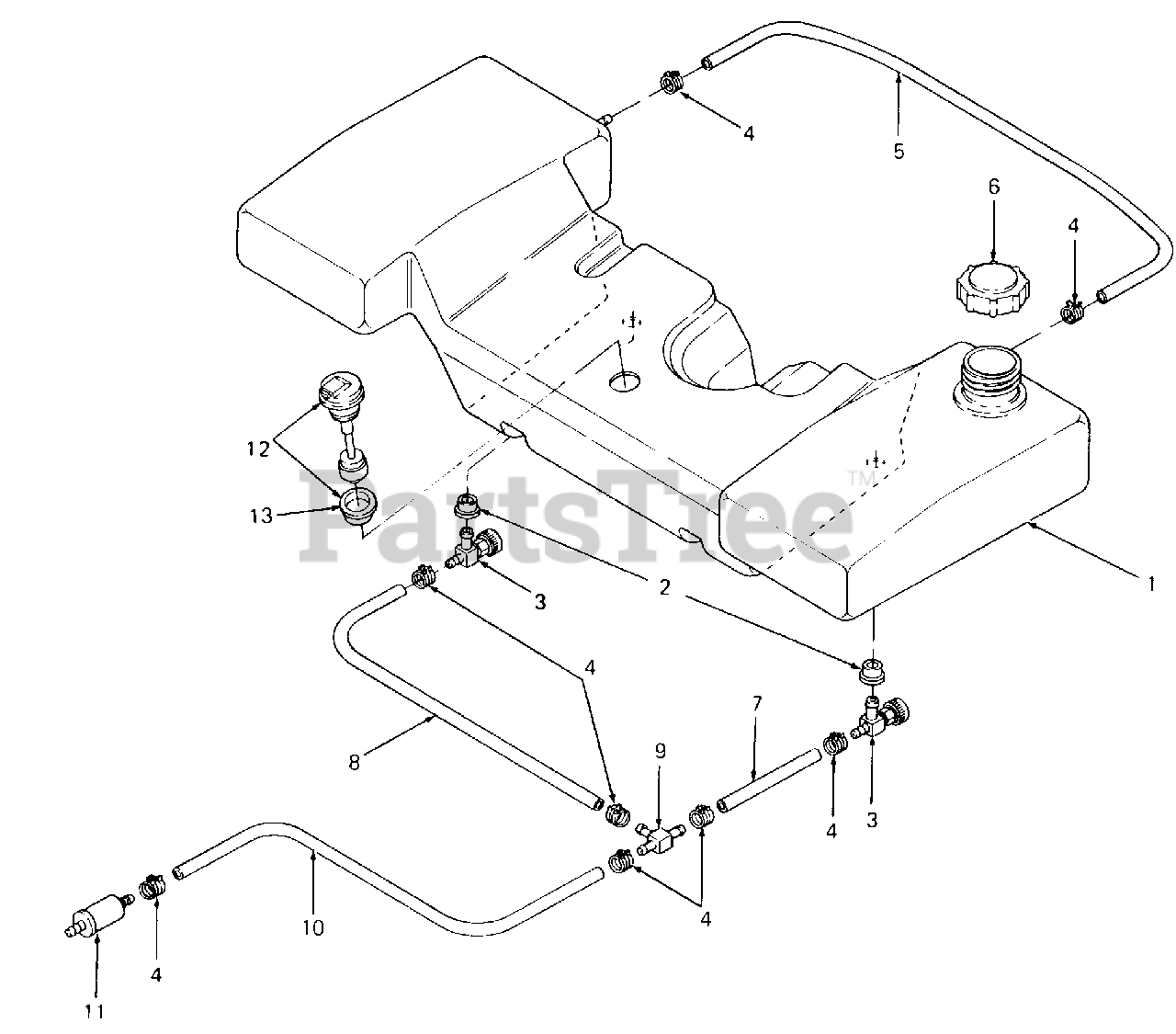

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 751-3079

Tank, Fuel

$

$

Not available

2

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$7.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3085

Valve, Fuel Shutoff

$

$

Not available

4

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 759-3330

Line, Fuel -24" Lg

$59.99

$

In Stock, Qty 5

0

6

Cub Cadet 751-3111

Cap, Fuel
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 723-3003

Gasket, Fuel Cap

Note: (Used w/751-3071)

$

$

Not available

7

Cub Cadet 759-3330

Line, Fuel -5" Lg

$59.99

$

In Stock, Qty 5

0

8

Cub Cadet 759-3330

Line, Fuel -17" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg

$59.99

$

In Stock, Qty 5

0

9

Cub Cadet 751-3096

T-Fitting
(Superseded to 01003473)

$7.49

$

In Stock, only 3 left!

0

10

Cub Cadet 759-3330

Line, Fuel -41" Lg

$59.99

$

In Stock, Qty 5

0

11

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

12

Cub Cadet 751-3082

Sensor, Low Fuel
(Superseded to 951-3082)

$

$

Not available

13

Cub Cadet 759-3616

Bushing, Rubber
(Superseded to 735-0699)

$15.99

$

In Stock, Qty 20+

0
