1535 (140-641-100) - Cub Cadet Garden Tractor (SN: 800000 - 821059) Transmission-Gear Shift Parts Diagram

Garden Tractor

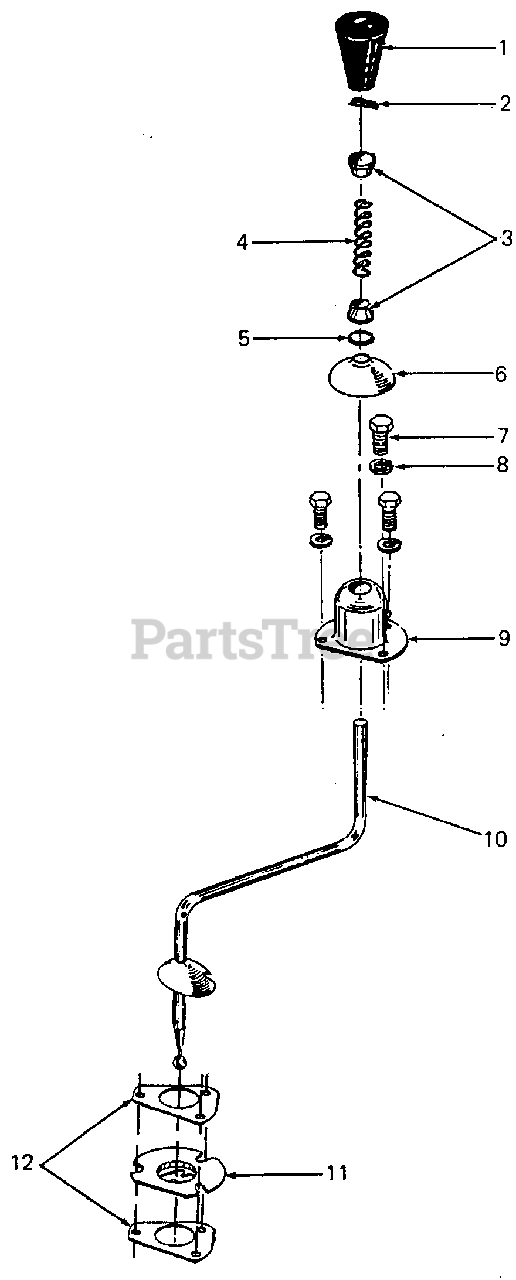

Transmission-Gear Shift Parts Diagram

  • Title

1

Cub Cadet 735-3017

Knob, Shift

$9.49

$

In Stock, only 1 left!

0

2

Cub Cadet 715-0147

Pin, Gear Shift Swivel Retainer

$

$

Not available

3

Cub Cadet 703-0915

Retainer, Gear Shift Swivel Spring

$

$

Not available

4

Cub Cadet 732-3041

Spring, Swivel

$

$

Not available

5

Cub Cadet 721-0184

O-Ring

$

$

Not available

6

Cub Cadet 703-0916

Shield, Gear Shift Lever

$

$

Not available

7

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

9

Cub Cadet 717-3239

Housing Assy, Bell

$

$

Not available

10

Cub Cadet 703-1940

Lever Assy, Shift

$

$

Not available

Cub Cadet 711-3131

Pin, Stop

$17.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-0920

Guide, Shift

$

$

Not available

12

Cub Cadet 721-0189

Gasket, Bell Housing

$

$

Not available
