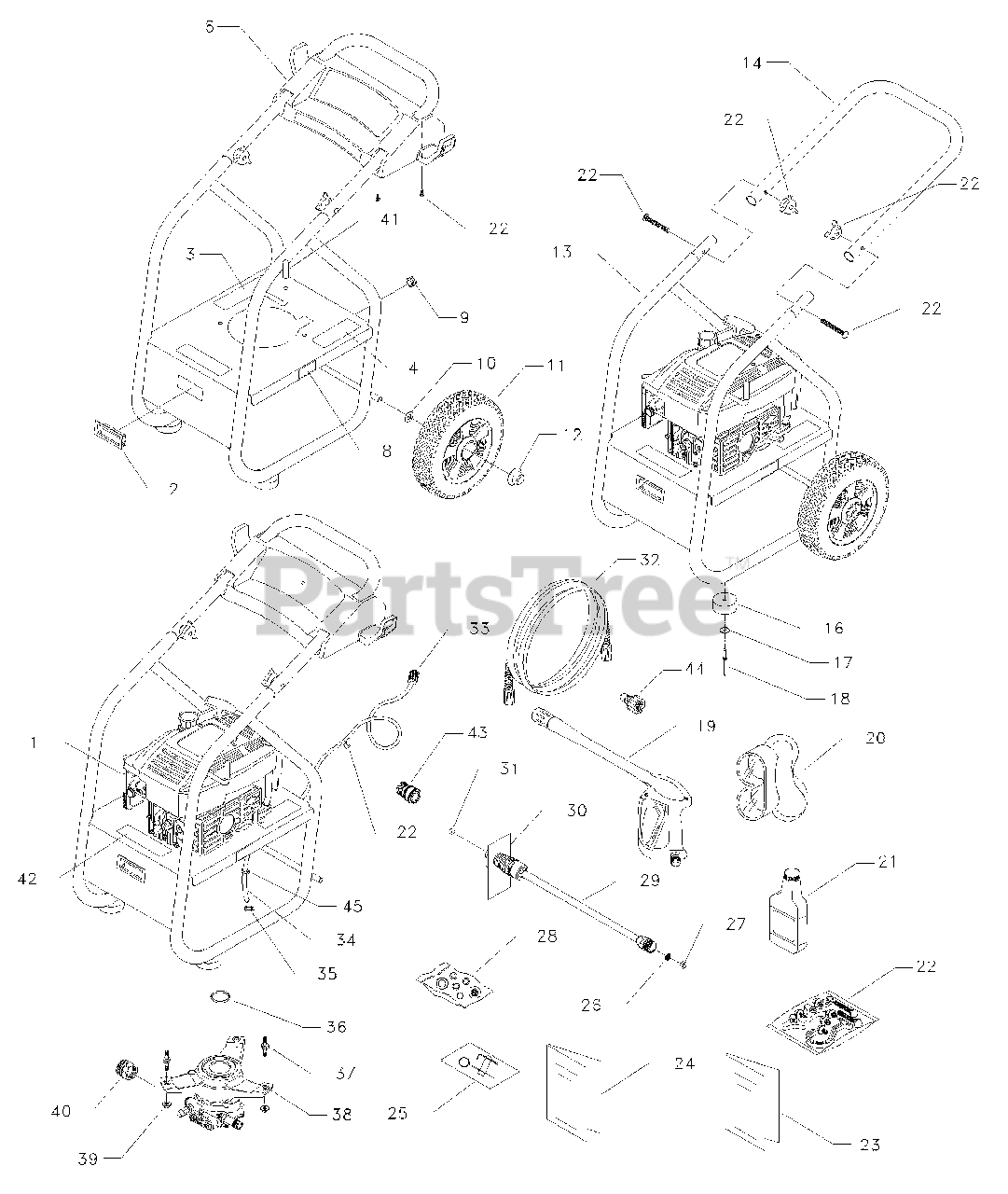

1536-1 - Generac 2,100 PSI Pressure Washer Main Unit Parts Diagram

2,100 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

NSP

ENGINE

$

$

Not available

2

Briggs & Stratton 187878GS

HANDLE, Lift

$6.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187915GS

DECAL, Warning/Decal

$14.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187916GS

DECAL, Start Instructions

$1.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187613GS

DECALS/BILLBOARD, 1536-1

$71.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 187952GS

DECAL, Cool Down

$8.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 30809GS

GROMMET, Chem Hose

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 49808GS

WASHER, M12 Flat

$3.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton B2142GS

TIRE, 2" X 9" Black Mag

$19.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 75402GS

PUSHNUT, 1/2"

$

$

Not available

13

Briggs & Stratton D187619GS

BASE, VSPW

$163.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton D187602GS

HANDLE, PW

$65.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 27007GS

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

17

Briggs & Stratton 71693GS

WASHER, Flat

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 188194GS

RIVET, Blind

$1.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B3263GS

GUN, High Pressure

$93.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton BB3061BGS

OIL, 20oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

22

Briggs & Stratton 187623GS

KIT, Handle Hardware

$13.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 187926GS

MANUAL, Owners

$16.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3356GS

MANUAL, B & S Engine
(Superseded to 380567TRI)

$

$

Not available

25

Briggs & Stratton 188287GS

KIT, Nozzle Cleaning
(Superseded to 191922GS)

$18.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 97837GS

O-RING, Hi - Pressure

$3.49

$

In Stock, Qty 9

0

28

Briggs & Stratton B5830GS

KIT, O-Ring Maintenance

$

$

Not available

29

Briggs & Stratton B3335GS

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 97566GS

HANG TAG, Nozzle

$1.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 21761GS

NOZZLE, 1.05 Yellow Replcmnt

$20.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B5693GS

HOSE, 1/4" X 25'

$

$

Not available

33

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton A1040DGS

HOSE, Chemical
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 48031GGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 98300GS

SEAL, Engine Donut

$11.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton B1735GS

STUD, Double Ended

$3.49

$

Usually ships in 2-12 days

0

38

-----

PUMP, Assembly

Note: (For replacement, order 209940GS)

$

$

Not available

38

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available

39

Briggs & Stratton B1880GS

NUT, M8 with Washer

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 21424GS

CONNECTOR, Garden Hose

$12.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B2516GS

CAP, Vinyl, Black

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 187918GS

DECAL, Quick Reference

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 95518GS

QC, Wand/Accessory
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 95519GS

QC, Wand End
(Superseded to 312981GS)

$39.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 48031BGS

CLAMP, Hose Band

$3.49

$

Usually ships in 2-12 days

0
