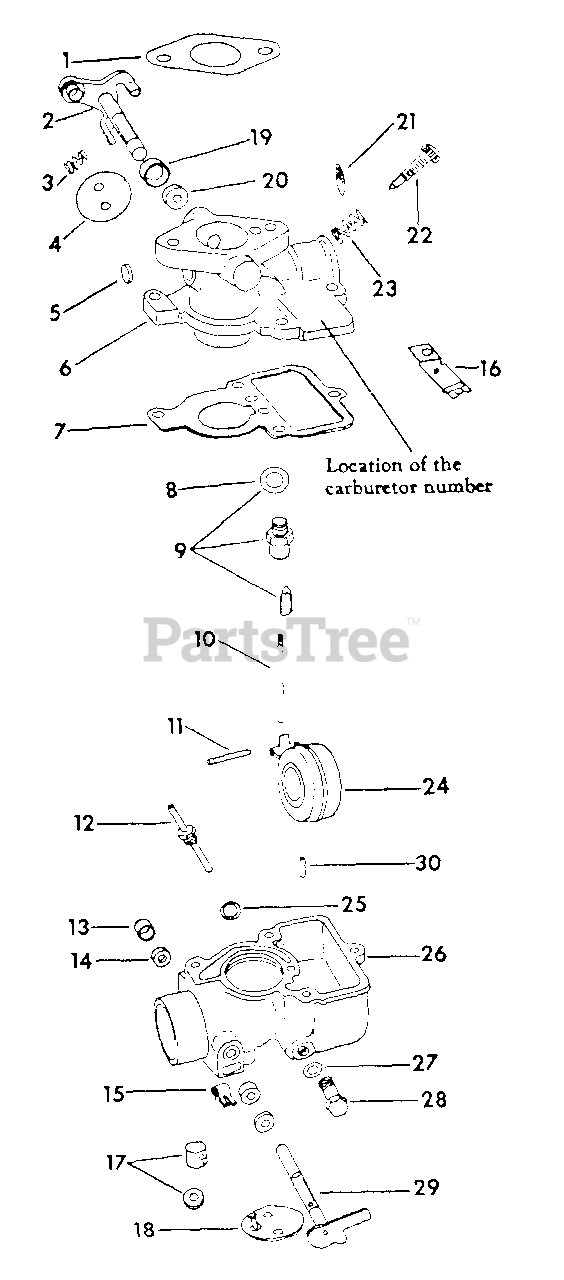

154 - International Harvester Cub Lo-Boy Tractor Carburetor Parts Diagram

Cub Lo-Boy Tractor

Carburetor Parts Diagram

  • Title

Cub Cadet IH-405004-R91

CARBURETOR ASSY, 3/4 UPDRAFT
(Superseded to IH-71523-C94)

$724.99

$

Usually ships in 3-6 days

0

1

Cub Cadet IH-251235-R1

GASKET, CARBURETOR

$

$

Not available

2

Cub Cadet IH-351845-R11

LEVER AND SHAFT ASSY, THROTTLE

$

$

Currently unavailable

3

Cub Cadet IH-251289-R1

SPRING, IDLE SET SCREW RETAINER

$

$

Currently unavailable

4

Cub Cadet IH-251290-R1

BUTTERFLY, THROTTLE

$

$

Currently unavailable

Cub Cadet IH-147754

SCREW, 5-40 X 1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

5

Cub Cadet IH-37417D

PLUG, THROTTLE BODY EXPANSION

$

$

Currently unavailable

6

Cub Cadet IH-355713-R92

BODY ASSY, THROTTLE

$

$

Currently unavailable

Cub Cadet IH-131899

SCREW, 6-32 X 1/2 C-Z SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-26668-R1

SCREW, 10-24 X 9/16 SLT-HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 C-Z REG LOCK
(Superseded to 736-0722)

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-251337-R3

GASKET, FUEL BOWL

$

$

Not available

8

Cub Cadet IH-25948D

GASKET, FLOAT NEEDLE VALVE CAGE

$

$

Not available

9

Cub Cadet IH-251300-R21

CAGE ASSY, FLOAT NEEDLE VALVE

$

$

Not available

10

Cub Cadet IH-251331-R1

TUBE, IDLE

$

$

Not available

11

Cub Cadet IH-251299-R1

PIVOT, FLOAT LEVER

$

$

Currently unavailable

12

Cub Cadet IH-355717-R11

NOZZLE ASSY, DISCHARGE

$

$

Currently unavailable

13

Cub Cadet IH-45148D

RETAINER, STARTING SHUTTER SHAFT DUST

$

$

Not available

14

Cub Cadet IH-45149DA

SEAL, BUTTERFLY SHAFT DUST

$

$

Not available

15

Cub Cadet IH-251308-R1

SPRING, STARTING SHUTTER FRICTION

$

$

Currently unavailable

16

Cub Cadet IH-405052-R1

BRACKET, CHOKE

$

$

Currently unavailable

17

Cub Cadet IH-354263-R91

PACKAGE, DRIP HOLE FILLER REPLACEMENT

$

$

Currently unavailable

18

Cub Cadet IH-251312-R11

SHUTTER ASSY, STARTING

$

$

Currently unavailable

Cub Cadet IH-132622

SCREW, 4-40 X 3/16 SLT-RD-HD C-Z

$

$

Currently unavailable

19

Cub Cadet IH-45148D

RETAINER, BUTTERFLY SHAFT DUST SEAL

$

$

Not available

20

Cub Cadet IH-45149DA

SEAL, STARTING SHUTTER SHAFT DUST

$

$

Not available

21

Cub Cadet IH-251294-R1

SCREEN, STRAINER

$

$

Currently unavailable

22

Cub Cadet IH-351958-R1

SCREW, IDLE ADJUSTING

$

$

Currently unavailable

23

Cub Cadet IH-351959-R1

SPRING, IDLE ADJUSTING SCREW RETAINER

$

$

Not available

24

Cub Cadet IH-251293-R91

FLOAT AND LEVER ASSY

$

$

Currently unavailable

25

Cub Cadet IH-47401D

GASKET, DISCHARGE NOZZLE

$

$

Currently unavailable

26

Cub Cadet IH-406854-R91

BOWL ASSY, FUEL

Note: COMPOSED OF THE FOLLOWING 7 ITEMS

$

$

Currently unavailable

Cub Cadet IH-353575-R1

BLEED

$

$

Currently unavailable

BOWL

$

$

Not available

FILLER

$

$

Not available

PLUG

$

$

Not available

Cub Cadet IH-61142DM

PLUG

$

$

Currently unavailable

Cub Cadet IH-45148D

RETAINER

$

$

Not available

Cub Cadet IH-45149DA

SEAL

$

$

Not available

Cub Cadet IH-444571

PLUG, 1/8-27 AUTO. SQ-HD PIPE

$

$

Currently unavailable

Cub Cadet IH-61142DM

PLUG, STARTING SHUTTER SHAFT HOLE

$

$

Currently unavailable

27

Cub Cadet IH-47401D

GASKET, MAIN METERING JET

$

$

Currently unavailable

28

Cub Cadet IH-404945-R1

JET ASSY, MAIN METERING

$

$

Currently unavailable

29

Cub Cadet IH-405027-R1

SHAFT ASSY, CHOKE VALVE

$

$

Currently unavailable

30

Cub Cadet IH-364761-R1

BLEED, MAIN AIR

$

$

Currently unavailable

Cub Cadet IH-352070-R1

TUBE, DISCHARGE

$

$

Currently unavailable

Cub Cadet IH-354454-R92

PACKAGE, CARBURETOR OVERHAUL

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF SERVICE PACKAGES

$140.99

$

Usually ships in 3-6 days

0
