154 - International Harvester Cub Lo-Boy Tractor Hydraulic Lift - Cub 154 Lo-Boy Tractors (S/N 18708 & Below) Parts Diagram

Cub Lo-Boy Tractor

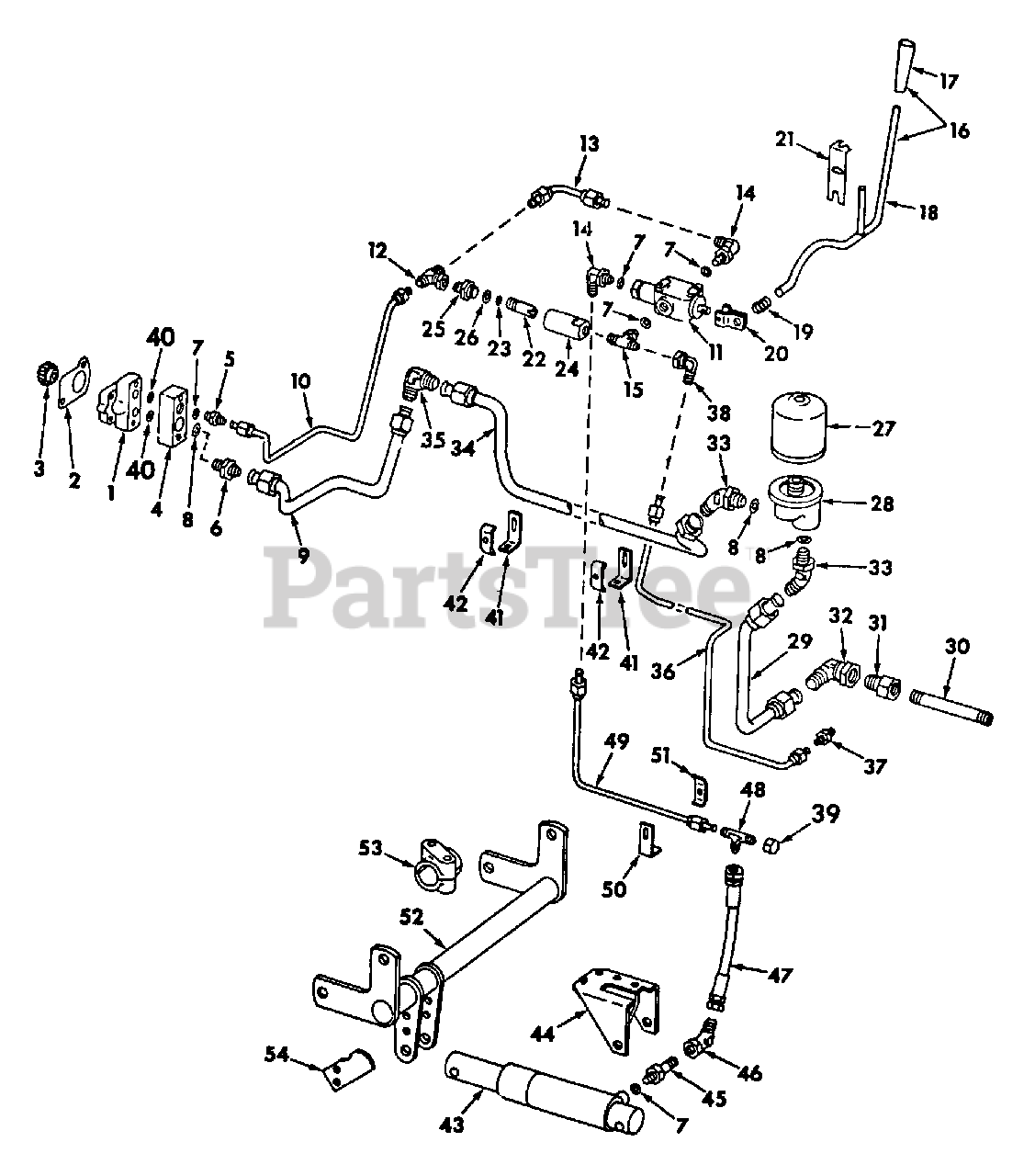

Hydraulic Lift - Cub 154 Lo-Boy Tractors (S/N 18708 & Below) Parts Diagram

  • Title

1

Cub Cadet IH-404870-R91

PUMP ASSY, HYDRAULIC - WARNER MOTIVE

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF HYDRAULIC PUMP

$

$

Currently unavailable

Cub Cadet IH-23683-R1

SCREW, 5/16-18 X 2-1/2 HEX-SKT-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 WED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-351677-R1

GASKET, PUMP

$

$

Not available

3

Cub Cadet IH-352038-R1

GEAR, PUMP DRIVE - 10T

$

$

Currently unavailable

Cub Cadet IH-114494

NUT, 3/8-24 HEX JAM
(Superseded to 912-3001)

$7.49

$

In Stock, Qty 11

0

Cub Cadet IH-115549

WASHER, 3/8 INT-TOOTH LOCK

$

$

Not available

4

Cub Cadet IH-404872-R1

FLANGE, HYD PUMP

$

$

Currently unavailable

Cub Cadet IH-180130

SCREW, 3/8-16 X 2 ZND HEX-HD CAP
(Superseded to 710-3144)

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 11

0

5

Cub Cadet IH-9410202

UNION, 9/16-18 C-Z 37 DEG HYD FLARED TUBE SHORT SWIVEL
(Superseded to 927-3002)

$13.99

$

In Stock, only 2 left!

0

6

Cub Cadet IH-9410205

UNION, 1-1/16-12 C-Z 37 DEG HYD FLARED TUBE SHORT SWIVEL

$

$

Currently unavailable

7

Cub Cadet IH-364839-R1

O-RING, 3/8 OD TUBE
(Superseded to 721-3001)

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet IH-368269-R1

O-RING, 3/4 OD TUBE

$

$

Not available

9

Cub Cadet IH-404873-R1

TUBE ASSY, SUCTION SHORT

$

$

Currently unavailable

10

Cub Cadet IH-404874-R1

TUBE ASSY, PRESSURE LONG

$

$

Currently unavailable

11

Cub Cadet IH-405812-R91

VALVE ASSY, SINGLE ACTING CONTROL

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF SINGLE ACTING CONTROL VALVE

$

$

Currently unavailable

Cub Cadet IH-179827

SCREW, 5/16-18 X 2-1/4 HEX-HD CAP

$

$

Currently unavailable

12

Cub Cadet IH-9410306

TEE, 9/16-18 37 DEG HYD FLARED TUBE 90 DEG SWIVEL

$

$

Currently unavailable

13

Cub Cadet IH-404875-R1

TUBE ASSY, PRESSURE SHORT

$

$

Currently unavailable

14

Cub Cadet IH-9410976

ELBOW, 9/16-18 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG
(Superseded to 727-3012)

$28.99

$

In Stock, only 3 left!

0

15

Cub Cadet IH-9411117

TEE, 9/16-18 37 DEG HYD FLARED TUBE ADJ STR THD

$

$

Currently unavailable

16

Cub Cadet IH-404876-R91

HANDLE W/GRIP, VALVE

$

$

Currently unavailable

17

Cub Cadet IH-391056-R1

GRIP

$

$

Not available

18

Cub Cadet IH-404877-R1

HANDLE ASSY

$

$

Currently unavailable

Cub Cadet IH-Q1597

WASHER, 13/32 X 3/4 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-141405

PIN, 7/64 X 3/4 COT

$

$

Currently unavailable

19

Cub Cadet IH-404880-R1

SPRING, VALVE HANDLE

$

$

Currently unavailable

20

Cub Cadet IH-404881-R1

BAR ASSY, HYD VALVE OPERATING

$

$

Currently unavailable

Cub Cadet IH-527417-R1

PIN, VALVE OPERATING BAR

$

$

Currently unavailable

Cub Cadet IH-103361

PIN, 1/16 X 1/2 COT

$

$

Currently unavailable

21

Cub Cadet IH-404883-R1

LOCATOR, VALVE HANDLE

$

$

Currently unavailable

Cub Cadet IH-22488-R1

SCREW, 1/4-20 X 5/8 CAD HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-21801-R1

WASHER, 9/32 X 3/4 X 16 GA C-Z
(Superseded to 736-0173)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet IH-384444-R91

VALVE ASSY, SAFETY 1500 PSI

$

$

Currently unavailable

23

Cub Cadet IH-702788-R1

O-RING, 3/8 X 9/16 X 3/32 SAFETY VALVE

$

$

Not available

24

Cub Cadet IH-404884-R1

HOUSING, SAFETY VALVE

$

$

Currently unavailable

25

Cub Cadet IH-404885-R1

CONNECTOR, HYD TUBE REDUCING

$

$

Currently unavailable

26

Cub Cadet IH-364885-R1

O-RING, 3/4 X 15/16 X 3/32
(Superseded to 921-3005)

$

$

Not available

27

Cub Cadet IH-404886-R1

FILTER ASSY, HYD OIL-SPIN-ON

$

$

Not available

28

Cub Cadet IH-404887-R1

BASE, HYD OIL FILTER

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

29

Cub Cadet IH-404889-R1

TUBE ASSY, HYD FILTER SUCTION

$

$

Currently unavailable

30

Cub Cadet IH-190716

NIPPLE, 1/2-14 X 6 PIPE

$

$

Currently unavailable

Cub Cadet IH-23174-R1

BUSHING, 3/4-14 X 1/2 14 AUTOMOTIVE REDUCING PIPE

$

$

Currently unavailable

31

Cub Cadet IH-9402750

CONNECTOR, 3/4-14 37 DEG HYD FLARED TUBE INT PIPE THD

$

$

Currently unavailable

32

Cub Cadet IH-9410283

ELBOW, 1-1/16-12 37 DEG HYD FLARED TUBE 90 DEG SWIVEL

$

$

Currently unavailable

33

Cub Cadet IH-9411107

ELBOW, 1-1/16 37 DEG HYD FLARED TUBE 45 DEG ADJ

$

$

Currently unavailable

34

Cub Cadet IH-404890-R1

TUBE ASSY, SUCTION LONG

$

$

Currently unavailable

35

Cub Cadet IH-9402945

ELBOW, 1-1/16-12 37 DEG HYD FLARED TUBE 90 DEG UNION

$

$

Currently unavailable

36

Cub Cadet IH-404891-R1

TUBE ASSY, RETURN

$

$

Currently unavailable

37

Cub Cadet IH-9402708

CONNECTOR, 9/16-18 37 DEG HYD FLARED TUBE

$

$

Not available

38

Cub Cadet IH-9410280

ELBOW, 9/16-18 37 DEG HYD FLARED TUBE 90 DEG SWIVEL

$

$

Currently unavailable

39

Cub Cadet IH-9403371

CAP, 9/16-18 37 DEG HYD FLARED TUBE

Note: NOT USED ON TRACTORS W/SELECTOR VALVE

$

$

Currently unavailable

40

Cub Cadet IH-606271-C1

O-RING, 5/8 X 13/16 x 3/32 - HYD PUMP FLANGE

$

$

Currently unavailable

41

Cub Cadet IH-404895-R1

SUPPORT, TUBE CLAMP

$

$

Currently unavailable

Cub Cadet IH-18404-R1

BOLT, 1/4 X 5/8 SQ-NK CRG

$

$

Not available

Cub Cadet IH-20244-R1

NUT, 1/4-20 ZNP NYLON INSERT

$

$

Not available

42

Cub Cadet IH-384855-R1

CLAMP, HYD TUBES

$

$

Currently unavailable

Cub Cadet IH-180033

SCREW, 1/4-20 X 1 3/8 ZNP HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-16559-R1

WASHER, 17/64 X 5/8 X 036 C-Z
(Superseded to 936-3020)

$

$

Not available

Cub Cadet IH-20244-R1

NUT, 1/4-20 ZNP NYLON INSERT

$

$

Not available

43

Cub Cadet IH-404897-R91

CYLINDER ASSY, HYD 1-3/4 X 5

Note: OPTIONAL WITH IH-405794-R92

$

$

Currently unavailable

Cub Cadet IH-405794-R92

CYLINDER ASSY, HYD 3/4 X 5 SINGLE ACTING

Note: OPTIONAL WITH IH-404897-R91

$

$

Currently unavailable

44

Cub Cadet IH-404898-R1

BRACKET ASSY, CYL MTG

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 7/8 HEX-HD CAP
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 5

0

Cub Cadet IH-Q3433

PIN, 5/8 X 4-1/4 STD-HD

$

$

Currently unavailable

Cub Cadet IH-103407

PIN, 3/16 X 1 COT.

$

$

Currently unavailable

45

Cub Cadet IH-9410228

UNION, 9/16-18 37 DEG HYD FLARED TUBE LONG

Note: USED W/HOSE IH-404901-R1

$

$

Currently unavailable

46

Cub Cadet IH-9410254

ELBOW, 9/16-18 37 DEG HYD FLARED TUBE 45 DEG SWIVEL

Note: USED W/HOSE IH-404901-R1

$

$

Currently unavailable

47

Cub Cadet IH-404901-R1

HOSE ASSY, HYDRAULIC

Note: ORDER HOSE ASSY IH-529348-R1

$

$

Currently unavailable

Cub Cadet IH-529348-R1

HOSE ASSY, HYDRAULIC

$

$

Not available

48

Cub Cadet IH-9402981

TEE, 9/16-18 37 DEG HYD FLARED TUBE THREE WAY

Note: NOT USED ON TRACTORS W/SELECTOR VALVE

$

$

Currently unavailable

49

Cub Cadet IH-404902-R1

TUBE ASSY, HYDRAULIC CYLINDER

Note: NOT USED ON TRACTORS W/SELECTOR VALVE

$

$

Currently unavailable

50

Cub Cadet IH-404895-R1

SUPPORT, TUBE CLAMP

$

$

Currently unavailable

Cub Cadet IH-18404-R1

BOLT, 1/4 X 5/8 SQ-NK CRG

$

$

Not available

Cub Cadet IH-20244-R1

NUT, 1/4-20 ZNP NYLON INSERT

$

$

Not available

51

Cub Cadet IH-384855-R1

CLAMP, HYD TUBES

$

$

Currently unavailable

Cub Cadet IH-180022

SCREW, 1/4 20 X l ZNP HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-16559-R1

WASHER, 17/64 X 5/8 X .036 C-Z
(Superseded to 936-3020)

$

$

Not available

Cub Cadet IH-20244-R1

NUT, 1/4-20 ZNP NYLON INSERT

$

$

Not available

52

Cub Cadet IH-404904-R2

ROCKSHAFT ASSY

$

$

Currently unavailable

Cub Cadet IH-Q838

PIN, 5/8 X 3-1/4 STD-HD

$

$

Not available

Cub Cadet IH-103407

PIN, 3/16 X 1 COT

$

$

Currently unavailable

53

Cub Cadet IH-404908-R1

BEARING ASSY, ROCKSHAFT

$

$

Currently unavailable

Cub Cadet IH-180191

BOLT, 1/2 X 3-1/4 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-120378

NUT, 1/2 TYPE 5
(Superseded to 912-0206)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-273359

FITTING, 3/16 65 DEG ANGLE DRIVE TYPE LUB

$

$

Not available

54

Cub Cadet IH-404911-R1

BAR, ROCKSHAFT STOP

$

$

Currently unavailable

Cub Cadet IH-179840

SCREW, 3/8-16 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-404912-R1

SCREW, STOP ADJ

$

$

Currently unavailable

Cub Cadet IH-120238

NUT, 1/2-13 C-Z HEX JAM

$

$

Not available
